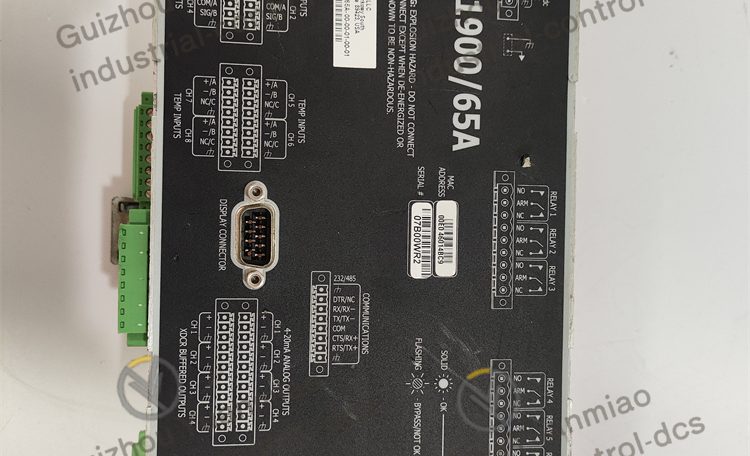

Bentley Monitor 1900/65A
The Bentley 1900/65A monitor is a vibration monitoring device commonly used for condition monitoring of industrial equipment, mainly for vibration measurement and protection of rotating machinery such as steam turbines, compressors, and fans. The following detailed introduction covers core functions, working principle architecture, key process principles, and typical application scenarios:
-
Vibration Parameter Monitoring
Real-time measurement of vibration displacement, velocity, or acceleration in rotating machinery, providing data support for equipment operation status evaluation.
-
Protection and Alarm
After setting thresholds, when vibration values exceed the safe range, alarm or trip signals are output to prevent equipment damage caused by abnormal vibration.
-
Signal Processing and Transmission
Processes raw signals from sensors through amplification, filtering, conversion, etc., and communicates with control systems via interfaces.
- Sensor Type Adaptation
Typically connects eddy current sensors (e.g., Bentley 3300 series) or velocity/acceleration sensors. Eddy current sensors generate analog voltage signals (e.g., -20V to 0V) based on electromagnetic induction, measuring distance changes (i.e., vibration displacement) between the probe and the measured metal surface, with a linear relationship to vibration amplitude.
- Input Signal Characteristics
Faint analog signals (containing vibration displacement, velocity, or acceleration information) from sensors must be transmitted to the monitor via shielded cables to reduce electromagnetic interference.
- Signal Conditioning Module
- Amplification and Filtering
Adjusts sensor signal gain through operational amplifiers (e.g., amplifying millivolt-level signals to volt-level) and uses RC filter circuits or active filters to eliminate high-frequency noise (e.g., clutter from mechanical friction) or low-frequency interference (e.g., power fluctuations), retaining the effective vibration frequency range (e.g., 10Hz to 10kHz).
- Signal Conversion
If the input is a displacement signal (eddy current sensor), it can be converted to velocity or acceleration signals via integration or differentiation circuits to meet different monitoring scenarios (e.g., displacement for shaft vibration monitoring, velocity for bearing fault analysis).
- Measurement and Analysis Circuits
- Peak Detection
Captures real-time peaks (maximum displacement or velocity values) of vibration signals to evaluate whether equipment vibration amplitude exceeds standards.
- Root Mean Square (RMS) Calculation
Performs RMS operations on AC vibration signals through hardware circuits or digital algorithms, reflecting the average level of vibration energy, suitable for long-term trend analysis.
- Frequency Analysis (Optional)
Some models embed FFT (Fast Fourier Transform) algorithms to convert time-domain vibration signals into frequency-domain data, identifying dominant vibration frequencies (e.g., 1x frequency for rotor unbalance, 2x frequency for misalignment) to assist in fault location.
- Threshold Comparison and Alarm Logic
The monitor has preset or user-programmable alarm (Alert) and trip (Trip) thresholds. When processed vibration signals exceed thresholds, internal relays are triggered:
- Alarm Output
Sends early warning signals to PLC or DCS systems via dry contacts (e.g., relay contacts) or analog quantities (e.g., 4-20mA) to indicate potential equipment anomalies.
- Trip Output
If vibration values reach dangerous thresholds, trip signals are immediately output to cut off equipment power or trigger shutdown procedures, preventing fault expansion.
- Output Interface Types
- Analog Output
Such as 0-10V or 4-20mA, used to transmit vibration data to host computers or recorders for continuous monitoring and trend recording.
- Digital Output
Networks with other devices via communication protocols like RS-485 and Modbus, supporting remote monitoring and data sharing.
- Power Module
Input is typically AC 115V/230V or DC 24V, converted by internal voltage regulator circuits to working voltages like DC 15V and DC 5V for each circuit module.
- Self-Test Function
Regularly detects hardware status (e.g., sensor disconnection, circuit faults) via internal diagnostic circuits, outputting fault indication signals when anomalies are found to ensure the monitor’s own operational reliability.
Sensor (eddy current/velocity/acceleration) → Shielded cable transmission → Monitor input interface
↓
Signal conditioning (amplification, filtering, conversion) → Measurement circuit (peak/RMS calculation, frequency analysis)
↓
Threshold comparator (compared with preset alarm/trip values)
↓
|---- Within standard: Analog/digital output to display or control system
|---- Exceeding standard: Relay action (alarm/trip) + status indication (LED light)
- Vibration Monitoring of Rotating Machinery
In steam turbines, eddy current sensors measure radial vibration displacement of the shaft, and the monitor analyzes displacement peaks to determine if shafting has faults such as unbalance, bending, or bearing wear.
- Fault Early Warning Principle
When a rotor is unbalanced, vibration energy concentrates at 1x the rated speed frequency (e.g., 50Hz for a 3000rpm device). The monitor identifies this characteristic frequency through frequency-domain analysis to provide early fault warnings.
- Redundancy Design (Optional)
In some scenarios, multiple 1900/65A monitors form a redundant system, avoiding single-device false alarms through signal cross-validation to improve monitoring reliability.
Compared with basic vibration switches, the core advantages of the 1900/65A lie in:
- Multi-parameter Measurement Capability
Supports conversion and analysis of displacement, velocity, and acceleration vibration parameters across multiple dimensions, rather than single-threshold judgment.
- Depth of Signal Processing
Integrates hardware filtering and simple frequency-domain analysis to initially locate fault types, while ordinary switches only provide on-off logic output.
- Communication and Networking Capability
Supports standard industrial communication protocols, facilitating integration into factory automation systems for centralized data management.
Through the above principle analysis, the Bentley 1900/65A monitor essentially serves as an “intelligent intermediary” converting physical sensor signals into equipment status information. Its working logic spans the entire process of “acquisition-processing-judgment-output,” providing real-time monitoring and protection for the safe operation of industrial equipment.
Functional/technical specifications
Integrated, individually mounted monitor
Continuous monitoring and protection for automatic shutdown applications 4-channel vibration inputs (2-wire and 3-wire speed and acceleration sensors, as well as BentlyNevada eddy current sensors)
Up to 4 variables per channel, with independent integration and filtering control Certain variables have filtering with up to eight poles
24-bit A/D converter, 25 kHz bandwidth
4 channel temperature input CE, “Type K and T thermocouples)
Level 2 alarm – ALERT and DANGER
6 configurable relays with voting logic
Buffer sensor output -4 monitor output, 1 display output
4 configurable 4-20 mA logger outputs, individually applied configuration software receives 18 to 36Vdc power supply; A 110/220Vac external power supply is available
It can be installed with DIN rail brackets or mounted siding
Compact – its dimensions are (inches):
– Monitor :7.75×5.88×2.93
– Display device :7.75×5.03×1.29
– Monitor with display device :7.75×5.88×3.85
Optional fiberglass guard, or steel protective door (for panel mounting) to meet environmental protection installation requirements and IP65
Hazardous area permits to be approved, including CSA(Class 1 Zone 2 – although the monitor cannot be installed in Class 1, it supports sensors installed in Zone 1 through insulation and barriers), ATEX(Zone 2), CE and GOST(IEC Ex)
Channel Configuration: It has four sensor input channels, compatible with various types such as eddy current sensors, accelerometers, and velocity sensors. It also supports four temperature input channels, which can connect to E, J, K, and T-type thermocouples.
Signal Processing: Equipped with a 24-bit A/D converter, a 25kHz bandwidth, and up to eight-pole filtering function, it ensures the accuracy of collected data. It can also be configured with a band-pass filter (0.2Hz to 20kHz) and allows selection of multiple measurement groups such as acceleration PK, velocity RMS, and displacement PP according to requirements.
Output Functions: It provides six relay outputs for setting two-stage alarms (Warning/Danger), four 4-20mA recorder outputs, and a dedicated buffer output, facilitating data transmission to other devices or systems.
Communication Capability: Supporting Modbus communication, it can interact data with Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) systems, etc., via Ethernet and software-configurable RS232/485 serial ports.
Configuration Flexibility: Configuration information can be permanently stored in non-volatile memory and uploaded to a PC for modification. It also supports an optional display/keyboard for viewing channel information or making minor configuration changes, with the display installable up to 75 meters away from the monitoring module.
Application Scenarios: Suitable for critical equipment such as fans, generators, and compressors, as well as small and medium-sized rotating equipment like water pumps, blowers, and motors. It provides comprehensive operation status evaluation and fault early warning for these devices.
