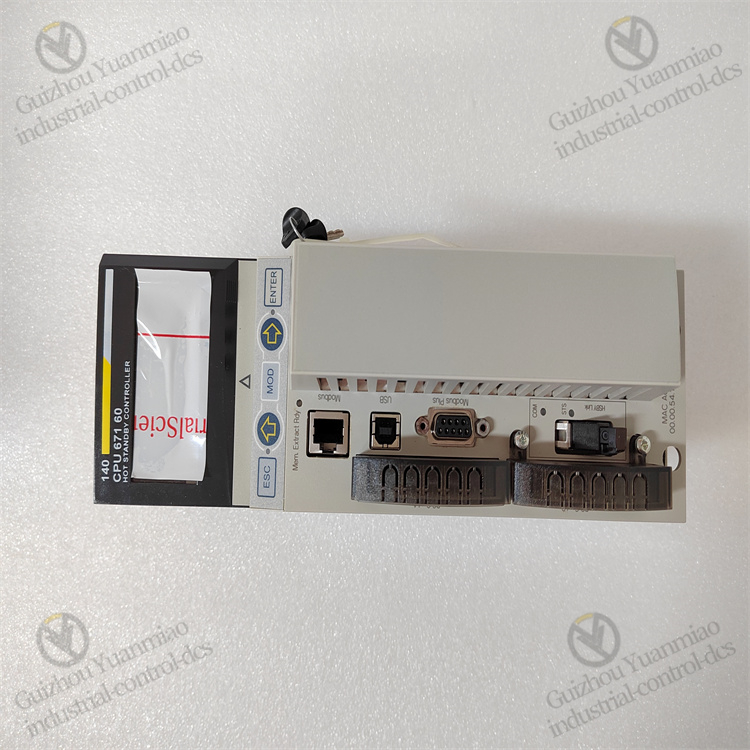

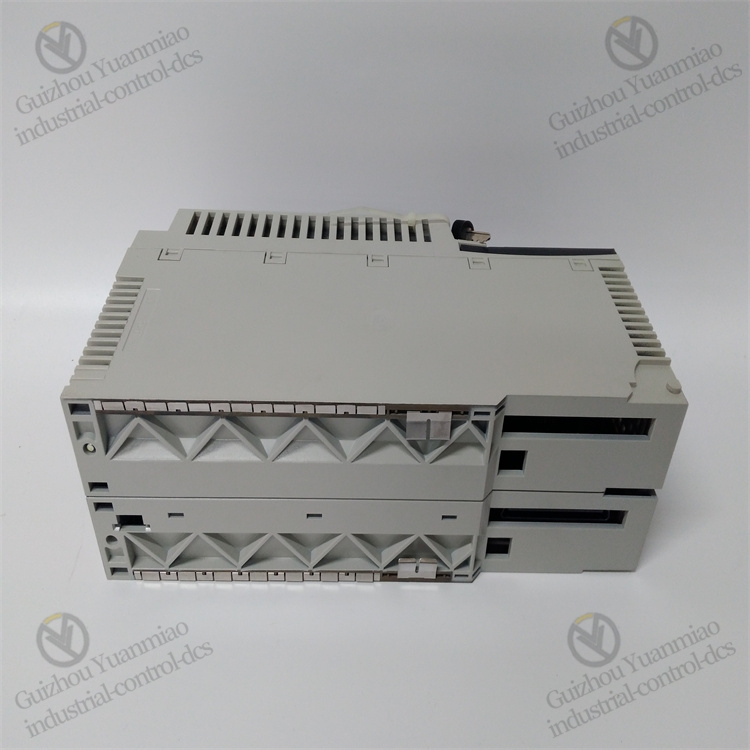

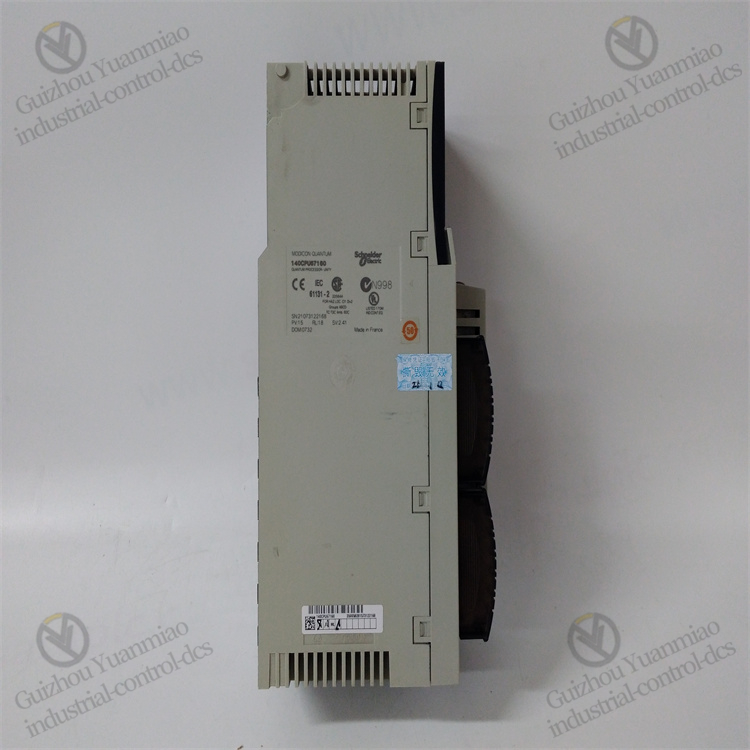

140CPU67160 Schneider Modicon Quantum series CPU module

Performance parameters:
Processor performance: It adopts a 266MHz processor. If 100% are Boolean instructions, it can execute 10.28k instructions per millisecond. If 65% are Boolean instructions and 35% are numerical instructions, it can execute 10.07k instructions per millisecond.
Memory capacity: The internal RAM is 1024KB, of which 512KB is dedicated to data. The program memory can be expanded to 7168KB and the file storage to 8MB through the PCMCIA card.

Communication capability: It is equipped with multiple communication ports, including 1 Modbus port, 1 Modbus Plus port, 1 USB port, 1 Ethernet port and 1 100Mbps dedicated hot standby port. It supports multiple communication protocols such as EtherNet/IP, Profinet, Modbus, etc. It can connect to 6 optional modules (such as Ethernet, Modbus, etc.), and can achieve up to 6 local Ethernet TCP/IP connections, 6 local Modbus Plus connections, etc.

Input and output capabilities: Remote discrete I/O can reach 31744 inputs and 31744 outputs. Distributed Modbus Plus per network can reach up to 8,000 inputs and 8,000 outputs. The number of Ethernet remote I/O is unlimited (up to 31 branches, with a maximum of 28 slots for each branch). The distributed Modbus Plus analog I/O per network is 500 inputs and 500 outputs, the remote one is 1984 inputs and 1984 outputs, and the local one is 0 in hot standby applications.
Power supply and power consumption: The bus current requirement is 2500mA.

Product Features:
Hot standby function: As a hot standby processor, it can provide redundancy and failover functions to ensure that the system can continue to operate when the main processor fails, thereby enhancing system reliability.
LCD display: The standard configuration is a 2-line 16-character LCD with variable backlight status and contrast, making it convenient to view system information and configuration parameters.

Safety Certification: It has obtained SIL2 level or above safety application certification and can be used in industrial Settings with high safety requirements.
Programming and compatibility: Supports multiple programming languages such as Ladder Logic, Structured Text, and Function Block Diagram, facilitating programming for engineers. Compatible with other Modicon Quantum series components of Schneider Electric, facilitating system expansion and integration.
