Description

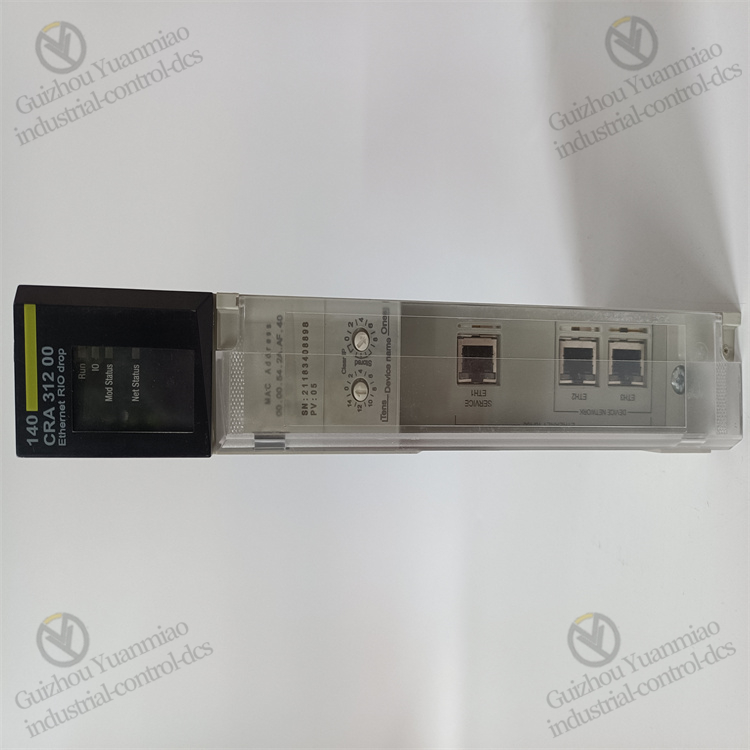

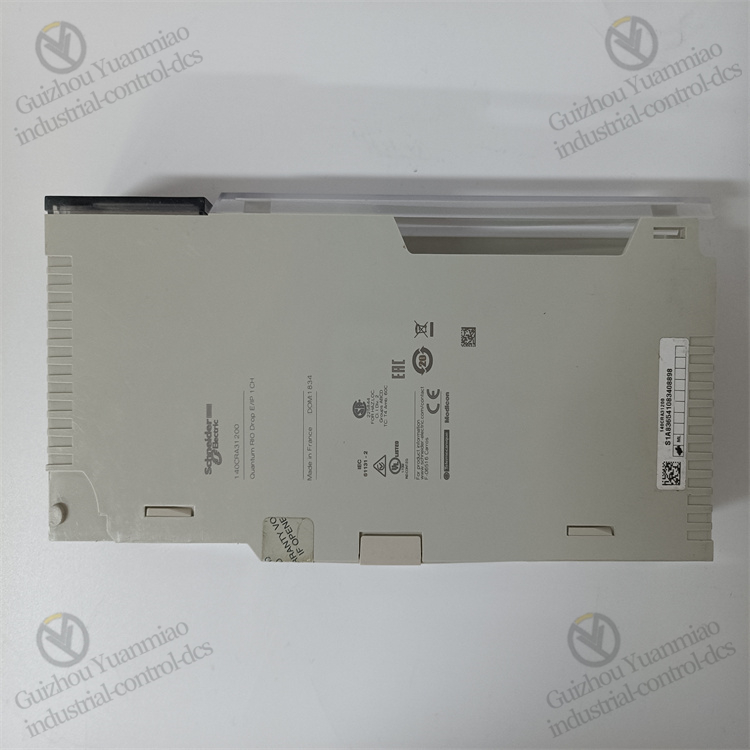

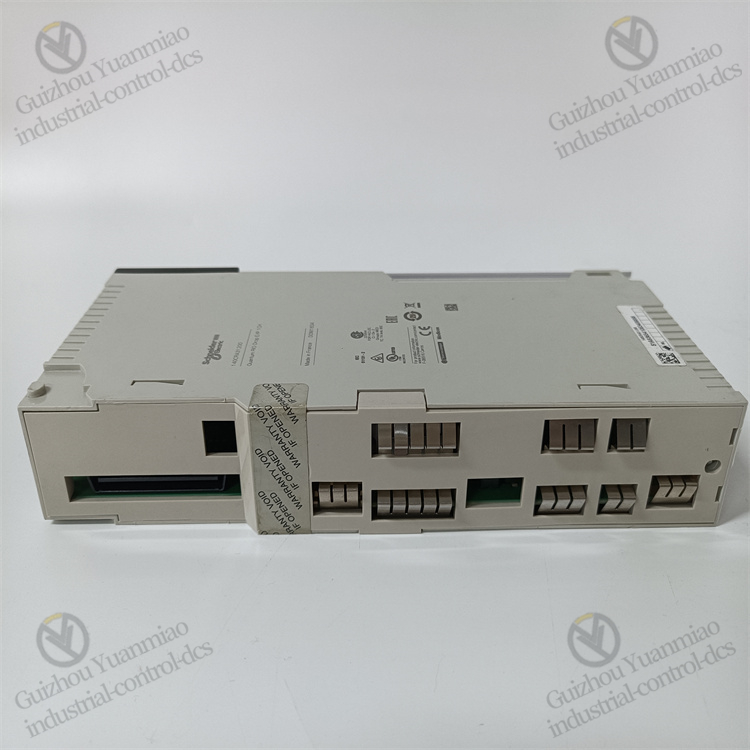

140CRA31200 Schneider Ethernet RIO Branch Adapter

Performance characteristics
Communication function: It has 3 ports and uses the Ethernet IP/Modbus TCP communication port protocol. Two types of integrated connections, namely Ethernet IP/Modbus TCP, can be processed through the service port or the device network. It can exchange data with other devices or systems that support related protocols to achieve distributed control and remote monitoring.

Status indication: Equipped with multiple local signal channels. There is one green LED to indicate the operating status, one green/red LED to display the module status, one green/red LED to display the network communication status, and one red LED to indicate the I/O status, which is convenient for users to understand the working condition of the module in real time.
Installation method: It adopts the DIN rail installation method, which is convenient for installation, can save space and is easy to layout in industrial control cabinets.

Compatibility: Compatible with other related modules such as 140CRP31200, it can work in coordination in the Quantum series systems, which is helpful for building more complex automatic control systems.
Reliable performance: Utilizing high-quality materials and manufacturing processes, it features high reliability and stability, capable of operating stably for long periods in harsh industrial environments. It can adapt to high temperatures, high humidity, and strong electromagnetic interference in industrial sites.

Application scenarios
Manufacturing production lines: In production lines such as automotive manufacturing and electronic equipment manufacturing, numerous robots, welding machines, conveyor belts and other equipment can be connected. The high-speed data transmission and collaborative work among these devices are realized through the Ethernet IP protocol, enabling the robot to accurately grasp and operate according to the positions of the workpieces conveyed on the conveyor belt. Meanwhile, the operating status of the devices is fed back to the control system in real time, facilitating monitoring and fault diagnosis.

The petrochemical industry: In the petrochemical production process, there are a large number of sensors and actuators distributed in different equipment areas. The 140CRA31200 can quickly transmit sensor data such as temperature, pressure and flow rate to the central control system, and at the same time receive instructions issued by the control system to control the operation of valves, pumps and other equipment. By taking advantage of its redundancy function, the reliability of communication in harsh industrial environments can be ensured, and production accidents caused by communication failures can be avoided.

Power system: In the substation automation system, it can be used to connect various relay protection devices, measurement and control devices, and smart meters, etc. Communicate with the monitoring system within the station through the Modbus TCP protocol to achieve real-time monitoring and control of power parameters and ensure the stable operation of the power system. It can also be connected to the control systems of boilers, steam turbines and other equipment in power plants to achieve the automatic operation and monitoring of the units.

Food and beverage processing: The production of food and beverages has high requirements for hygiene and process control. The 140CRA31200 can be connected to filling machines, sterilization equipment, labeling machines, etc., to ensure precise control of parameters such as temperature, liquid level and pressure during the production process and guarantee product quality. Its reliable performance and stable communication can meet the requirements of the food and beverage industry for continuous production, reducing downtime and product waste.

Sewage treatment industry: It can be applied in sewage treatment plants, connecting sewage pumps, aeration equipment, water quality monitoring instruments, etc. According to the data such as the liquid level and water quality indicators of the sewage tank, they are transmitted to the control system in real time through the Ethernet IP network to realize the automatic control of links such as sewage lifting and aeration treatment, and achieve the purpose of energy conservation and efficient sewage treatment.
