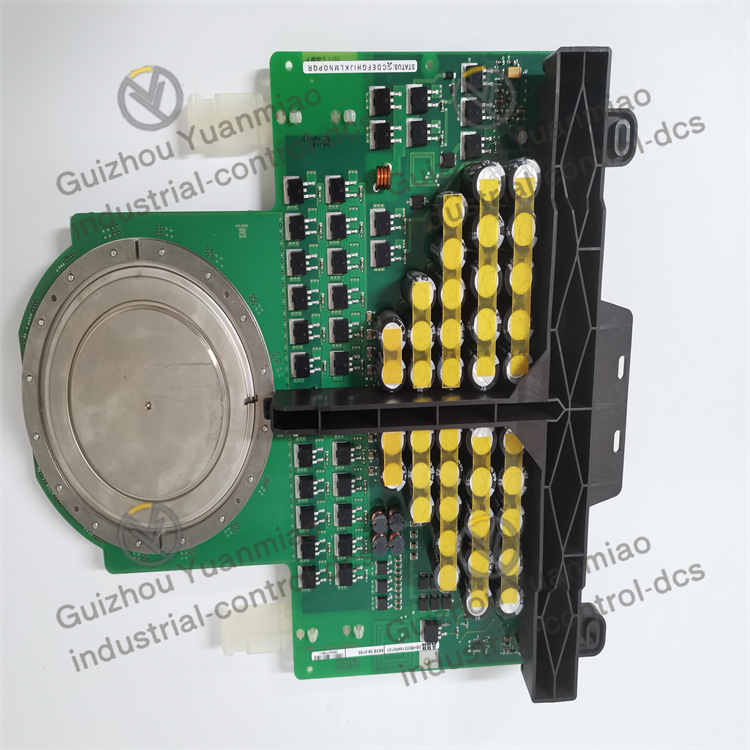

5SHY40L4511  ABB  IGCT Module

• Fast Switching Speed: It has the ability to turn on and off quickly, and can achieve short switching pulse trains up to 40kHz, which can well meet the needs of high-frequency applications.
• Strong Voltage Withstand and Current Carrying Capacity: It is suitable for high-voltage and large-current working environments, can operate stably under various complex working conditions, and can meet the application requirements of high-power occasions.
• Advantages of Integrated Design: It combines the advantages of Integrated Gate-Commutated Thyristor (IGCT) and GTO thyristor, with higher efficiency and better reliability. Moreover, no snubber circuit is needed, which reduces circuit complexity and cost.
• Optimized Loss Characteristics: The module is optimized for low conduction loss, with a typical on/off switching frequency of around 500Hz, which can extend high-frequency applications to the kHz range.
• Easy to Control: The on/off control unit of the IGCT is part of the component, and only an external power supply is needed. Its control functions can be easily accessed through optical fiber connection.

• Power Systems: It can be used in High-Voltage Direct Current (HVDC) transmission systems to control the current in transmission lines and realize efficient transmission of electrical energy over long distances with high power. It can also be applied to reactive power compensation devices in power systems to adjust the reactive power of the power grid, improve the power factor, and enhance the stability and power quality of the power grid.
• Motor Drives: In industrial drive systems, it is used to adjust the speed and torque of motors, such as the motor control of fans, water pumps, compressors and other equipment, which can realize energy-saving operation and precise speed regulation. It can also be applied to traction control systems, such as the motor drive of rail transit vehicles like electric trains and subways, to provide power for the vehicles.
• Electric Heating Systems: It is used to control the power of heating elements in electric heating equipment such as industrial furnaces and water heaters. By adjusting the conduction angle of the thyristor, the heating power can be precisely controlled to meet different heating process requirements, and realize energy saving and precise temperature control.
• Power Conversion: As a key component in switching power supplies and inverter power supplies, it can realize high-efficiency and high-reliability electrical energy conversion, convert direct current to alternating current, or perform voltage transformation and frequency conversion on alternating current. It is often used in equipment such as Uninterruptible Power Supplies (UPS), photovoltaic inverters, and wind power converters.
• Lighting Control: It can be used to adjust the brightness of street lamps and other lighting systems to realize energy-saving and intelligent lighting control. By controlling the conduction time of the thyristor, the average voltage output to the lighting fixtures is changed, thereby adjusting the brightness of the fixtures.
