Description

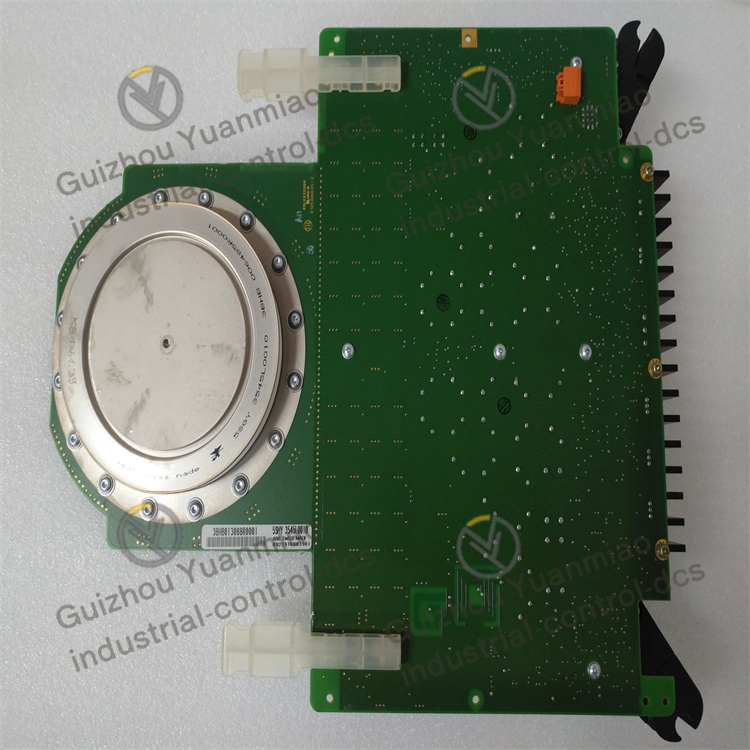

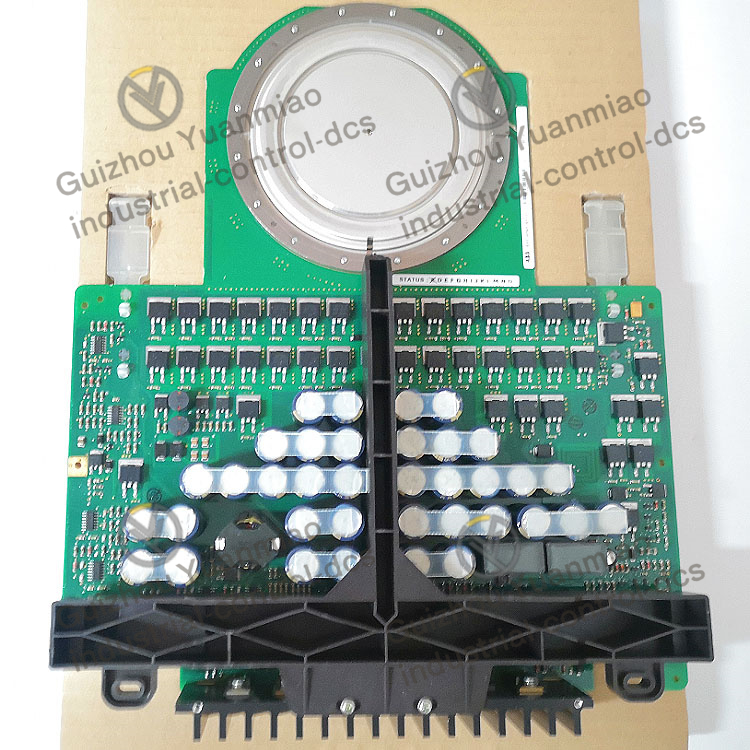

ABB 5SHY3545L0010 High-performance Gate-Commutated Thyristor (IGCT) Module

• High Power Control: Capable of controlling high-power loads, suitable for power regulation in AC systems, and can be used in fields such as industrial power regulation and variable frequency drives.
• Fast Response: It has a fast switching speed, can quickly adjust current and voltage, and can control power flow quickly and accurately to adapt to changes in system requirements.
• Low Switching Loss: Helps improve the efficiency of the overall system, reduce energy loss, and achieve efficient energy conversion.
• High Reliability: Adopting high-quality materials and advanced production processes, it has undergone strict testing and verification, has good anti-interference ability, can operate reliably in harsh environments, and has a design life of up to 20 years.
• Complete Protection Functions: Built-in overload protection, short-circuit protection, over-temperature protection and other functions to ensure the safe operation of the module. Some modules may also have fault detection and diagnosis functions, which can detect and report problems in a timely manner.
• Modular Design: Easy to install, maintain and replace, and may have a communication interface, which can be integrated with other control systems to achieve remote monitoring and control.

• Rated Voltage: 4500V
• Rated Current: 3500A
• Peak Turn-on Gate Current: 1000A
• Peak Turn-off Gate Current: 1000A
• Turn-on Time: 1.5μs
• Turn-off Time: 1.5μs
• On-state Voltage Drop: 2.5V
• Off-state Leakage Current: 10mA
• Junction Temperature: 125°C

• Industrial Automation: Can be used to monitor and control production lines, mechanical processes and device systems, and realize precise control of motors, drives, etc.
• Renewable Energy: Such as in wind power converters and photovoltaic inverters, it contributes to efficient energy conversion.
• Power Transmission and Distribution: It can improve the reliability and efficiency of the power grid and ensure the stable operation of the power system.
• Electric Vehicles: It can realize efficient power management and be applied to charging infrastructure and other aspects.
• Mining and Heavy Industry: It can provide reliable control and protection in harsh environments and support the automation of key infrastructure.
