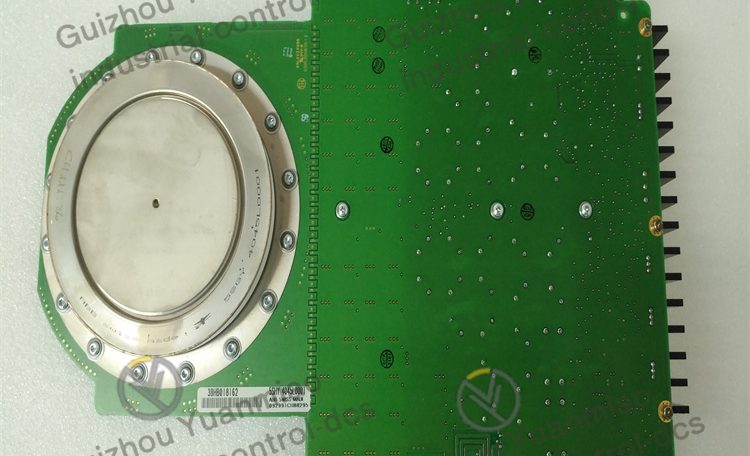

ABB 5SHY4045L0001 High-performance IGCT Module
Working Principle: Similar to GTO (Gate Turn-Off Thyristor), IGCT is also a four-layer, three-terminal device. It is internally composed of thousands of GCTs, with the anode and gate shared, and the cathodes connected in parallel. Its conduction mechanism is exactly the same as that of GTO. Under the action of a gate trigger signal, the internal PN junction structure forms a conduction channel, allowing current to flow from the anode to the cathode. However, the turn-off mechanism is different from that of GTO. During the turn-off process of IGCT, it can instantly switch from the on-state to the blocking state, transforming into a pnp transistor before turning off, so it has no external du/dt (voltage change rate) limitation. In contrast, GTO switches through an intermediate unstable state that is neither on nor off, thus requiring a large snubber circuit to suppress the change rate of the reapplied voltage. In the blocking state, the equivalent circuit of IGCT can be considered as a series combination of a base-open, low-gain pnp transistor and a gate power supply.
Advantages Introduction:
- High Current and Voltage Bearing Capacity: It can carry large currents and high voltages, making it suitable for high-power power electronic systems. It can meet the requirements of handling large currents and high voltages in scenarios such as high-voltage direct current transmission and high-power motor drives.
- Fast Switching Characteristics: It has a relatively fast switching speed, which can improve the dynamic response capability of the system. It is suitable for high-frequency application scenarios, reducing energy loss during the switching process and enhancing the overall efficiency of the system.
- Low Conduction Loss: It has a low on-state voltage drop. Compared with some similar devices, it can effectively reduce power loss, improve energy conversion efficiency, reduce heat dissipation requirements, and lower operating costs, making it particularly suitable for high-power equipment operating continuously.
- High Reliability: Adopting advanced packaging technology and asymmetric structure design, it integrates multiple protection functions such as overload protection, short-circuit protection, overvoltage protection, and undervoltage protection. It can ensure the safe operation of equipment under various abnormal conditions, work stably in harsh temperature environments, and has high reliability.
- Easy to Parallel Connection: The module features easy parallel connection, facilitating the use of multiple modules in parallel to meet the demand for higher current handling capacity in relevant occasions, without the need for complex current-sharing control circuits, thus reducing the difficulty of system design.
- Small Size and Light Weight: It has a small size and light weight, making it convenient to integrate into various systems. It is beneficial to the miniaturization and lightweight design of equipment and can be applied in space-constrained occasions.
Application Fields:
- Power Systems: It can be used for commutation in high-voltage direct current transmission systems, serving as the core component of converter valves to achieve megawatt-level power conversion, suitable for cross-regional power grid interconnection, offshore wind power grid integration, etc. It can also be applied to static var compensators to improve the power factor of the power grid and enhance the stability and power quality of the power system. Additionally, it can be used in flexible alternating current transmission systems to strengthen the transmission capacity and operational flexibility of the power grid.
- Industrial Drives: It is often used for frequency conversion speed regulation of high-power motors such as rolling mills and mine hoists, capable of providing precise torque control and dynamic response, realizing efficient operation and accurate control of motors. Moreover, in other large industrial motor drive systems, such as paper machines, fans, pumps and other equipment, it can exert its high-voltage and large-current handling capacity to improve system performance.
- New Energy Field: In wind power generation, it can be used in wind power converters above 2MW, adapting to a wide temperature range and high-frequency start-stop, ensuring stable alternating current output under variable wind conditions. It can also control the blade spacing to achieve the maximum efficiency of the turbine. In the field of photovoltaic power generation, it can be applied to boost inverters in photovoltaic power plants to improve the efficiency and stability of large-scale photovoltaic grid integration.
- Rail Transit: It can be applied to the electric traction systems of electric locomotives, subways, etc., providing power for trains and realizing efficient traction and braking control. It can also be used in the auxiliary power supply systems of trains to provide stable power support for various electrical equipment on trains.
- Welding Equipment: It can be used in welding power supplies to provide stable and reliable high-power electricity for the welding process, helping to improve welding quality and efficiency, and is suitable for some large-scale welding equipment and high-demand welding processes.
