Description

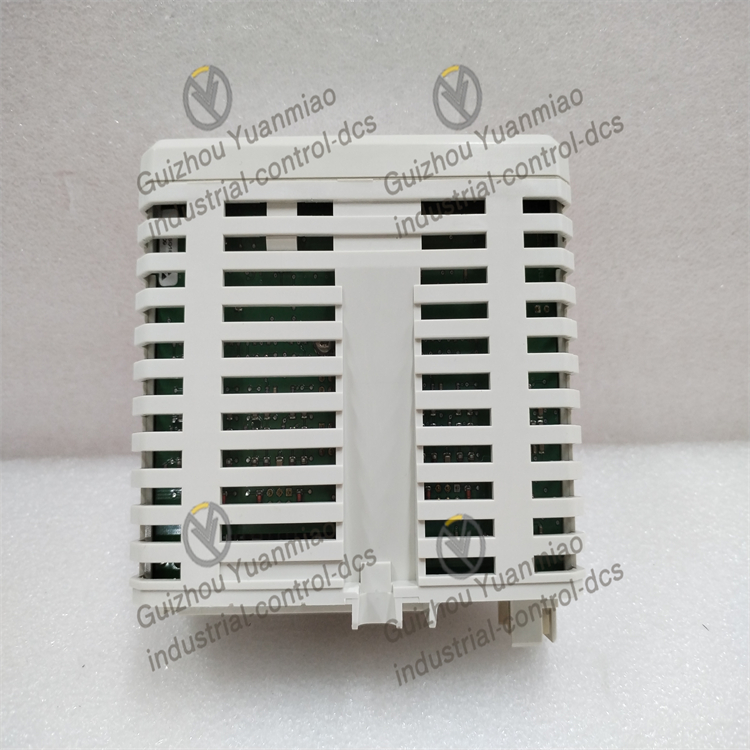

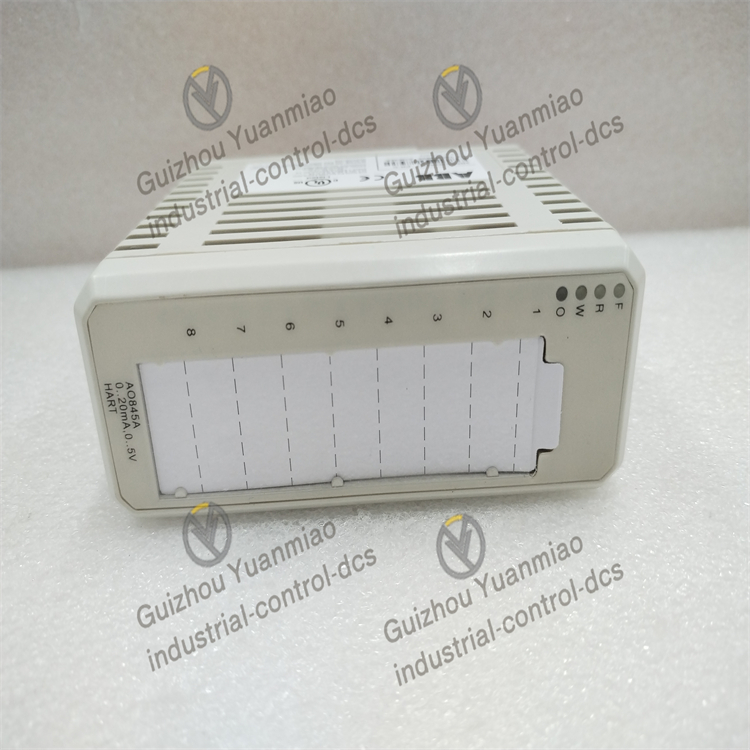

ABB AO845A analog output module

Channel and signal specifications:
Number of channels: 8 unipolar analog output channels, capable of simultaneously controlling multiple external devices.
Signal range: The output signal specification is 4-20mA, suitable for interface connection with most industrial standard sensors and actuators.
Electrical characteristics:
Resolution: 12 bits, capable of providing relatively fine analog output control.
Isolation method: One group of 8 channels is isolated from the ground, which can effectively prevent electrical interference and enhance the stability and safety of the system.
Error: The maximum error is 0.1%, ensuring the accuracy and stability of the output signal and meeting the requirements of high-precision control.
Temperature drift: The typical value is 50ppm/°C, and the maximum is 80ppm/° C. It can maintain relatively stable performance under different temperature environments.
Output load: No specific data is mentioned, but usually the appropriate load matching needs to be selected based on the actual connected devices and line impedance.
Update cycle time: 1 millisecond, which can quickly respond to the system’s control instructions and achieve real-time control.
Communication function: Equipped with S/R HART communication interface. Supports HART protocol, enabling two-way communication with HART devices, facilitating remote configuration, diagnosis and monitoring.

Mechanical and environmental parameters:
Protection grade: IP20, suitable for indoor environments, can prevent objects larger than 12.5mm from entering.
Operating temperature: 0°C to + 55°C, storage temperature: -25 °C to + 70°C, capable of adapting to a certain range of industrial environmental temperature variations.
Other features: The module performs self-diagnosis in a loop, including diagnostic functions for external channel errors, internal channel errors, module errors, etc. It can also monitor the process power supply, promptly detect and report faults and abnormal situations in the system, which helps to improve the reliability and maintainability of the system.
