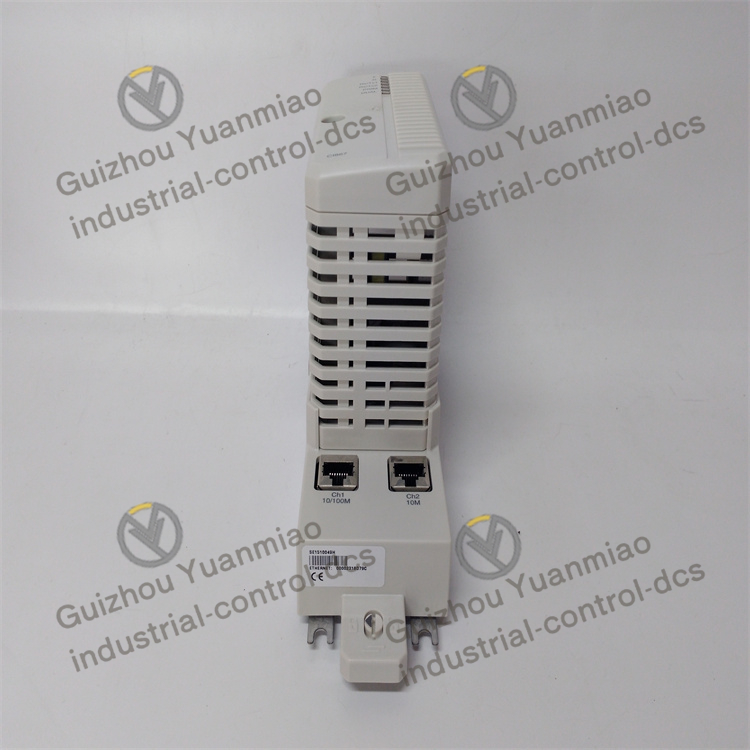

ABB CI869K01 AF100 communication interface module

Communication function
Communication protocol: Supports the AF100 fieldbus protocol. Connect to the AF100 fieldbus via TWisted-pair cable (TWP) to achieve communication with other devices.
Connection capability: The CI869 communication interface connected to the AC800M controller can be linked to other AC800M, AC160 or connection servers via AF100, allowing the AC800M controller to act as an AF100 station and receive data from other AF100 stations.
Redundant configuration: It can be configured as redundant cables and redundant communication interfaces. The use of two CI869 can support Advant Fieldbus 100 redundancy, improving the reliability and stability of the system.

Other characteristics
Hot plugging function: It supports hot plugging, allowing for the replacement or upgrade of modules while the system is running without interrupting the system operation, facilitating the maintenance and upgrade of the equipment.
Interface type: Equipped with an RJ-45 female (8-pin) connector for connecting network devices.

The CI869K01 module is mainly applied in industrial automation control systems. As a communication bridge between ABB AC800M and other series control systems and AF100 fieldbus devices, it is widely used in industries such as manufacturing, chemical engineering, power, and water treatment to achieve data transmission and interaction among devices. To achieve the monitoring and control of industrial processes.
