Description

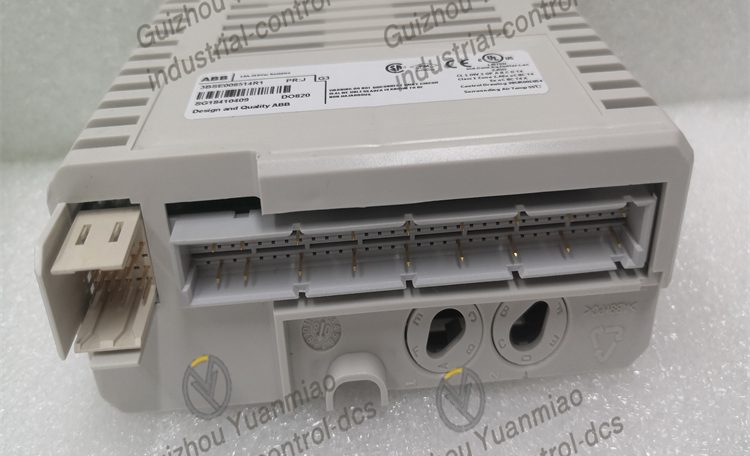

ABB DO840 16-channel digital output module

Overview
The DO840 is a digital output module with 16 channels, powered by a 24VDC power supply and featuring redundancy. It is usually applied in industrial automation control systems with high reliability requirements, ensuring that the system can still operate normally when a channel or module fails.

Channel characteristics
Number of channels: It has 16 digital output channels and can simultaneously control 16 different external devices or actuators.
Output signal type: The output signal is 24VDC, which can provide a stable DC voltage to drive external loads such as relays, solenoid valves, indicator lights, etc.
Channel isolation: Each channel is isolated from one another, which can effectively prevent electrical interference between channels and improve the stability and reliability of the system.

Redundant function
Hardware redundancy: The module has a redundant design and usually contains two independent output circuits or channel groups. When one channel or circuit malfunctions, the other channel or circuit can automatically take over the work to ensure the continuity of the output signal, thereby avoiding system shutdown caused by a single point of failure.
Fault detection and switching: The module is equipped with an inbuilt fault detection mechanism that can monitor the working status of each channel in real time. Once a fault is detected in a certain channel, the system will automatically switch the output to the redundant channel. This process is usually automatic and fast, and for most industrial applications, it will not have a significant impact on the production process.

Application scenarios
Industrial automated production lines: In automated production lines such as automotive manufacturing and electronic equipment production, they are used to control the movements of various robots, mechanical arms, conveyor belts and other equipment to ensure the stable operation of the production line. Due to its redundant function, even if a certain channel malfunctions, it will not affect the normal operation of the entire production line, improving production efficiency and product quality.
Power system: In power systems such as substations and power plants, it is used to control switchgear, relay protection devices, etc. Redundancy function can ensure that the operation of power equipment can still be accurately controlled when a module fails, guaranteeing the safe and reliable power supply of the power system.
Petrochemical industry: In the processes of petroleum refining and chemical production, it is used to control the start and stop of various valves, pumps and other equipment. The high reliability and redundant design of DO840 can meet the strict requirements of the petrochemical industry for safe production. Even in harsh industrial environments, it can ensure the stable operation of the equipment and prevent safety accidents caused by equipment failure.
