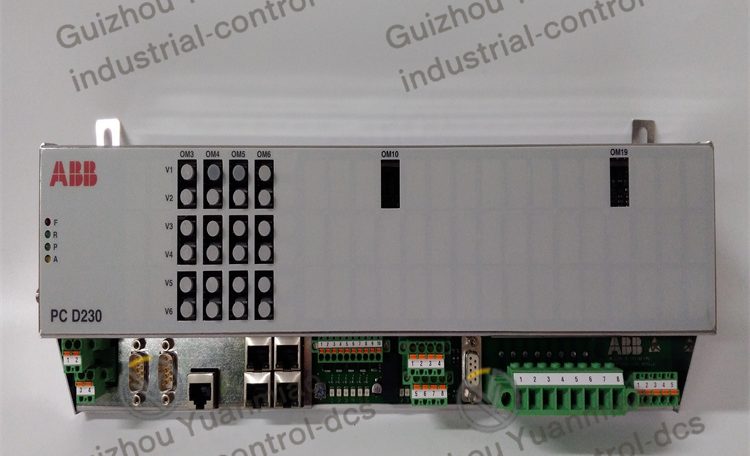

ABB PCD230 3BHE022291R0101 control module

Hardware design
Modular design: It adopts a modular and energy-saving design, allowing it to operate without forced cooling and adapt to various industrial environments.
Easy installation: I/O modules can be installed on standard DIN rails, facilitating installation in distributed processes. The number of I/O systems that can be directly connected is only limited by the maximum available optical fiber links of the processor (36 bidirectional links). Modules can use single, multiple or redundant bidirectional links according to performance requirements.
Performance parameters:
Powerful processor performance: Equipped with high-performance processors and memory, such as a fully functional 600MHz RISC processor and 64-bit IEEE floating-point unit (FPU), it can handle complex control algorithms and tasks, providing high-speed response and real-time performance, and is suitable for applications with fast control cycles.
Good power adaptability: Supports dual power redundant input, wide-range DC 9~36V power input, low power consumption, and features voltage isolation and reverse connection protection functions to ensure stable operation of the module during power fluctuations or faults.
High feedback frequency: For instance, when PCD230A101 3BHE022291R0101 uses FS701 firmware, the feedback frequency can reach 400kHz, enabling high cutting accuracy.

Functional features:
Rich interfaces: It provides multiple input and output interfaces, which can be connected to sensors, actuators and other devices to receive input signals and control output actions, facilitating integration into various industrial automation systems and achieving seamless collaboration among devices.
Strong data processing capability: It has a powerful data processing and storage capacity, capable of collecting, processing and storing data from sensors or other devices, and providing data analysis and reporting functions. It helps users monitor the operation status of the equipment in real time, promptly identify and solve problems, and improve production efficiency.

Application field:
Fixed-length cutting system: It provides solutions for fixed-length cutting systems such as flying saws, flying shears, and drilling, as well as applications like labeling, printing, drilling, and sealing. It is suitable for scenarios such as fixed-length cutting of steel pipes, hoses, light steel frames, and sawing of sheet metal.
Other industrial scenarios: Meeting the challenging requirements in process control, it is widely applied in industries such as processes, power generation, distribution, transportation, and traction, and can be used to control high-power motors or industrial processes that require large electrical power.
