Description

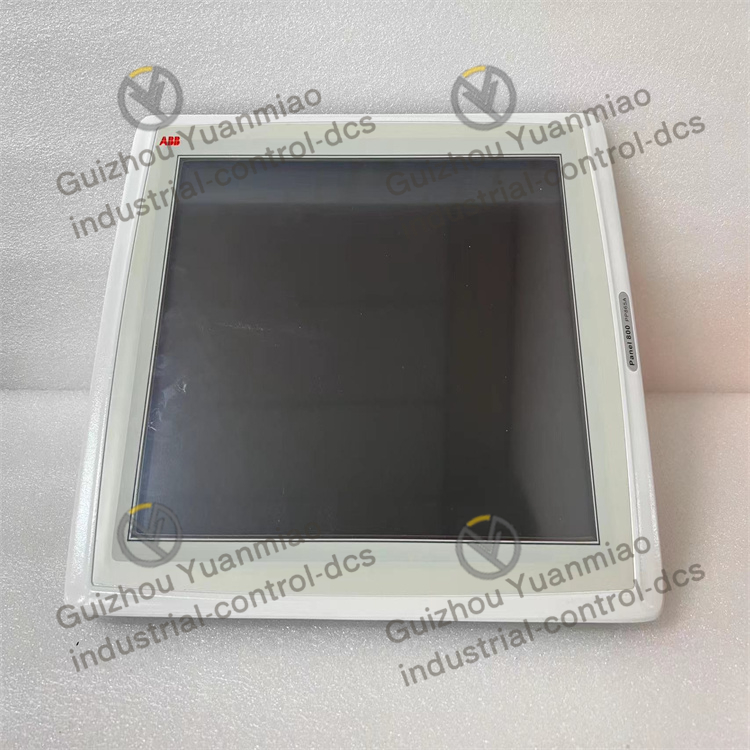

ABB  PP865A 3BSE042236R2  15-inch touch operation panel

Display and Interaction
Screen type: TFT-LCD display screen.
Resolution: 1024×768 pixels.
Display color: 64K color.
Backlight: CCFL, with a backlight lifespan of more than 35,000 hours when the ambient temperature is + 25℃.
Touch screen: Resistive touch, with polyester on glass as the touch material, capable of withstanding one million finger touch operations.
Electrical characteristics:
Input voltage: 24V DC.
Power consumption: 21.6 watts.
Operating temperature range: -10°C to + 60°C.
Storage temperature range: -20°C to + 70°C.
Relative working humidity: 5%-85% non-condensing.

Communication interface:
Ethernet: 2 shielded RJ45 interfaces, 1×10/100Base-T.
USB: 2 USB 2.0 interfaces, 500mA port.
Serial ports: 1 RS232, 1 RS422/485, 1 RS485 (only when COM2 is RS485).
Performance parameters:
Processor: ARM9.
Memory capacity: 1 gigabyte.
Real-time clock: Equipped with a rechargeable battery, it has an accuracy of ±20ppm. Due to errors caused by ambient temperature and power supply voltage, the total maximum error is 1 minute per month at 25℃, and the temperature coefficient is -0.034 ±0.006ppm/℃.

Functional features:
Friendly interface: It features an icon-based interface, navigation and control, making operation convenient and fast.
Convenient engineering design: The panel generator tool features a familiar Microsoft Windows environment and support for multiple languages, enabling rapid, easy and efficient engineering design.
Open architecture: Based on concomitant. The open architecture and technical construction of the NET framework enable the connection of multi-brand controllers, and multiple connection options are available for local communication, expansion, remote access, etc.
