Description

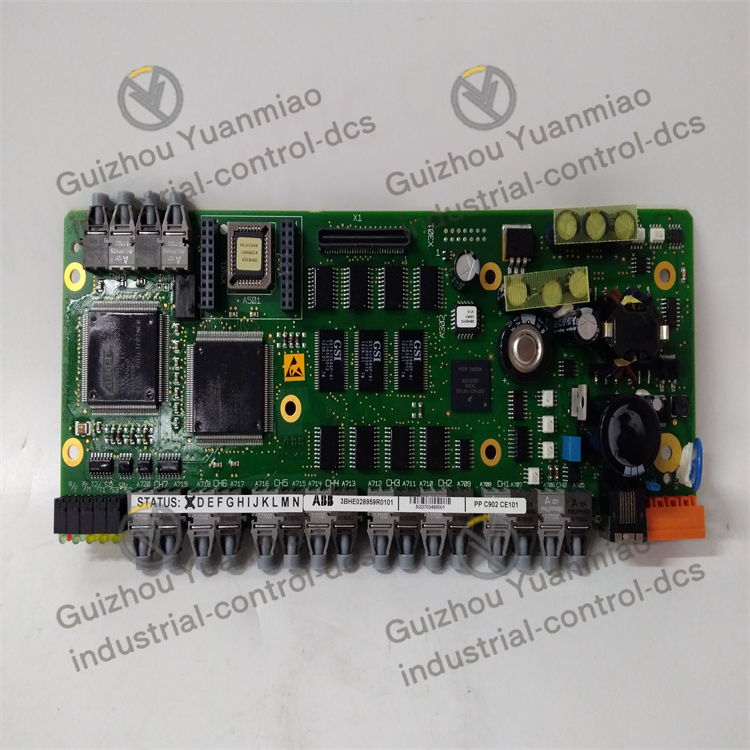

ABB  PPC902CE101  controller

Working principle
Signal input: Receive signals from the host computer, other controllers or field sensors through various communication interfaces (such as Profibus DP, Modbus TCP/IP, etc.). These signals include control instructions, equipment operation status information, process parameters, etc. For example, in motor control applications, it may receive speed setting values from the operation panel, as well as real-time monitoring data from the motor temperature sensor and current sensor.

Signal processing and Program execution
The microprocessor built into the controller processes the input signal according to the preset program. The program is written in the standard IEC 61131-3 programming language, such as ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), etc. These programs define the control logic and algorithms of the controller.
Take the control of high-voltage motors as an example. The controller will calculate the required control quantity to be output based on the difference between the set speed value and the actual speed feedback value by using specific control algorithms (such as PID control algorithms), in order to achieve precise motor speed control. At the same time, it will also conduct real-time monitoring and judgment on the motor’s overload, overheating and other conditions, and take measures based on the corresponding protection logic, such as issuing alarm signals or stopping the motor operation.

Control output: Based on the processed result, the controller sends control signals to the actuator through the corresponding output interface. These actuators can be frequency converters, contactors, relays, etc., thereby achieving precise control of equipment such as motors, valves, and pumps. For instance, the controller sends control signals to the frequency converter to adjust its output frequency, thereby changing the rotational speed of the motor to meet the requirements of different production processes.

In conclusion, the ABB PPC902CE101 controller achieves precise control and protection of industrial equipment by receiving, processing and outputting signals, in accordance with preset programs and algorithms, ensuring the stable operation and efficient production of industrial systems.
