Description

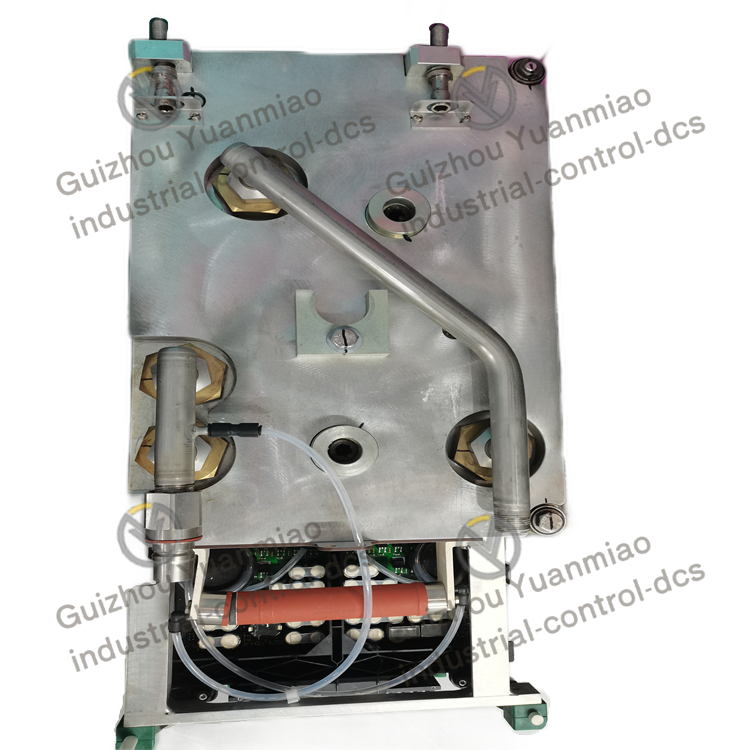

ABB  S-073H 3BHB009884R0204  ACS6000 series phase modules

Feature Introduction:
Advanced technical principle: By adopting modular multilevel converter (MMC) technology and combining multiple sub-modules, precise control of output voltage and current is achieved, which can generate high-quality sine wave output, reduce harmonic distortion, and improve power quality.
High efficiency and energy saving: The optimized circuit design and control algorithm ensure low energy loss during the conversion of DC electrical energy to AC electrical energy by the module, enabling energy-saving operation of the motor and reducing the operating cost of the system.
High-precision control: It features precise phase control, voltage regulation and frequency regulation capabilities, enabling smooth speed regulation and precise control of the motor. It meets the application scenarios with high requirements for motor speed accuracy, and the speed control accuracy can reach a relatively high level.
High reliability
Strict testing: Through rigorous quality control and durability testing, all components are made of high-quality materials, capable of withstanding harsh working conditions such as high pressure and high temperature, ensuring stable operation in various industrial environments.
Redundant design: In the design, redundancy and fault-tolerant mechanisms are taken into account, such as using redundant sub-modules or backup circuits, etc. Even if a sub-module fails, the system can still continue to operate, reducing downtime and enhancing the reliability of the system.

Modular design
Easy to install: The modules adopt standardized interfaces and connection methods, which are easy to install and disassemble, facilitating on-site installation and commissioning work and shortening the construction period of the system.
Convenient maintenance: When a module malfunctions, the faulty module can be quickly replaced, reducing maintenance time and costs. Meanwhile, it is also convenient to conduct regular inspections and maintenance of the modules to ensure the long-term stable operation of the system.
Flexible expansion: It is convenient to expand the system. According to the power demand and control requirements of actual applications, modules can be flexibly added or replaced to adapt to motor speed regulation systems of different scales.
Strong high-voltage application capability: Specifically designed for high-voltage applications, it can withstand voltages of several thousand volts or even higher and can be directly applied in high-voltage power systems, providing reliable variable-frequency power supplies for high-voltage AC motors without the need for additional voltage reduction or boost equipment, thus simplifying the system structure.
