Description

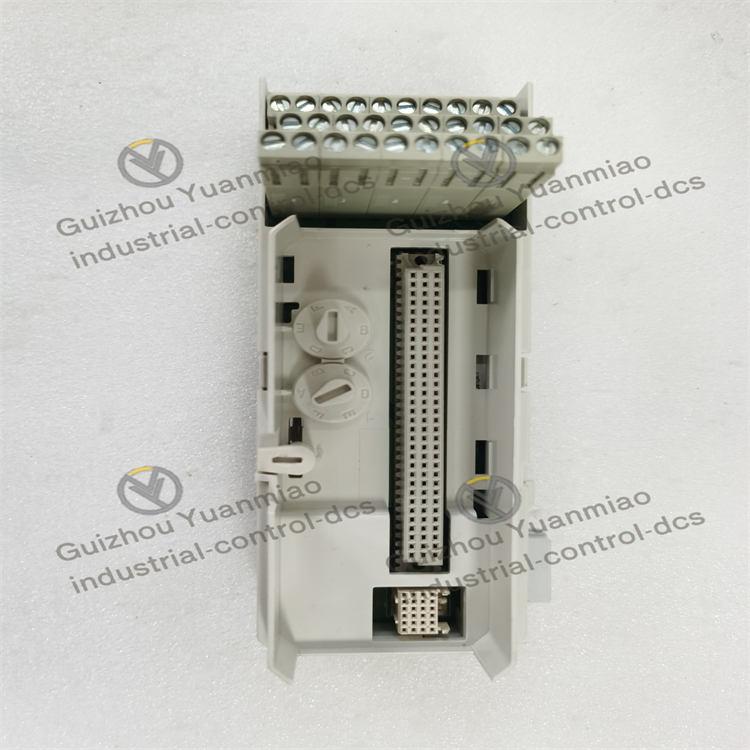

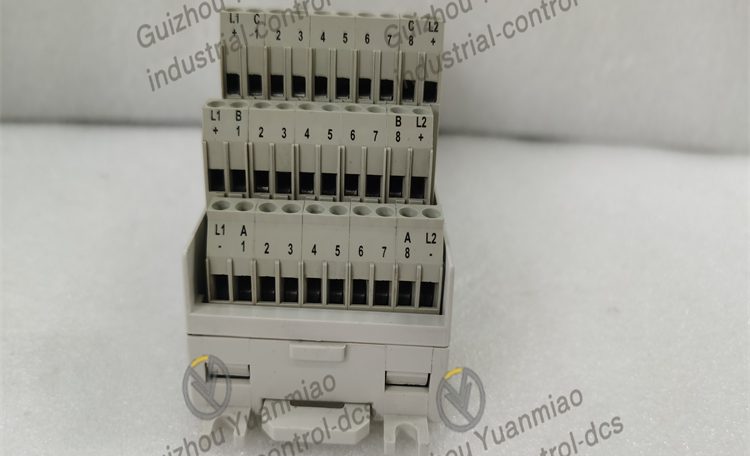

ABB TU810V1 16-channel compact terminal block

Functional characteristics
Connection function: As a module terminal unit, it serves as a connection bridge between the on-site wiring and the I/O module in the ABB S800 I/O system. It can reliably transmit the signals of on-site devices to the I/O module to achieve signal acquisition and output of control instructions.
ModuleBus allocation: It includes some ModuleBuses, which can be allocated to the connected I/O modules and the next MTU to ensure smooth communication between each module and achieve distributed control of the system.
Address generation: By shifting the output position signal to the next MTU, the correct address is generated for the I/O module, which helps the system accurately identify and address each I/O module, ensuring the normal operation of the entire control system.

Technical parameters
Rated voltage: 50V.
Rated current: 2A/channel, maximum current: 5A.
Wire specifications: Solid wires are applicable within the range of 0.2-4mm², and stranded wires are applicable within the range of 0.2-2.5mm² (24-12AWG).
Communication interface: ModuleBus.
Dielectric test voltage: 500V AC.
Environmental characteristics
Operating temperature: 0℃ to + 55℃, certified for + 5℃ to + 55℃.
Storage temperature: -40℃ to + 70℃.
Relative humidity: 5% to 95%, no condensation.

Product advantages
Compact design: It takes up little space and can achieve the connection of multiple channels within the limited control cabinet space, making the system layout more compact and reasonable.
Easy to install: It adopts the DIN rail installation method, which is very convenient for both installation and disassembly, saving installation time and labor costs, and facilitating the maintenance and upgrade of the system.
