Description

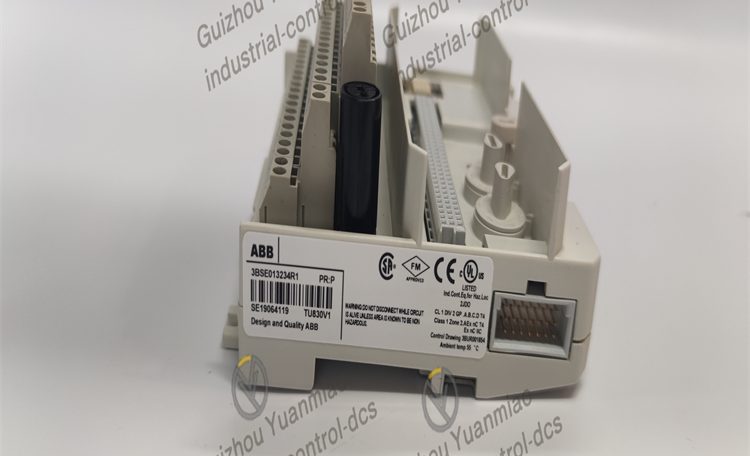

ABB TU830V1 extended module terminal unit

Functional characteristics
Channels and Connections: It can support up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection, providing rich connection points for field devices and I/O modules.
ModuleBus function: As a passive unit, it contains part of the ModuleBus, which can be assigned to the I/O module and the next MTU, and generate the correct address for the I/O module by shifting the output position signal, ensuring the accuracy of system communication and module addressing.
Process voltage protection: The process voltage can be connected to two separate isolated groups, each equipped with a 6.3A fuse, enhancing the safety and stability of the system.

Technical parameters
Rated voltage: 50V.
Rated current: The maximum current for each channel is 2A.
Number of channels: 16 channels.
Installation method: DIN rail installation is adopted, equipped with a latch device for grounding. It is convenient and stable to install, facilitating system wiring and maintenance.
Product advantages: The mechanical keying design can prevent incorrect insertion of I/O modules, enhancing the reliability and maintainability of the system, and helping to reduce system failures and maintenance costs caused by incorrect installation.

Application scenarios: Applicable to various industrial automation systems that use ABB S800 PLC for process control and monitoring It can be used in conjunction with various I/O modules such as AI810, AI815, AI820, AO810, AO815, DI810, DI811, DO810, DO814, DP820, and DP840, and is widely applied in manufacturing, energy, chemical, transportation and other fields.
