Description

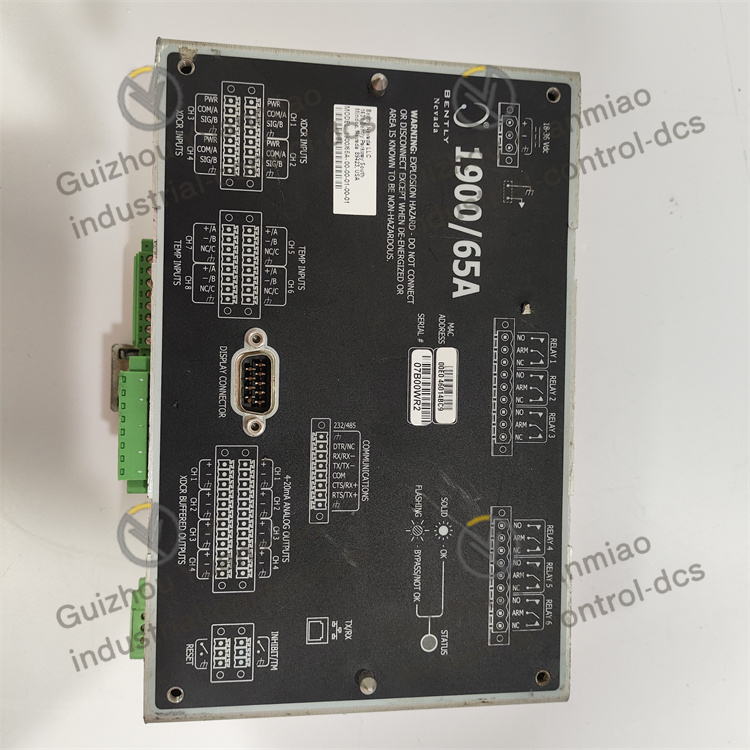

BENTLY  1900/65A-01-01-01-00-00  monitoring module

Power supply: An AC power supply of 110-220Vac 50/60Hz is adopted, which is supplied externally.
Display: Additional display without cables. Users can configure appropriate cables according to their actual needs to connect the display device, so as to view monitoring data and make relevant Settings.
Installation: DIN rail installation method. This installation method makes it convenient to install the monitor on a standard DIN rail, saving space and being easy to install. It is suitable for cabinet installation in industrial environments.
License: Multi-license agreement, which may involve usage licenses in different scenarios or for different functions. For specific license details, please refer to the Hazardous Area approval section in the relevant documents.
Communication: It adopts 10BaseT/100BaseTx Ethernet communication interfaces, which can be conveniently connected with other devices or systems that support Ethernet communication, achieving data transmission and sharing, and facilitating remote monitoring and management.

In terms of monitoring functions, the 1900/65A can monitor various vibration parameters, such as vibration velocity, acceleration, displacement, etc., and can also monitor other parameters such as temperature and pressure. It provides four vibration inputs and four temperature inputs, and supports various types of sensors. Including 200350 accelerometer, 330400 accelerometer, 190501 Velomitor speedometer, 330500 speedometer, 3300 5 & 8 mm Proximitor eddy current sensor system, etc. There are six relay outputs, four 4-20mA recorder outputs and one dedicated buffer output in terms of output.
