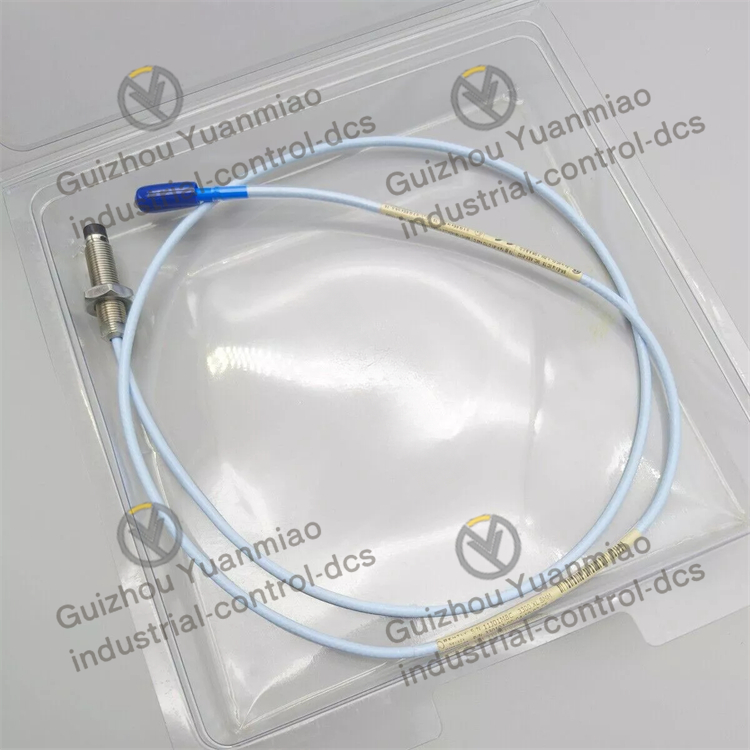

BENTLY  330101-00-20-10-02-00  8mm eddy current proximity probe

Probe specification: 330101 indicates that this is an 8mm probe of the 3300 XL series, featuring 3/8-24 UNF thread and no armor.
The unthreaded length option: 00 indicates that the unthreaded length is 0.0 inches.
The total length of the casing option: 20 indicates that the total length of the casing is 2.0 inches.
Total length option: 10 indicates that the total length of the probe is 1.0 meters (3.3 feet).
Connector and cable type options: 02 indicates the use of micro coaxial Click Loc™ connectors and standard cables.
Institutional certification option: 00 indicates that no specific institutional certification is required.
Probe tip material: Polyphenylene sulfide (PPS).
Probe housing material: AISI 303 or 304 stainless steel.
Operating and storage temperature: -51°C to + 177°C (-60°F to + 351°F).

The 3300 XL 8mm eddy current sensor system offers a maximum linear range of 80 mils (2 mm) and an output of 200 mV/mil, and is suitable for measuring radial vibration, axial (lateral) displacement, rotational speed and phase, etc.
