Description

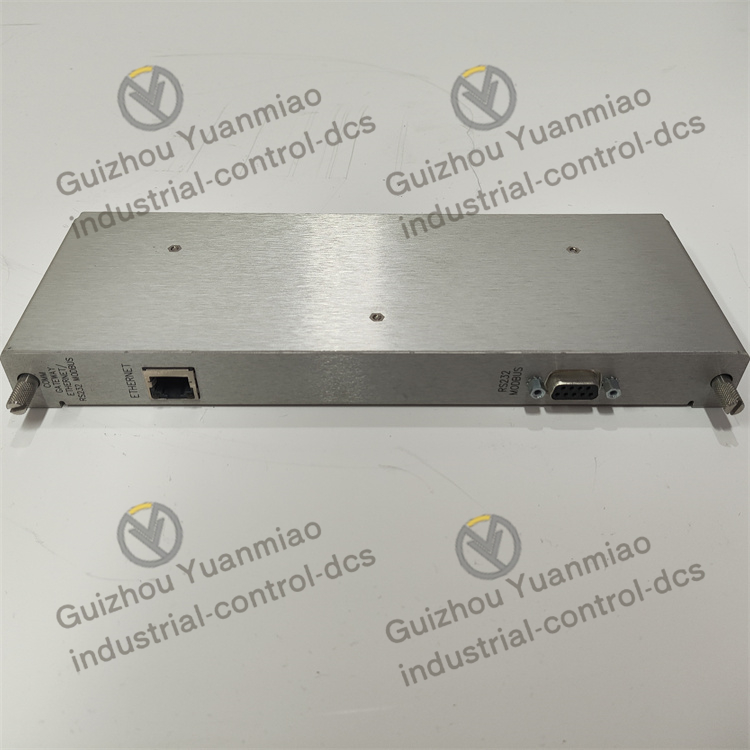

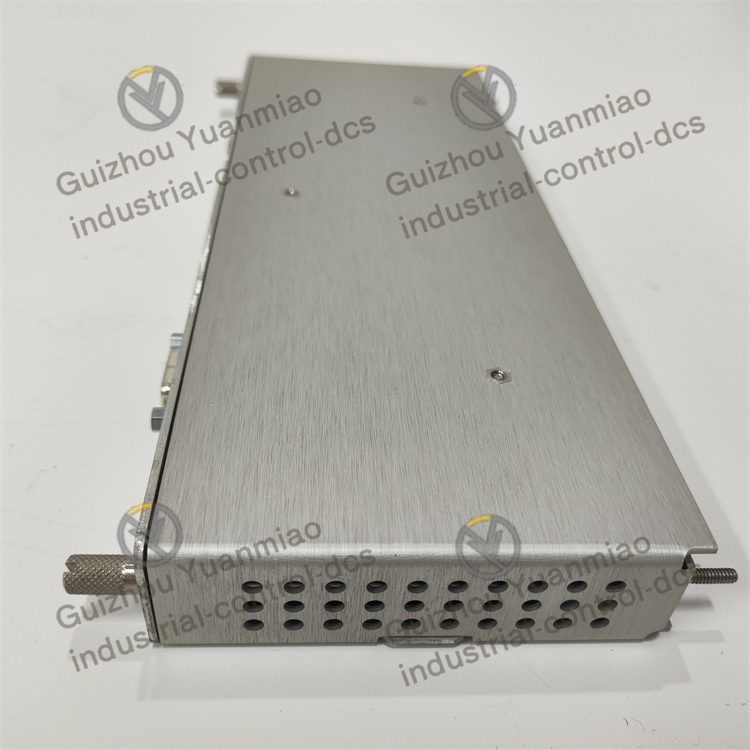

Bently  3500/93  display interface I/O module

Function: Provide local or remote visual indication of 3500 mechanical protection system information, including all channel, monitor, relay module, key phase module or tachometer module data, and support system event list display.
Installation method
19-inch EIA rack installation: Supports installation up to 100 feet away from 3500 systems.
Panel installation: It can be installed inside the cabinet or in panel openings up to 100 feet away.
Independent installation: Flush with the wall or panel, up to 4000 feet away from the 3500 system (when using external power).

Power supply
Built-in power supply: Supports installation within 100 feet.
External power supply: Supports installation up to 4,000 feet and offers two connection options: 115Vac and 230Vac.
Display feature: The backlight display unit requires an external power supply. Each 3,500 racks can support up to two displays at most.

Furthermore, the screen size of this monitor is generally 12.1 inches, with a resolution of 1024×768 pixels. It adopts TFT LCD display technology, has a brightness of 500cd/m², a contrast ratio of 1000:1, and a response time of 20ms. The operating temperature range is -20 ℃ to + 60℃, the storage temperature range is -30 ℃ to + 70℃, the protection grade is IP65, the power consumption is 15W, and it complies with CE, FCC, ROHS and other certifications.
