Description

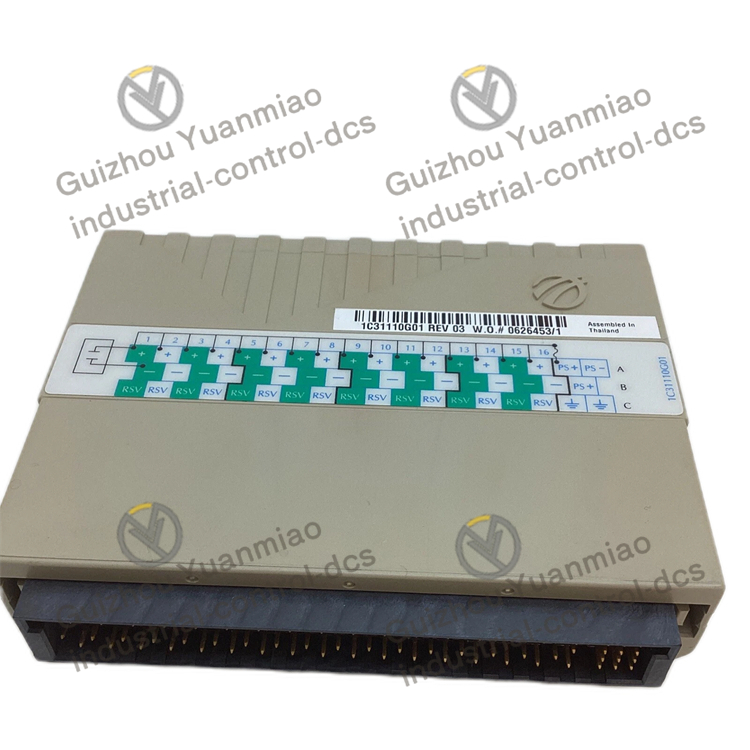

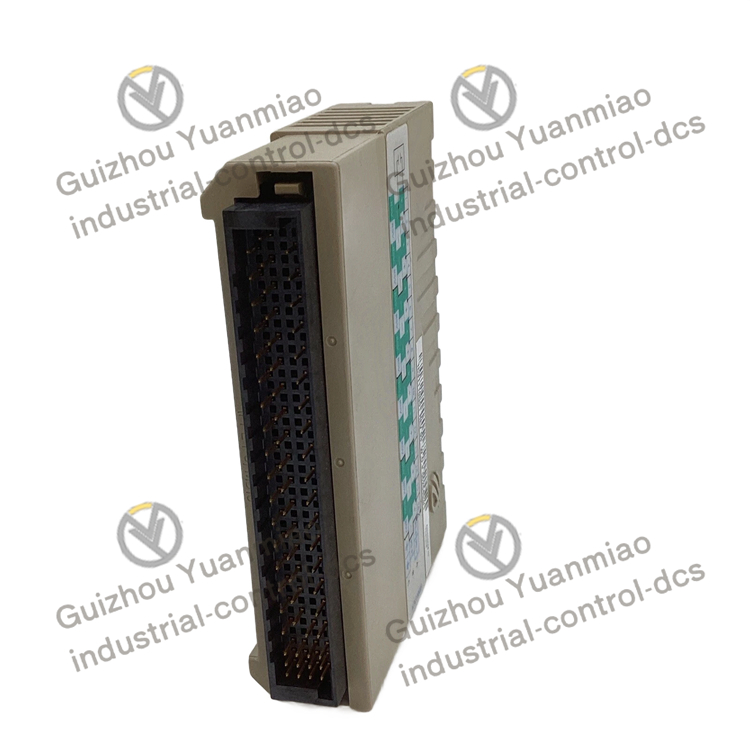

EMERSON  1C31110G01  single-ended SOE/digital input module

Electrical characteristics: Generally applicable to the input voltage range of 24V to 48V DC, it can adapt to different on-site power supply conditions.

Performance parameters
Input type: Supports single-ended SOE (Sequence of Events, event sequence recording) and digital input. It can receive switch signals and is used to monitor the status changes of equipment, such as the opening/closing of valves, the start/stop of motors, etc.
Number of channels: Generally, it has multiple input channels and can simultaneously connect to the signal output terminals of multiple external devices to achieve simultaneous monitoring of the status of multiple devices. However, there is no publicly available accurate information on the exact number of channels for the time being. You can refer to other modules in the same series to infer that it might be 16 channels or 32 channels.

Signal processing speed: It features a relatively fast signal processing speed, capable of accurately recording the chronological order of event occurrence, meeting the real-time requirements of industrial sites. For example, in the power system, the sequence of actions of each switch when a fault occurs can be precisely recorded, providing an accurate basis for fault analysis.
Resolution: It can precisely identify changes in input signals and accurately capture even weak signal changes, ensuring that the system acquires accurate equipment status information.

Other features
Diagnostic function: It is equipped with a complete built-in diagnostic function that can monitor the working status of the module in real time. If a fault is detected, it can promptly issue an alarm signal and feed it back to the operator through the system, facilitating quick location and elimination of faults and enhancing the reliability and maintainability of the system.

Configuration method: It can be flexibly configured through Emerson’s Ovation configuration management software. Users can customize the input type, channel parameters, event recording method, etc. of the module according to the actual application scenario and control requirements, to meet the monitoring requirements of different industrial processes.

Safety features: It is equipped with safety protection functions such as electrical isolation, which can prevent external electrical interference from entering the control system, protect the system from electromagnetic interference, power surges and other influences, and also avoid damage to external equipment caused by module failures, ensuring the safe and stable operation of the industrial production process.
