Description

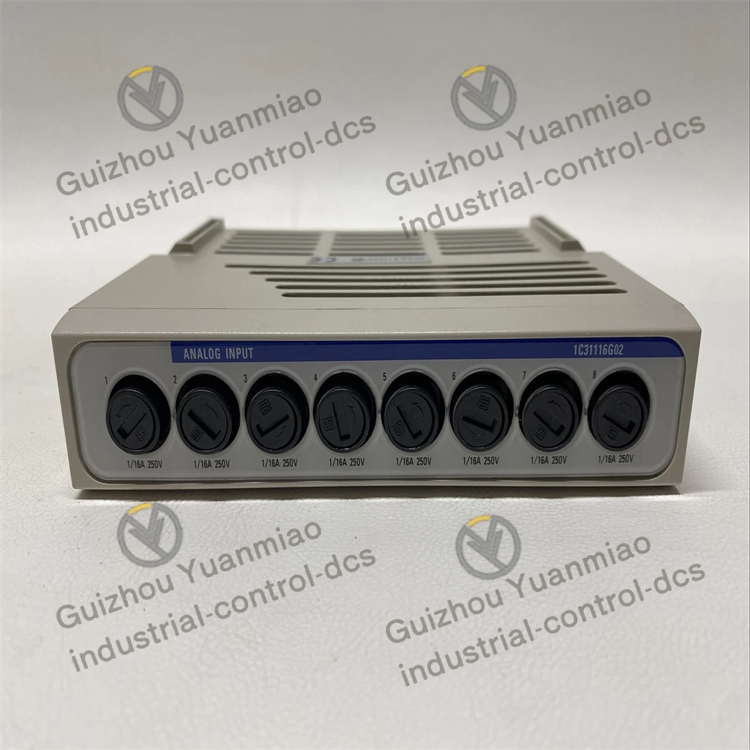

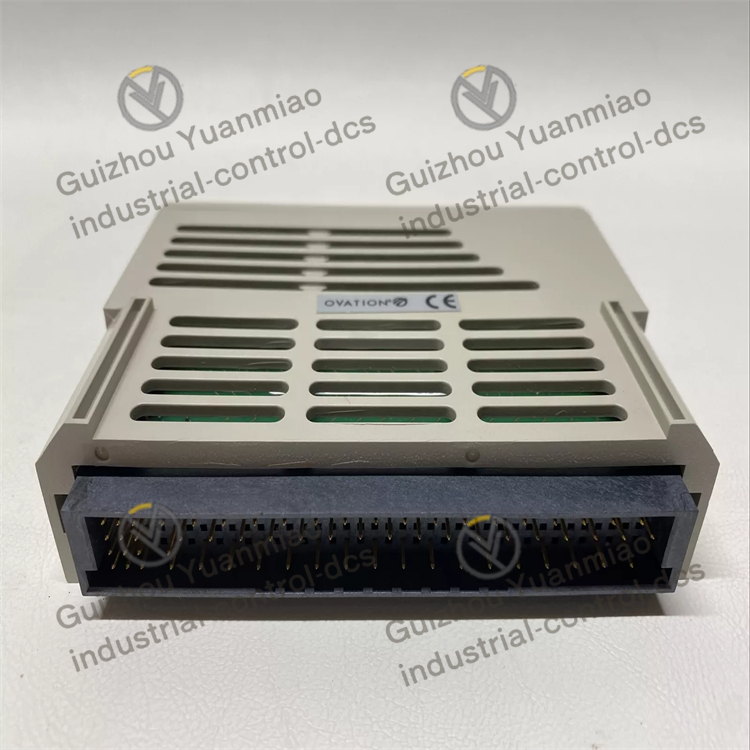

Emerson  1C31116G02  8-channel analog input module

Function and application: It is an 8-channel, field-powered analog input module used in Emerson Ovation process control systems. It can convert analog signals from field devices such as temperature sensors, pressure transmitters and flow meters into digital signals for reading and processing by the Ovation system.

Main characteristics
Input channels: It features 8 4-20mA analog input channels and can simultaneously collect 8 analog signals.
Power supply mode: On-site power supply, no external power supply required, convenient for use in different on-site environments.
Electrical isolation: There is 250V AC isolation between the input and output, which enhances the safety and anti-interference ability of the system.

Input current rating: 1/16A, capable of adapting to the output currents of various sensors.
Installation method: DIN rail installation is adopted, which is convenient for installation and maintenance in industrial control cabinets.
Programming configuration: Programming is carried out using Emerson Ovation SCADA software. The module can be configured for different input ranges, alarm points and scale factors to meet the requirements of various industrial applications.

Application fields: Although this product has been discontinued, it is still used in many industrial applications and is suitable for various industrial scenarios that require the collection of analog signals and digital processing, such as the power, chemical, and metallurgical industries.
