Description

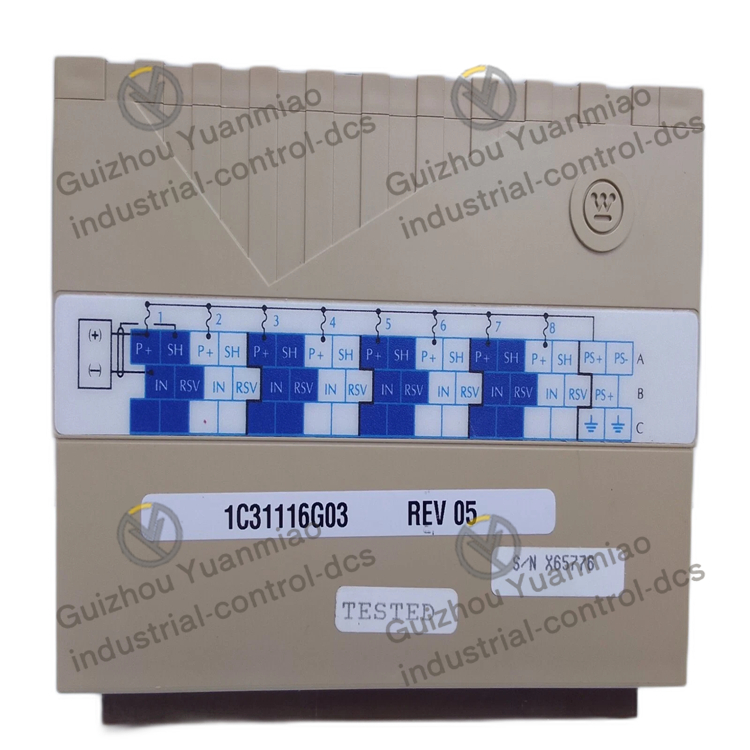

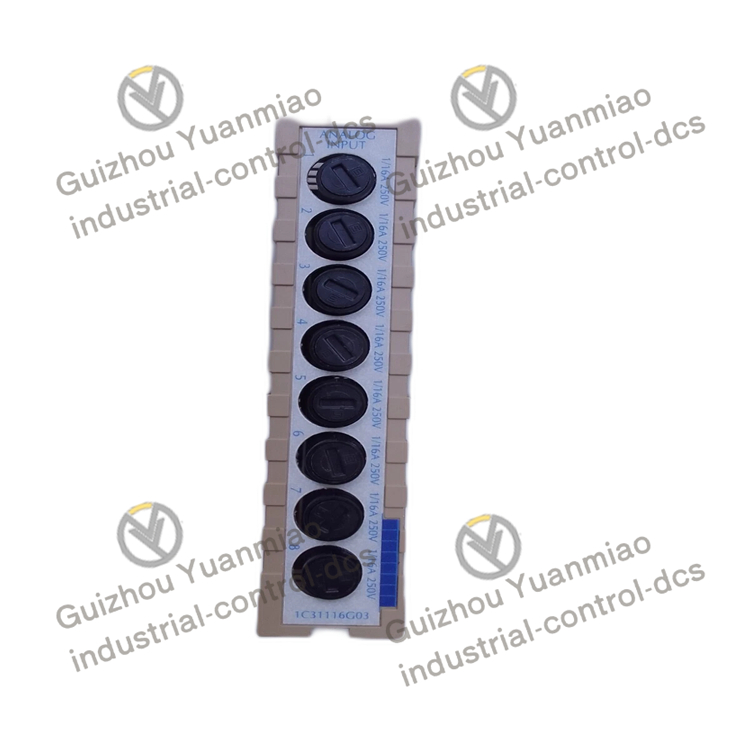

Emerson  1C31116G03  Analog input module

Function and application: It is mainly used to collect analog signals from industrial sites and convert them into digital signals for processing and analysis by control systems. It is widely applied in industries such as chemical engineering, biochemistry, pharmaceuticals, power, and light industry.

Main features:
Multi-channel input: It has 16 analog input channels and can simultaneously collect 16 analog signals. It supports input signal types of 0-10V DC or 4-20mA, which can meet the output requirements of various industrial field sensors.
High resolution: With a resolution of 12 bits, it can precisely collect and process analog signals, ensuring the accuracy and reliability of the data.

Easy to install and configure: It is convenient to install and compatible with all Ovation PLCs. It can be easily configured through the corresponding software to adapt to different industrial application scenarios.
Electrical characteristics: The working voltage is typically 240-360V, and the output frequency is 50Hz. The input impedance varies depending on the type of input signal. For voltage input, it is generally higher to avoid affecting the input signal. The current input is relatively low to ensure the accurate collection of current signals.

Environmental characteristics:
Operating temperature: It can operate normally within the temperature range of -40 °C to + 70°C, adapting to various harsh industrial environments.
Anti-interference capability: It has excellent anti-interference performance, capable of withstanding electromagnetic interference, vibration and shock in industrial sites, ensuring the stable operation of the module.
Diagnostic function: The module is equipped with a diagnostic function that can monitor its own working status, facilitating users to troubleshoot and maintain faults, promptly identifying and resolving potential issues, and reducing system downtime.
