Description

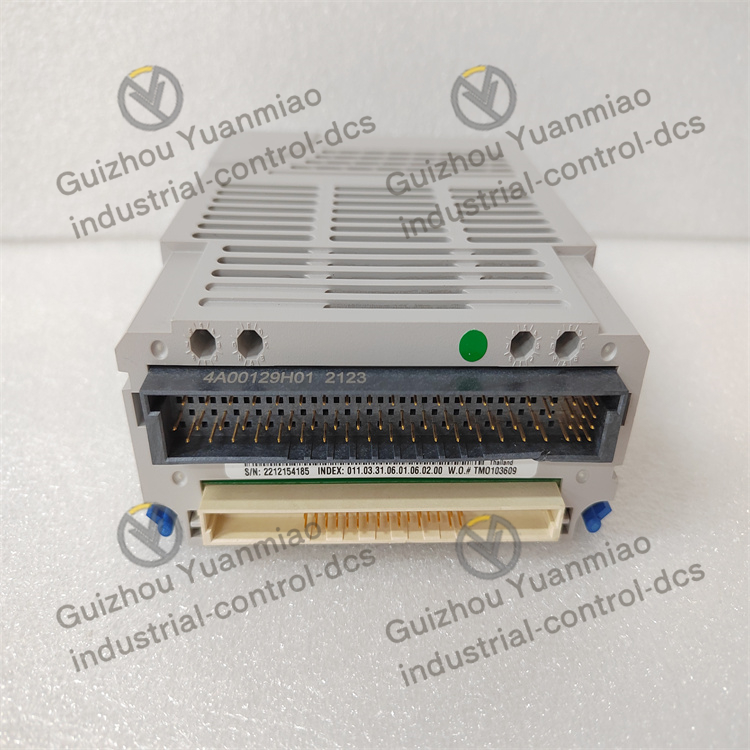

Emerson  1C31189G03  industrial control system module

Electrical parameters
Working voltage: 24V DC.
Input signal type: Analog/digital, capable of receiving 0-10VDC voltage signals or 0-20mA current signals.
Output signal type: Digital quantity, output signal range is 0-10VDC or 0-20mA.

Measurement parameters
Measurement range: 0 to 100,000 RPM. There are also data indicating a range of 0 to 10,000 RPM, depending on the actual application scenario and configuration.
Accuracy: It can usually reach ±0.05% of the full scale, providing high-precision speed feedback for equipment control.
Response time: Generally within milliseconds, it can quickly respond to changes in rotational speed and promptly feed back the measurement data to the control system.

Installation method: Standard DIN rail or panel installation.
Communication and Compatibility
Communication protocol: Supports Emerson Ovation protocol and is well compatible with other Ovation DCS components, facilitating integration into the entire control system.
Connection method: M12 connector is adopted to ensure the stability and reliability of signal transmission.

Environmental parameters
Operating temperature: -20°C to + 70°C.
Storage temperature: -40°C to + 85°C.
Humidity: 5% to 95%, non-condensing.
