Description

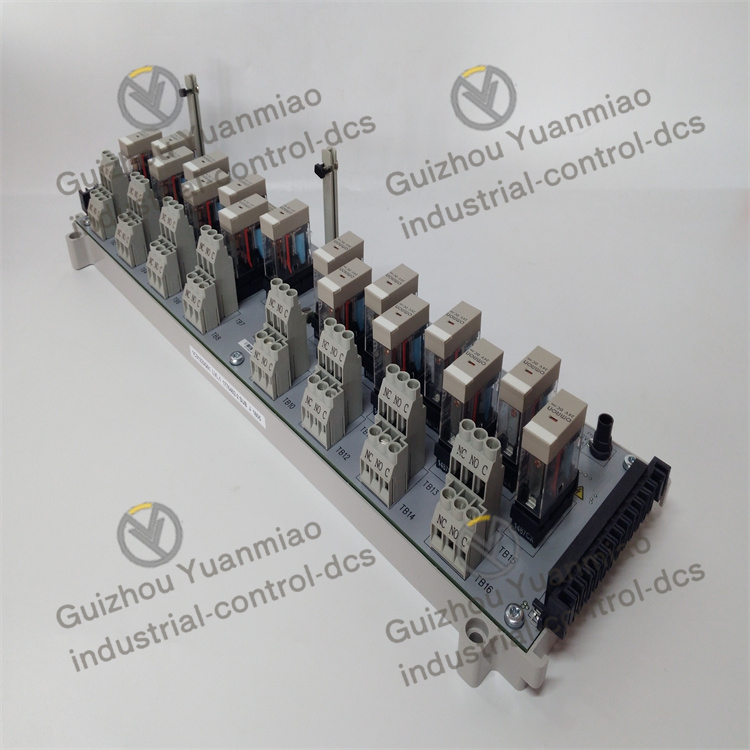

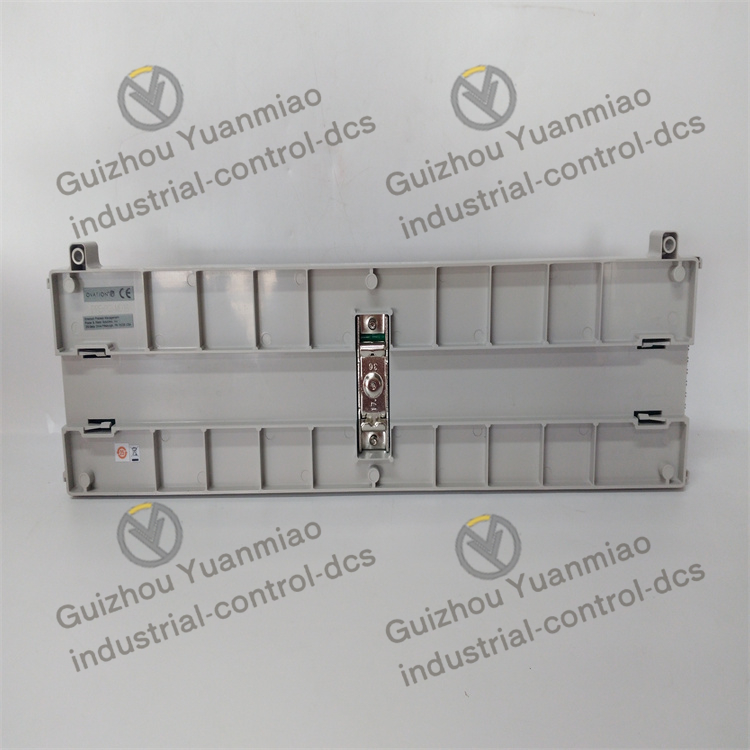

Emerson  1C31223G01  relay output module

Functions and Characteristics
Relay output control
High-reliability relays are adopted as output actuating elements, which can receive system control signals and convert them into switch outputs. They are used to drive external devices such as solenoid valves, contactors, and indicator lights, achieving start-stop control or state switching of industrial processes.
Modular design
Relay output base compatible with Ovation system (such as 1C31222G01), supports hot plugging, facilitating on-site maintenance and expansion; The module structure is compact, saving installation space.

Multi-channel integration
Usually, multiple independent relay channels (such as 8/16 channels) are integrated, and each channel can be separately configured as normally open (NO) or normally closed (NC) contacts to meet the requirements of different control scenarios.
Electrical isolation protection
Electrical isolation design (such as optocoupler isolation) is adopted between the output of each channel and the internal circuits of the system, effectively preventing external circuit interference from affecting the stability of the system, and at the same time avoiding damage to the module caused by equipment failure.

Status indication and Diagnosis:
Equipped with LED indicator lights, it can display the on-off status of each channel, the working power supply of the module and fault signals in real time, facilitating quick on-site problem identification. It supports self-diagnostic function, which can detect relay contact faults, abnormal power supply and other conditions and feed them back to the system.
