Description

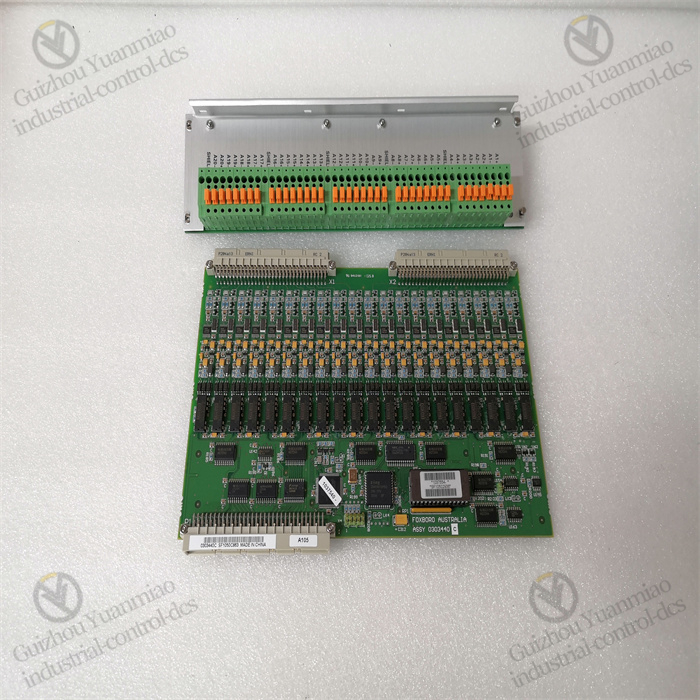

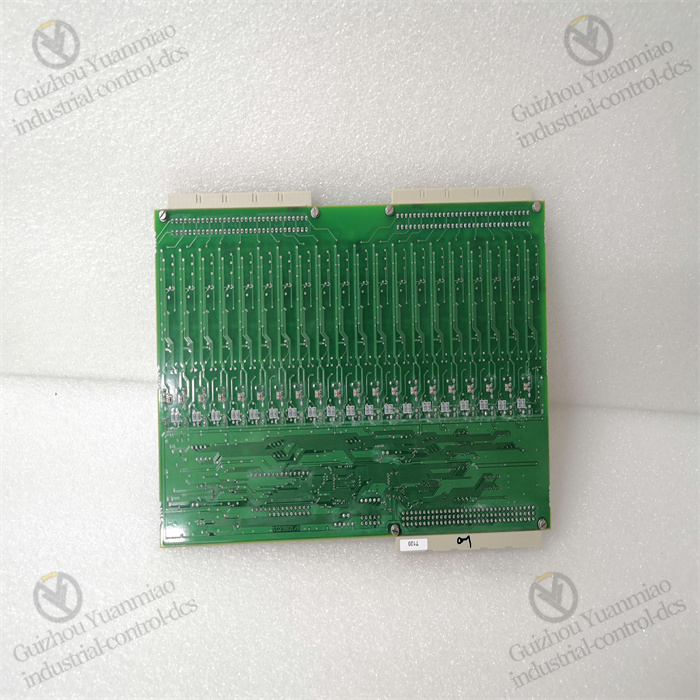

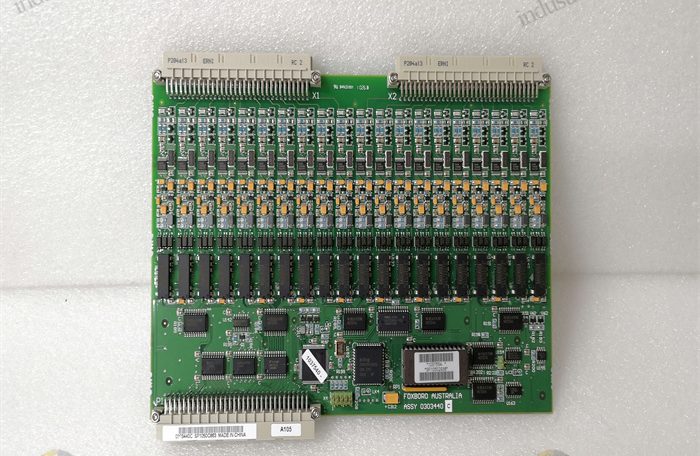

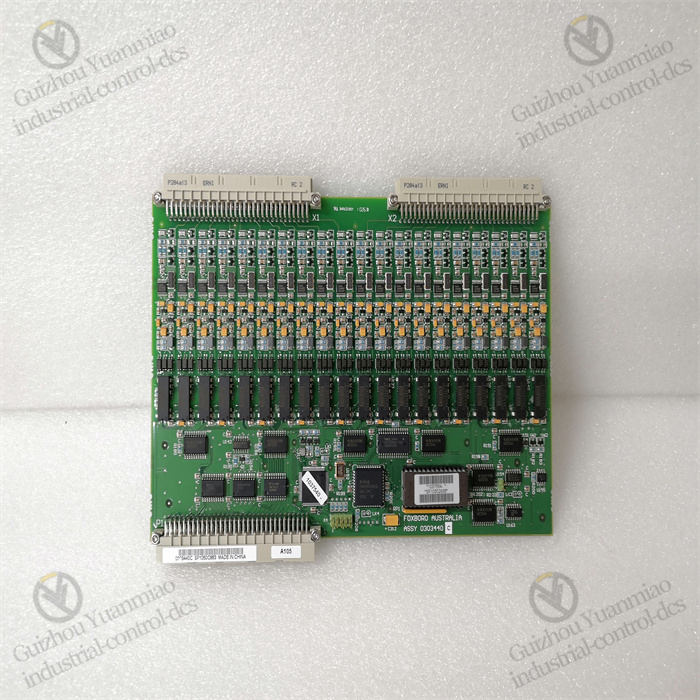

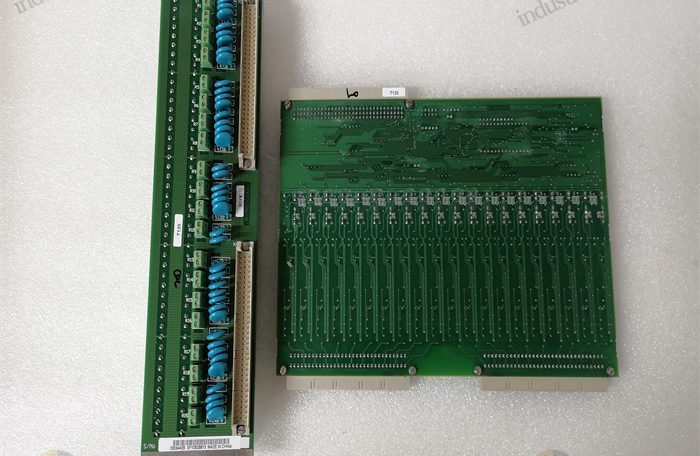

FOXBORO  0399071D 0303440C+0303443B  Combined Controller Processor Module

Basic Parameters:

• Input Signals: Supports thermocouples, thermal resistors, voltage, and current.
• Output Signal: 4-20mA.
• Supply Voltage: DC 24V.
• Measurement Range: -200℃~+1800℃.
• Accuracy: ±0.1%.
• Protection Level: IP65.
• Operating Temperature Range: -40℃~85℃.
• Maximum Operating Pressure: 3000psi.
• Dimensions: 232×52×8mm.
• Weight: 1.05 kg.

Functional Features:

• High-Precision Control: Suitable for industrial applications requiring high-precision control, it can accurately collect analog signals such as temperature, pressure, and flow, and perform signal conditioning and amplification.
• Strong Compatibility: Compatible with other automation solutions of FOXBORO, the modular design supports a wide range of analog and digital signal processing.

Functions and Uses

• Signal Acquisition and Processing: It can collect various types of analog signals such as thermocouples, thermal resistors, voltage, and current, measure temperatures in the range of -200℃~+1800℃, and process signals like pressure and flow. It conditions and amplifies these signals to ensure accurate reading by the module, providing precise data for subsequent control.
• Precise Control Output: It outputs a 4-20mA signal, which can be used to control various actuators, realizing precise control of parameters such as temperature, pressure, and flow in industrial processes, and is suitable for industrial application scenarios requiring high-precision control.
• Complex Process Control and Remote Monitoring: Especially suitable for complex process flows, it can perform coordinated control of multiple related parameters according to preset control strategies to ensure the stable operation of the production process. It also supports remote monitoring, facilitating operators to conduct real-time monitoring and control of the production process in the control room away from the site.
• System Compatibility and Integration: As a module of the FOXBORO I/A series, it is compatible with other automation solutions of FOXBORO, and can be easily integrated into the entire industrial automation system, working in collaboration with other modules to build a complete control system.

Application Fields

• Petrochemical Industry: It can be used in production processes such as oil refining, ethylene, and chemical fertilizers, to precisely control key parameters like temperature, pressure, and flow, ensuring the stable operation of complex process flows and improving production efficiency and product quality.
• Electric Power Industry: In thermal power plants and hydropower plants, it can participate in boiler control, steam turbine control, and auxiliary equipment control, helping to ensure the safe and stable operation of power plants and achieve efficient power generation.
• Metallurgical Industry: Suitable for scenarios such as iron and steel, non-ferrous metal smelting, it can control equipment like heating furnaces, rolling mills, and continuous casters, contributing to the automation and optimization of the production process and improving production quality and efficiency.
• Pharmaceutical Industry: In the pharmaceutical production process, it can precisely control various process parameters, meeting the strict requirements for parameters such as temperature, humidity, and pressure in the pharmaceutical process, and ensuring the stability and consistency of drug quality.
• Food Processing Industry: It can be applied in various links of food processing, such as beverage filling and food baking, realizing precise control of the production process, ensuring food quality and production safety, and improving production efficiency.
• Papermaking and Printing Industry: In the papermaking process, it can control parameters such as temperature, humidity, and flow in paper production to ensure stable paper quality. In the printing process, it can also precisely control related equipment to ensure printing accuracy and quality.
• Textile and Dyeing Industry: It can be used to control the operating parameters of textile equipment, as well as temperature and dye flow in the dyeing process, helping to improve the quality and production efficiency of textiles and realize precise production.
