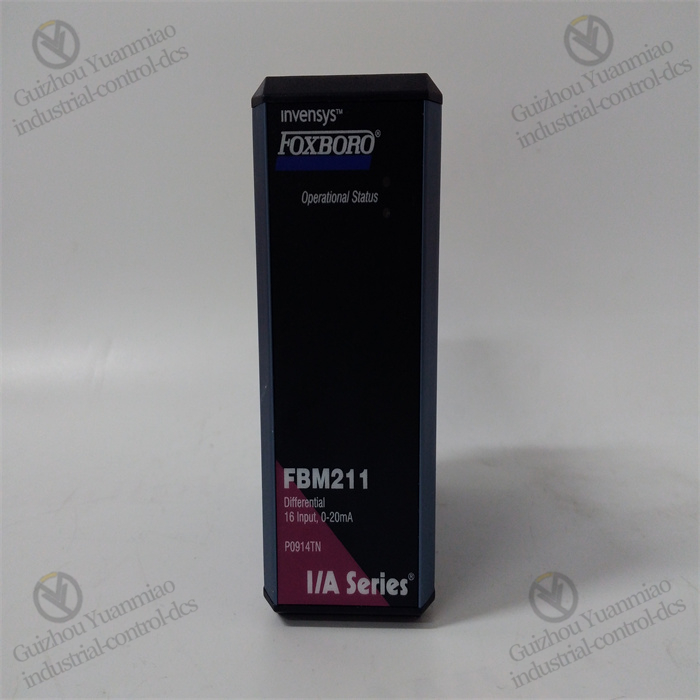

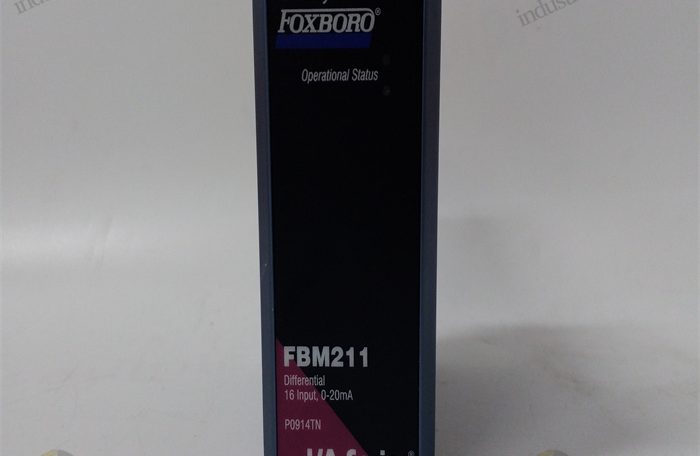

FOXBORO  FBM211  Core I/O Module

1. High-Precision Signal Processing and Adaptability

• Multi-signal Compatibility: Supports various analog input signal types (such as 4-20mA, 0-20mA, ±10V, thermocouples, RTD, etc.). A single module can be flexibly configured with mixed signal types, reducing the number of system modules.
• Ultra-High Resolution: Adopts a 24-bit Σ-Δ ADC, providing industry-leading measurement resolution (typically 0.0015%), and supports accurate capture of tiny signal changes (such as weak fluctuations of pressure transmitters).
• Adaptive Filtering: The built-in digital filter can dynamically adjust filtering parameters according to the on-site environment, effectively suppressing electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal stability in strong interference environments.

2. Redundant Design and High Availability

• Hot Standby Redundant Architecture: Supports 1:1 hot standby of dual modules. The active and standby modules synchronize data in real-time, with a switching time of less than 10ms, ensuring uninterrupted operation of critical control loops (such as temperature control of chemical reactors).
• Power Redundancy: Dual 24V DC redundant power supply with built-in power isolation protection. A single power supply failure does not affect the module’s operation, complying with the IEC 61508 SIL2 safety standard.
• Channel-Level Diagnostics: Each I/O channel independently monitors signal quality, supports open/short circuit detection and over-range alarm, and shortens fault location time to seconds.

3. Industrial-Grade Reliability and Protection

• Wide Temperature and Vibration Resistance Design: Operating temperature range of -40°C ~ +85°C, resistant to vibration (5-17Hz: 1mm amplitude; 17-2000Hz: 10g) and impact (100g, 11ms), adapting to extreme industrial environments (such as offshore drilling platforms).
• EMC Protection: Passes the full range of IEC 61000-4 electromagnetic compatibility tests, with anti-radio frequency interference up to 10V/m (80MHz-2.7GHz) and anti-electrostatic discharge (ESD) of ±15kV (air).
• Explosion-Proof Certification: Optional ATEX/IECEx explosion-proof certified versions are available, suitable for Zone 1/2 hazardous areas (such as petroleum refining plants).

4. Intelligent Configuration and Self-Learning Capability

• Plug-and-Play: Supports hot swapping. The module automatically identifies and loads configuration parameters after insertion, without manual programming, significantly reducing system maintenance time.
• Self-Calibration Technology: Built-in adaptive calibration algorithm can automatically adjust zero and range according to historical data, reducing the frequency of manual calibration (typical calibration cycle ≥12 months).
• Predictive Maintenance: Real-time monitoring of module health status (such as temperature, voltage, communication quality), early warning of potential faults through the DCS system, and reducing the risk of unplanned downtime.

5. Efficient Communication and System Integration

• Multi-Protocol Support: Integrates mainstream industrial protocols such as Modbus TCP/RTU, Profibus DP, and FOUNDATION Fieldbus, seamlessly accessing third-party control systems.
• High-Speed Data Transmission: Supports 100Mbps Ethernet communication, with a single module data refresh cycle ≤10ms, meeting the needs of high-speed control loops (such as robot motion control).
• Remote Configuration: Realizes remote configuration, diagnosis, and firmware upgrade through the Foxboro I/A Series or AVEVA system platform, supporting cross-regional centralized management.

6. Security and Compliance

• Data Encryption: Supports communication data encryption (such as AES-128) to prevent unauthorized access and data tampering, complying with industrial network security standards (such as IEC 62443).
• Audit Trail: Records all configuration changes and operation logs, meeting the requirements of regulations such as FDA 21 CFR Part 11 for data integrity (such as in the pharmaceutical industry).
• Redundant Communication: Supports dual-network port redundancy. When the main network fails, it automatically switches to the backup network to ensure reliable transmission of control commands.

• Power Industry: Accurate measurement and control of temperature, pressure, and flow of generator sets, supporting redundant configuration to ensure power supply continuity.
• Chemical Processes: Monitoring of reactor liquid level and pH value, with output readback function to ensure precise action of control valves and prevent material leakage.
• Oil and Gas Extraction: Stably collects wellhead pressure and temperature data in harsh environments such as deserts or offshore platforms, supporting remote monitoring.
• Smart Factories: As an edge-layer I/O device, it uploads on-site sensor data to the industrial Internet of Things platform in real-time to support big data analysis.
