Description

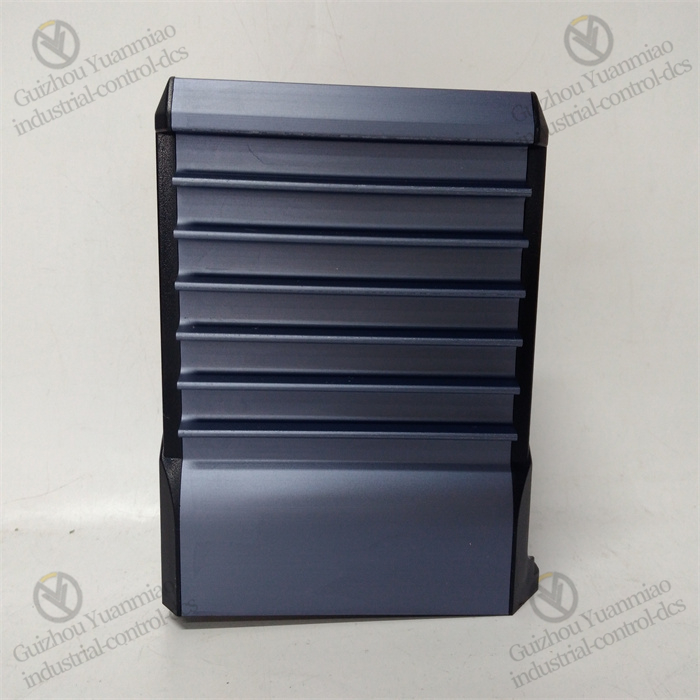

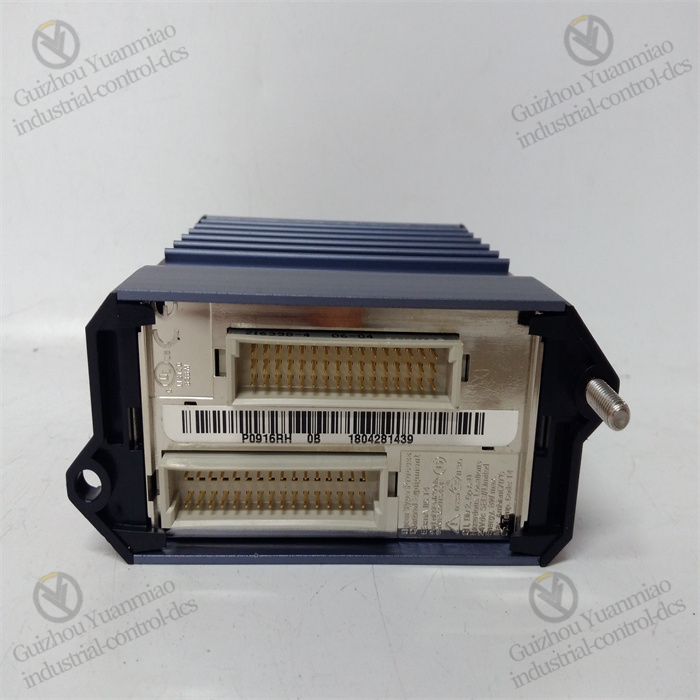

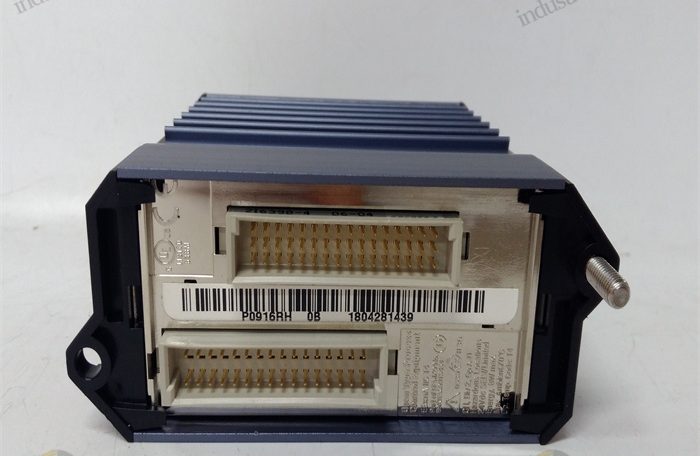

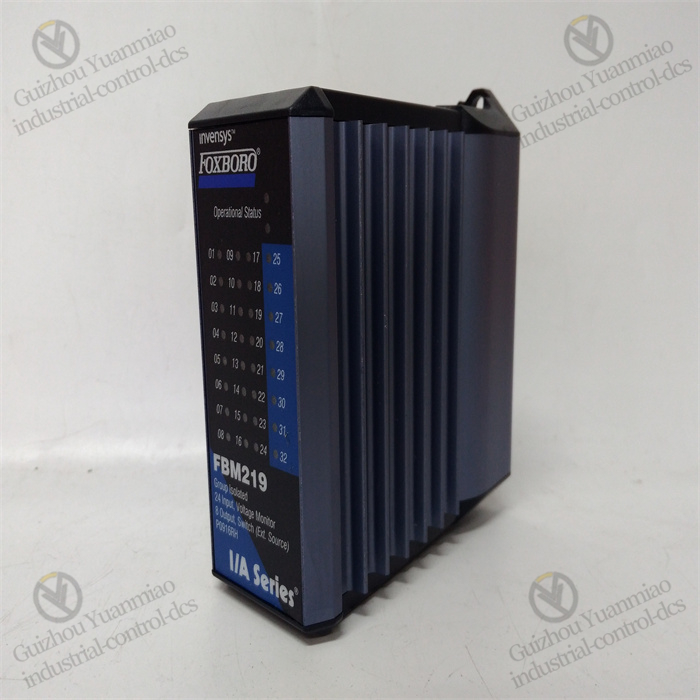

Foxboro FBM219 Discrete Input/Output module
Foxboro FBM219 is a high-performance discrete input/output module, which is part of the Foxboro® I/A Series distributed control system. The following is a detailed introduction to it:
Main Features
- Rich Channel Configuration: Equipped with 24 independent input channels and 8 independent output channels, it can meet the signal access needs of various devices.
- Diverse Signal Support: Supports discrete input/output signals of multiple voltages, with both input and output types being dry contacts.
- Electrical Isolation Design: There is isolation protection between input and output, which can effectively enhance the safety of the system and reduce signal interference.
- Strong Environmental Adaptability: Adopts an aluminum shell, suitable for G3 (severe) environments, with a protection level of IP66, and can work stably in harsh environments. Its operating temperature range is -40°C to +85°C.
- Flexible Installation Methods: Can be installed via DIN rail or rack mounting, facilitating installation and layout in different industrial scenarios.

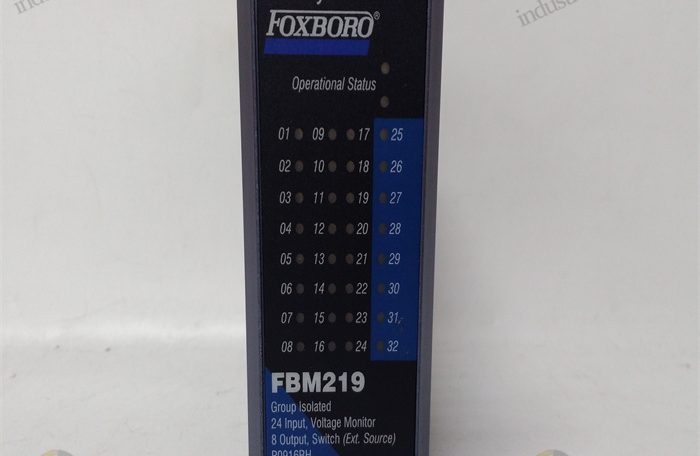

- Intuitive Status Display: LED indicators are embedded in the front of the module, which can clearly display the operating status of the Fieldbus module and the discrete status of each input/output point, facilitating real-time monitoring and fault troubleshooting by users.
- Flexible and Diverse Configuration: Supports flexible configuration options, such as input filtering time, fail-safe configuration, etc., which can be personalized according to actual application needs.
- Strong Communication Capability: Supports communication interfaces such as Modbus, enabling convenient communication with other devices or systems to realize data transmission and interaction.
- Fast Response Speed: The response time is less than 20 milliseconds, which can quickly respond to input signals and output control signals in a timely manner, ensuring the real-time performance of the system.
Technical Parameters
- Operating Voltage: Usually 24V DC.
- Dimensions: 138mm x 112mm x 44mm.
- Terminal Components: Supports various types of terminal components, with the maximum cable length reaching 30 meters.
Application Scenarios
- Power Systems: Can be used to monitor and control voltage and current in power systems, monitor the switch status of substations, and control the start and stop of power equipment, etc., to ensure the stable operation and reliable power supply of the power system.
- Industrial Automation: In various industrial production lines, it can realize the monitoring and control of equipment operating status, such as monitoring the start-stop signals and limit signals of production equipment, and controlling the actions of related equipment according to these signals, ensuring the orderly progress of the production process.
- Building Automation: Can be used to monitor and control power and environmental parameters in buildings, such as controlling the lighting system and air conditioning system in buildings, automatically adjusting the operating status of equipment according to signals from environmental sensors, and achieving energy-saving and comfortable environmental control.
- Water Treatment: In the water treatment process, it can control the start-stop of water pumps and the opening and closing of valves, while monitoring signals from water quality monitoring equipment, ensuring the normal operation of the water treatment process and that the effluent quality meets standards.
- Food Processing: Can be applied to monitoring and control in the food processing process, such as controlling the operation of food processing equipment and monitoring various sensor signals on the production line, ensuring the quality and safety of food processing. In addition, in industries such as petrochemicals and metallurgy, it can also be used to monitor and control various parameters in the production process, providing guarantee for the stable operation of industrial production.
