Description

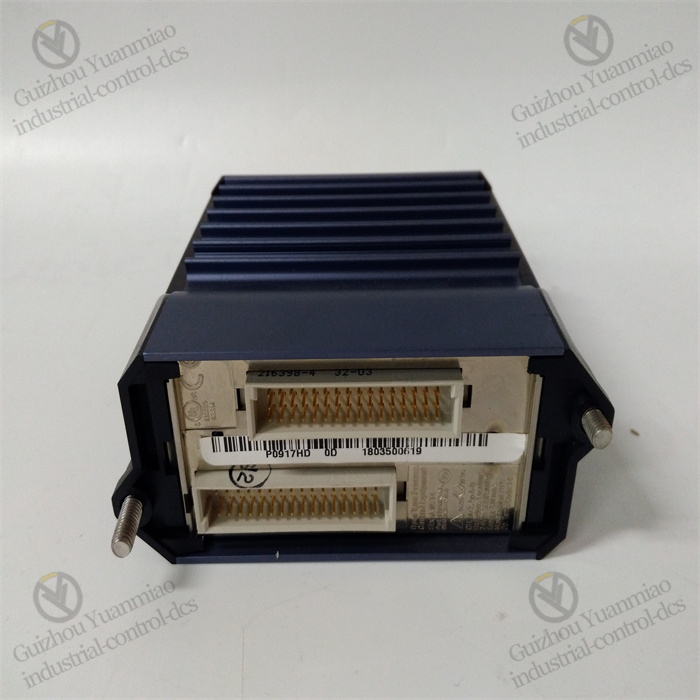

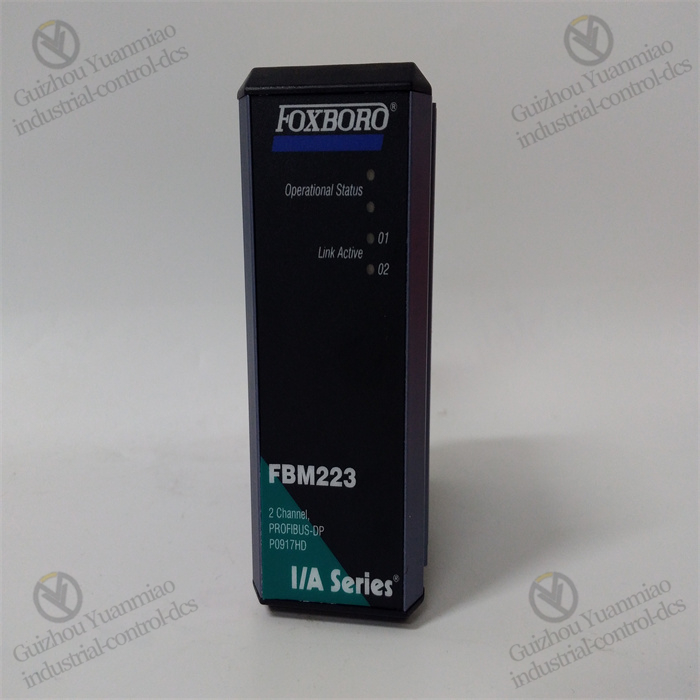

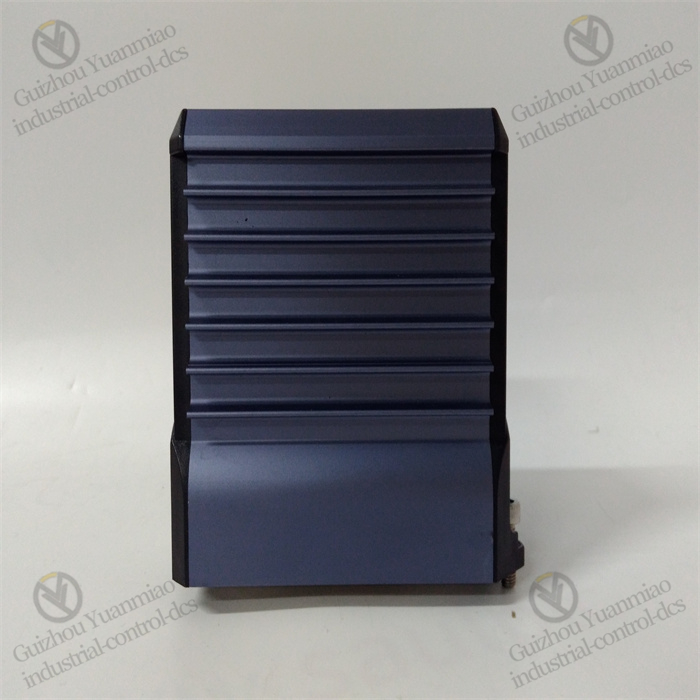

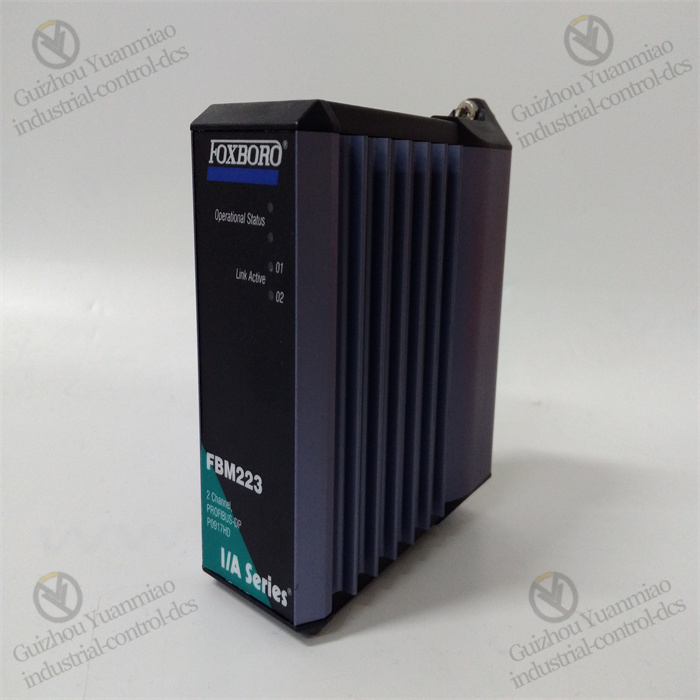

Foxboro  FBM223  I/A series modules

Main Features

• Rich Support for Communication Protocols: Supports multiple communication protocols such as Modbus, HART, PROFIBUS-DP, and FOUNDATION Fieldbus, enabling seamless integration with various automation systems.
• High-Precision Measurement: Equipped with a high-precision analog-to-digital converter to ensure high accuracy of measurement results, which can accurately convert analog signals into digital signals for system processing.
• Diverse Input Signal Types: Supports input from various analog sensors such as current, voltage, thermocouples, and RTDs, meeting the connection needs of different types of sensors and applicable to various complex industrial measurement scenarios.
• Strong Expandability: Supports expansion with multiple modules. Users can flexibly increase the number of modules according to actual application requirements to meet control and monitoring needs of different scales.
• Simple Installation and Configuration: Features good usability with relatively simple installation and configuration processes, allowing easy integration into existing automation systems, reducing the time and workload of installation and debugging.
• Good Environmental Adaptability: Adopts a robust design with dustproof, waterproof, and shockproof properties, suitable for harsh industrial environments and capable of stable operation in relatively complex industrial sites.

Technical Parameters

• Operating Temperature Range: -10°C to 60°C.
• Storage Temperature Range: -20°C to 70°C.
• Dimensions: 85mm x 125mm x 55mm.
• Processor: 32-bit processor.
• Memory: 16MB.
• Input Voltage: 24VDC.
• Input Current: 20mA.
• Output Type: Relay contact output.
• Communication Interface: Supports interfaces such as Modbus RTU.
• Number of Channels: 16 analog input channels.
• Input Signal Type: 0-10VDC or 4-20mA.
• Output Signal Type: 0-10VDC or 4-20mA.
• Repeatability: ±0.5%.
• Humidity Range: 95% (non-condensing) at 20°C to 60°C.

Application Scenarios

• Industrial Automation: Can be used for automated control on production lines, measuring and controlling various process parameters in the production process, while monitoring and controlling the operating status of discrete equipment to ensure stable operation of the production line.
• Building Automation: Applicable to building management systems, realizing monitoring and control of equipment such as air conditioners, lighting, and elevators in buildings, and automatically adjusting equipment operation according to environmental parameters and user needs to achieve energy conservation and comfort.
• Medical Equipment: Can be used for the control and monitoring of medical equipment, ensuring precise operation and safe use of medical equipment, and providing reliable support for medical diagnosis and treatment.
• Transportation: Plays a role in the automated control of transportation systems, such as controlling traffic lights, intelligent parking lots, and other equipment, improving the efficiency and safety of transportation.
• Other Fields: Also widely used in industries such as petrochemicals, electric power, metallurgy, chemicals, food processing, and papermaking, for monitoring and controlling various parameters in the production process to ensure the smooth progress of production and product quality.
