Description

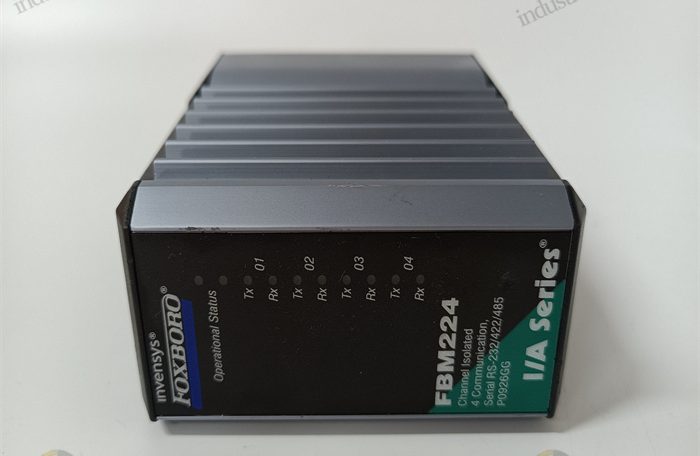

Foxboro FBM224 Modbus communication interface module

Main Features

• Protocol and Interface Standards: Compliant with the Modbus protocol, supporting RS-232, RS-422, or RS-485 communication interface standards, enabling communication with various devices equipped with corresponding interfaces and protocols.
• Data Integration: It can integrate the data of Modbus slave devices into a part of the Foxboro control database, facilitating unified management and data processing.
• Flexible Configuration: A configurator for Windows or Solaris is provided, which allows easy setting of port communication parameters such as communication interface standards, baud rate, parity check, etc. It can also set transaction specifications for slave device files, including scanning rate, function codes, etc. Each Modbus device can specify up to 64 independent transactions, and during configuration, it will automatically check whether the range of selected values and supported options is valid.
• Large Number of Connected Devices: Each FBM224 can access up to 64 devices to read or write data. From the connected Foxboro control station, it can connect up to 2000 Distributed Control Interface (DCI) data for reading or writing operations.
• Rich Support for Data Types: It can support various data types such as analog input or output values (integers or IEEE single-precision floating-point numbers), single digital input or output values, multiple (packaged) digital input or output values (up to 32 digital points per connection), etc.
• Adjustable Scanning Rate: Users can adjust the scanning rate and phase of each cycle to reduce the load on the FBM224 and/or Modbus devices. The default scanning rate is 500ms, with a range from 500 milliseconds to 255 seconds.
• Sturdy Shell: Adopts a sturdy extruded aluminum shell, which can provide physical and electrical protection for the circuit, adapt to harsh environments, and meet the relevant requirements specified in ISA standard S71.04.
• Convenient Maintenance: When disassembling or replacing the module, there is no need to remove the on-site equipment terminal cables, power supply, or communication cables, facilitating maintenance and overhaul.
• Redundant Communication: It is connected to the fieldbus communication module or control processor through a redundant 2Mbps module fieldbus, and can accept communication from any path (A or B) of the redundant fieldbus. If one path fails, the module will continue to communicate through the active path, ensuring the continuity of communication.

Application Scenarios

• Process Control Field: Widely used in process control systems in industries such as chemical industry and metallurgy. The production processes in these industries are usually complex, involving numerous process parameter monitoring and control, and need to connect various types of on-site equipment such as flow meters, pressure transmitters, temperature sensors, etc. The FBM224 module supports multiple communication protocols, can communicate efficiently with these devices, transmit the collected data to the control system, and receive instructions from the control system at the same time, realizing precise control of the production process and ensuring production stability and product quality.
• Power System: Can be applied to automation systems in power plants and substations. In power plants, it can connect various monitoring equipment of generator sets to obtain real-time operating parameters of the units, such as speed, temperature, power, etc., so as to perform real-time monitoring and optimal control of the power generation process and improve power generation efficiency. In substations, it can communicate with relay protection devices, measurement and control devices, etc., to realize automated management of substations and ensure reliable power supply.
• Water Treatment Field: Used for automated control of water treatment processes. Whether it is the water source purification treatment in waterworks or the sewage treatment in sewage treatment plants, it is necessary to monitor and control the water quality parameters and equipment operating status in multiple links. The FBM224 module can connect devices such as pH sensors, turbidity sensors, and liquid level sensors in the water treatment process to the system, realizing automated monitoring of the entire water treatment process and ensuring that the water treatment effect meets the standards.
• Other Industrial Automation Scenarios: Suitable for various industrial automation application scenarios that require Modbus communication. For example, in industries such as food processing and pharmaceutical manufacturing, although the production processes are different from those in the chemical and metallurgical industries, there is also a need for automated control and data collection of production equipment. The FBM224 module can be conveniently connected to production equipment in these industries, realizing interconnection between devices, improving the degree of automation and production efficiency of the production process, and also helping to realize management functions such as quality traceability.
