Description

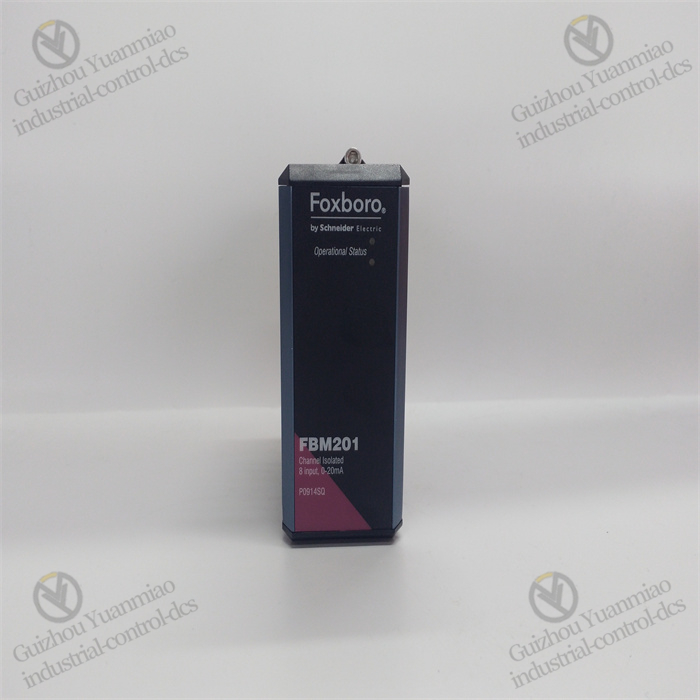

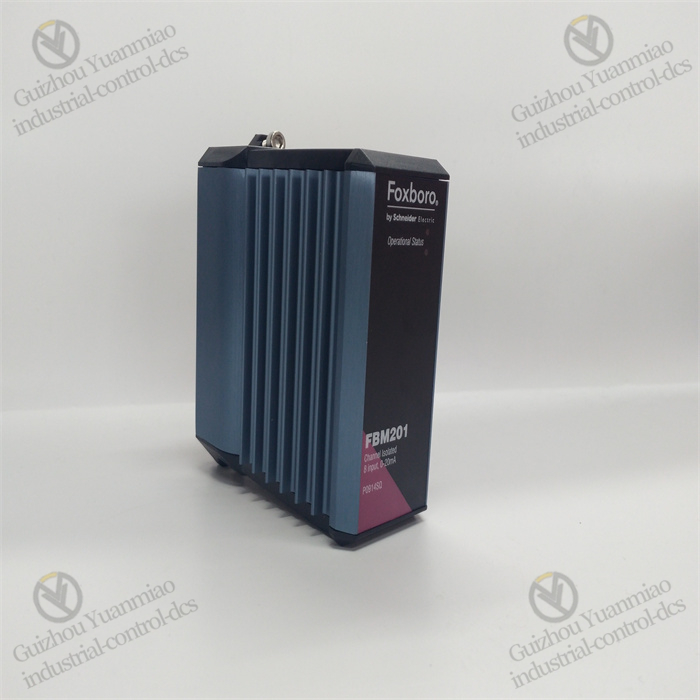

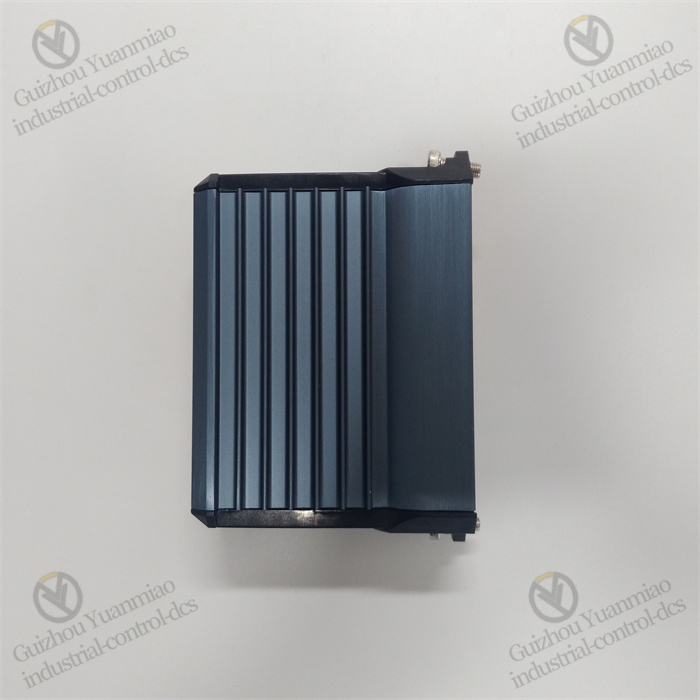

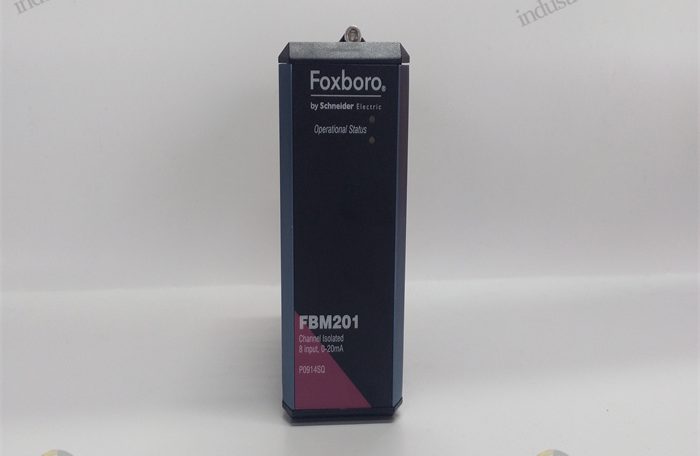

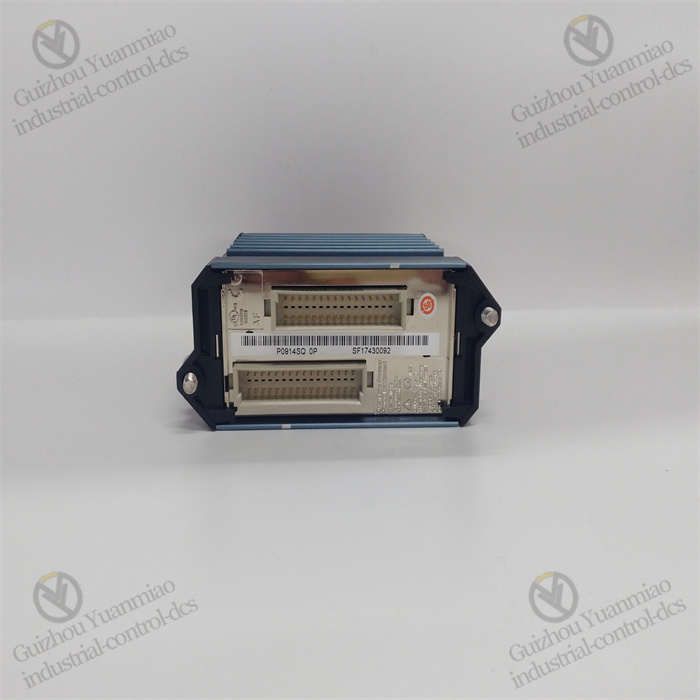

Foxboro P0914SQ Analog Input Module

• Multi-Channel Independent Input
  Equipped with 8 independent analog input channels, it supports simultaneous acquisition of multiple different types of analog signals (such as current and voltage). The channels are isolated from each other to avoid signal interference, making it suitable for multi-point monitoring needs in complex industrial scenarios.
• Wide-Range Signal Compatibility
  It supports standard industrial signals: 4-20mA, 0-20mA, 0-10V, ±10V, etc. The signal type can be flexibly switched through software configuration without hardware modifications, adapting to diverse sensor interface requirements.
• High Resolution and Accuracy
  It adopts a 16/24-bit A/D converter (depending on the model configuration), providing high-precision analog-to-digital conversion with a resolution of up to 0.01%. This ensures accurate capture of small signal changes, meeting the needs of fine control scenarios (such as temperature monitoring of chemical reaction kettles).

• Redundancy and Fault-Tolerance Mechanism
  It supports hot-swappable functionality, allowing for the replacement of faulty modules during system operation without shutdown, reducing the risk of production interruptions.
  Optional redundant power input is available to ensure power supply stability and avoid system failure caused by a single point of failure.
• Anti-Interference and Protection Capability
  Built-in EMI/RFI filters effectively resist electromagnetic interference and comply with industrial electromagnetic compatibility (EMC) standards.
  It has an IP20 protection rating (or higher optional), which can adapt to harsh environments such as dust and humidity, reducing the impact of environmental factors on signal acquisition.
• Fault Self-Diagnosis
  It real-time monitors the module status (such as power failure, channel abnormality) and actively feeds back fault information through LED indicators or system alarms, facilitating quick location and repair.

• High-Speed Data Transmission
  Through the I/A Series dedicated backplane bus or FOXBORO High-Speed Ethernet (HSE) interface, it achieves high-speed data exchange with the controller, ensuring real-time performance (typical response time <10ms).
  It supports open protocols such as Modbus RTU/TCP, enabling seamless integration with third-party devices and enhancing system scalability.
• Software Configuration Tools
  Visual configuration can be performed with Foxboro’s I/A Series Configuration Tools, allowing for the setting of ranges, filtering parameters, alarm thresholds, etc., simplifying the debugging process.
  It supports channel configuration grouping, enabling the assignment of different types of signals (such as temperature, pressure) to independent groups for convenient system management.

• Intrinsic Safety Certification
  Some models have passed explosion-proof certifications such as ATEX, IECEx, and CSA, making them suitable for safe applications in hazardous areas (such as petrochemical and natural gas extraction).
  It supports SIL2/SIL3 safety integrity levels and can be used in critical Safety Instrumented Systems (SIS).
• Data Integrity Assurance
  Built-in CRC check and data redundancy mechanisms ensure the accuracy of transmitted data, avoiding data errors caused by noise or interference.

• Process Variable Monitoring
  Typical applications include the acquisition of analog signals such as temperature, pressure, flow, and liquid level, widely used in industries such as chemical engineering, electric power, and water treatment.
• Integration with Intelligent Sensors
  It supports HART protocol communication, enabling the reading of digital information from intelligent sensors (such as equipment diagnostics and calibration data) to achieve more comprehensive equipment status monitoring.

• Compact Design
  Adopting a modular structure, it has a small volume (typical size: 150mm × 100mm × 50mm), saving space in the control cabinet and suitable for high-density installation.
• Low-Power Operation
  The power consumption per channel is usually <1W, with low overall energy consumption, meeting industrial energy-saving requirements and resulting in lower long-term operating costs.
• Long Lifespan and Easy Maintenance
  The Mean Time Between Failures (MTBF) is >50,000 hours, with a design lifespan of over 15 years, reducing replacement frequency.
  It supports online firmware upgrades, and module performance can be improved through the system’s remote update function.
