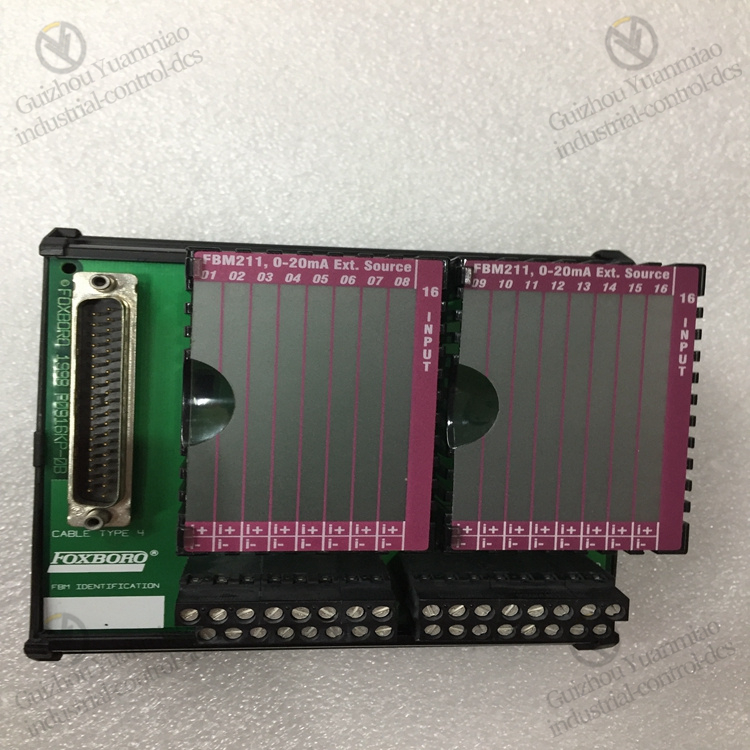

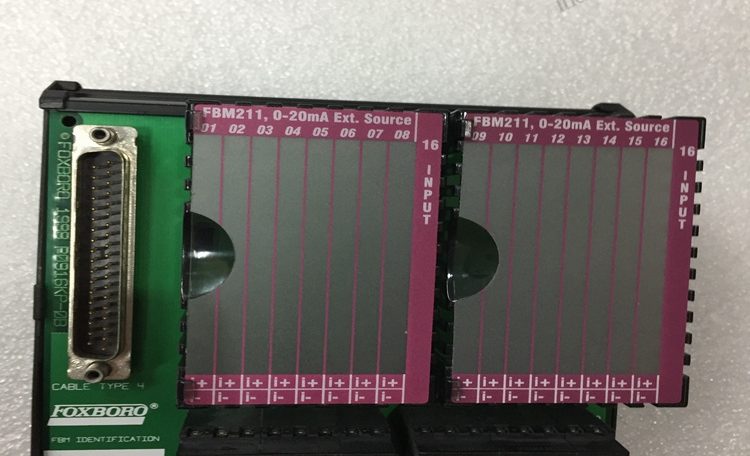

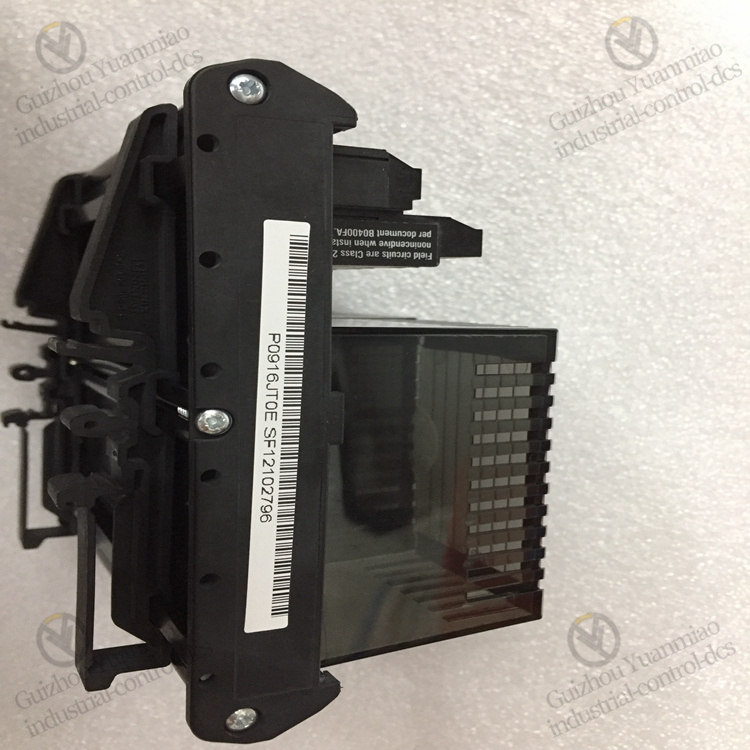

Foxboro P0916JT is an I/O module for the industrial automation field, belonging to Foxboro’s well-known I/A Series control system. It is mainly positioned as a digital input/output module, focusing on the collection and control of switching signals in industrial sites. With high reliability and flexible adaptability, it is widely used in various industrial scenarios. The following is a detailed description of its core features, technical parameters, and typical applications:

I. Core Functions and Features
Multi-type Digital Signal Processing Capability
It supports various digital input signals such as dry contacts and wet contacts (e.g., limit switches, buttons, relay contact states). The input voltage range usually covers industrial standard levels such as 24V DC and 120V AC, and can be directly connected to various on-site switching devices.
The output end supports relay output or transistor output, which can drive actuators such as solenoid valves, contactors, and indicator lights to achieve precise control of actions such as equipment start-stop and valve switching.

High Reliability and Anti-interference Design
1500Vrms electrical isolation is adopted between channels and between the module and the system, effectively resisting electromagnetic interference (EMI) and ground loop interference in industrial sites, and protecting the safety of the module and upstream and downstream equipment.
It has overvoltage and overcurrent protection functions, which can withstand instantaneous voltage fluctuations or short-circuit shocks, reducing the risk of damage to the module caused by on-site faults.

Flexible Channel Configuration
It is usually equipped with 16-32 independent digital input/output channels (the specific number varies slightly depending on the model subdivision). Input and output channels can be configured independently to meet the needs of centralized management of switching signals in different scenarios.
It supports channel-level diagnosis, which can real-time monitor states such as disconnection, short circuit, and signal abnormality, and feed back to the controller through the system bus, facilitating quick fault location.

Industrial-grade Environmental Adaptability
It has a wide operating temperature range (-40°C to +70°C) and can adapt to harsh industrial environments such as high and low temperatures, dust, and vibration.
When the protection design is combined with standardized installation, it can meet the basic requirements of industrial sites for dust and moisture prevention, ensuring long-term stable operation.

System Compatibility and Usability
It is seamlessly integrated into the Foxboro I/A Series DCS system, supports communication with the main controller via Fieldbus or Ethernet, and is compatible with the system’s configuration software (such as Foxboro Control Configuration Tool), facilitating parameter configuration and status monitoring.
It supports hot-swap function, allowing module replacement without stopping the system, reducing production interruption time and improving maintenance efficiency.

II. Typical Technical Parameters (Reference Configuration)

III. Typical Application Fields
Process Industry (Petroleum, Chemical, Natural Gas)
In the pipeline systems of refineries and chemical plants, it collects digital signals such as valve limit switches (full open/full close states) and pump operation states (running/stopping), and controls devices such as solenoid valves and alarm lights through output channels to realize logical interlocking and safety monitoring of processes.
It is compatible with switching devices in explosion-proof areas (needs to be used with explosion-proof junction boxes) to meet safety specifications in hazardous environments.

Power Industry (Power Generation, Power Transmission and Transformation)
In substations, it monitors the opening and closing states of circuit breakers and disconnectors, controls the operating mechanism through output channels, and cooperates with the protection system to realize remote control and fault tripping logic of power equipment.
It can withstand the strong electromagnetic environment of the power system and ensure the accuracy of switching signal transmission.

Manufacturing and Production Lines
In automobile assembly lines and packaging production lines, it connects photoelectric sensors of conveyors (to detect the presence of workpieces) and limit switches of robotic arms (home/limit positions), and controls the start-stop of conveyors and the action of pneumatic grippers through output channels to realize automatic linkage of the production process.
The multi-channel design can manage signals of multiple stations at the same time, meeting the high-density control requirements of the production line.

Water Treatment and Environmental Protection
In sewage treatment plants, it collects the operating status of grid machines and sludge pumps, controls the switching of dosing valves and agitators, and cooperates with the system to realize time sequence control of water treatment processes.
It adapts to humid and corrosive gas environments to ensure long-term stable operation.

Metallurgy and Building Materials
In the steel rolling production lines of steel plants, it monitors the state of emergency stop buttons of rolling mills and the operation signals of roller tables, and controls brakes and indicator lights through output channels to ensure production safety and equipment coordination.

Summary
Foxboro P0916JT has the core advantages of high-reliability digital signal processing capability, flexible channel configuration, and industrial-grade environmental adaptability. It is a key component connecting on-site switching devices and the control layer in industrial automation systems, widely serving fields such as process control, manufacturing, and electric power, and providing solid support for the collection and control of switching signals for the stable operation of the system.
