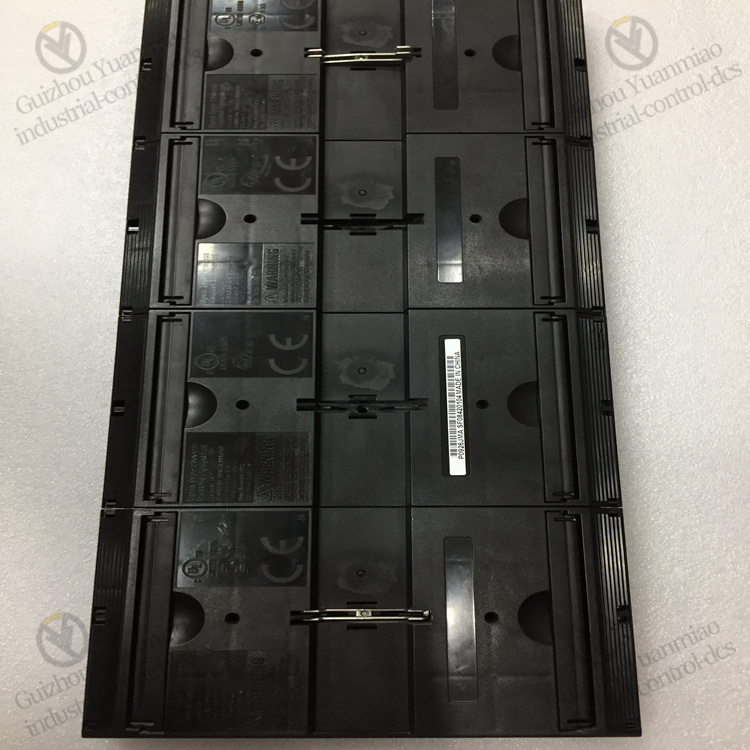

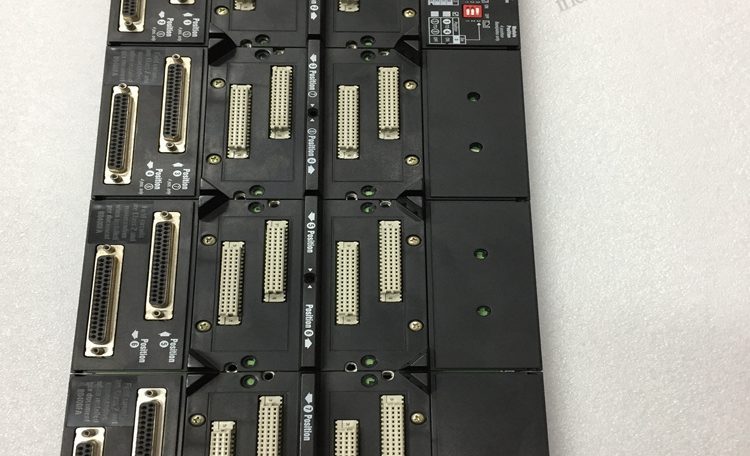

Foxboro P0926JM Digital Input/Output Module
As a digital input/output module, Foxboro P0926JM is an important part of Foxboro’s industrial automation control system. It is mainly used to realize the collection (input) of digital signals in industrial sites and the output of control commands, and plays a key role in connecting on-site equipment with upper-level control systems in the automated control process. The following is an introduction from the aspects of core functions, working principles, typical characteristics and application scenarios:
Core Functions
- Digital Input (DI) Function: Receives digital signals from industrial sites (such as switching signals, including the start-stop status of equipment, the on-off status of valves, the on-off signals of sensors, etc.), converts these physical signals (usually voltage or current signals) into digital quantities (0 or 1) recognizable by the control system, and transmits them to the upper controller for processing.
- Digital Output (DO) Function: Receives digital control commands (0 or 1) from the upper control system, converts them into electrical signals that can drive on-site executive equipment (such as relay actions, solenoid valve switching, etc.), and realizes the control of on-site equipment, such as starting/stopping motors, opening/closing valves, etc.
Working Principles
Signal Conversion and Isolation
- For digital input: After the switching signal of the on-site equipment (such as 24V DC or 110V AC) enters the module, it first passes through an optoelectronic isolation or electromagnetic isolation circuit to prevent on-site interference signals from entering the control system and ensure the purity of the signal. Then, through a signal conditioning circuit (such as filtering, level conversion), the signal is converted into a standard digital signal (usually TTL level) recognizable by the microprocessor inside the module.
- For digital output: After receiving the digital command from the controller, the module processes it through internal logic, converts the low-level signal into a power signal that can drive on-site equipment (such as 24V DC output or 220V AC output) through a drive circuit (such as a relay, transistor or thyristor), and at the same time, uses an isolation circuit to prevent on-site high voltage or interference from reversely affecting the control system.
Data Interaction and Control
The module communicates with the upper controller (such as a DCS controller or PLC) through an internal bus (such as a dedicated bus matching the Foxboro I/A series DCS), and transmits the status of the input digital signal in real time, or receives and executes the output control commands issued by the controller. Some models may have local logic processing capabilities, which can realize simple independent control logic and reduce dependence on the upper controller.
Status Monitoring and Fault Diagnosis
The module is usually built with a self-diagnostic function, which can monitor its own hardware status in real time (such as power failure, channel failure, etc.), and feed back fault information to the control system through the communication bus, facilitating maintenance personnel to troubleshoot problems in a timely manner and improving the reliability of the system.
Typical Characteristics
- High Reliability: Adopting industrial-grade design, it has the characteristics of anti-electromagnetic interference (EMI), anti-vibration, and wide temperature operation (usually supporting -40℃ ~ +70℃ or a wider range), adapting to harsh industrial environments.
- Isolation Protection: The input/output channels, the internal circuit of the module, and between channels usually adopt optoelectronic isolation or electromagnetic isolation, with a high isolation voltage (such as above 2500V AC), which effectively prevents damage to the module and system caused by on-site high voltage and surges.
- Flexible Channel Configuration: Common multi-channel designs (such as 8 channels, 16 channels, etc.), input/output channels can be flexibly configured according to needs to meet the signal collection and control needs in different scenarios.
- Strong Compatibility: As a supporting module for the Foxboro I/A series DCS, it has excellent compatibility with this series of control systems, can be seamlessly integrated into the distributed control system, supports standard industrial communication protocols, and is convenient for system expansion and upgrading.
Application Scenarios
- Industrial Automation Production Lines: Used to collect start-stop signals of conveyor belts, in-place signals of sensors, etc. (digital input) on the production line, and output signals to control the actions of motors, solenoid valves and other equipment (digital output), realizing automatic control of the production process.
- Process Control Field: In industries such as chemical industry, petroleum, and electric power, it is used to monitor the on-off status of pumps and valves (input), and control the actions of actuators (output), cooperating with the control system to achieve precise regulation of the production process.
- Building Automation: In intelligent buildings, it collects switching signals of access control systems and fire alarms (input), controls the start and stop of lights and air conditioners (output), and realizes automatic management of building equipment.
- Equipment Monitoring Systems: Used for status monitoring of industrial equipment, such as collecting fault alarm signals of equipment (input), outputting signals to control alarm lights, buzzers, etc. (output), and timely feeding back abnormal equipment status.
In conclusion, the Foxboro P0926JM digital input/output module realizes efficient interaction between on-site signals and the control system in the industrial automation system through stable signal conversion and reliable communication capabilities, and is a key component to ensure the smooth operation of the automated process.
