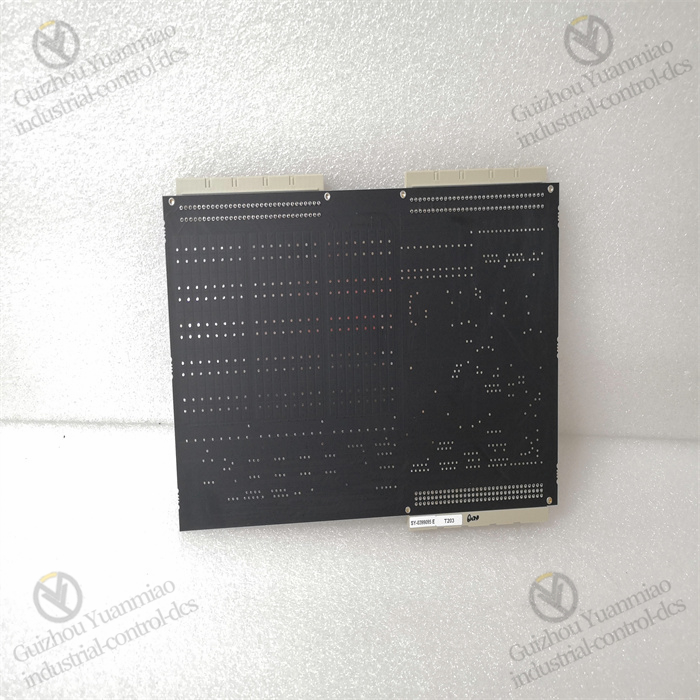

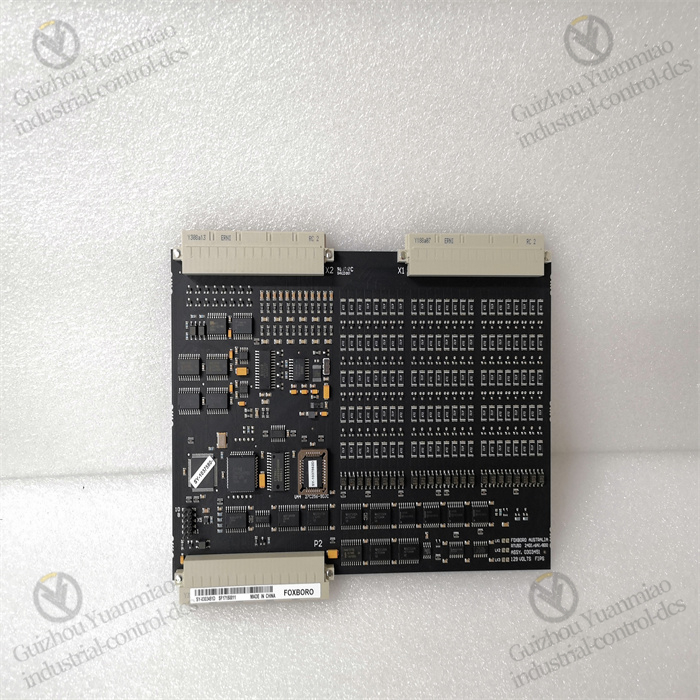

FOXBORO SY-0399095E is a counter board module suitable for industrial automation fields. It features functions such as online upgrade and overload protection, and can work stably in harsh environments. The specific introduction is as follows:

Basic Information: Originated in the United States, it adopts a sturdy die-cast aluminum housing, can be installed in non-ventilated areas, and has passed CE certification.

Functional Features: It can provide Online Image Upgrade (OLUG) for fault-tolerant FCP280 and also support Enhanced Online Image Upgrade (EOLUG) during process operation, which helps prevent major problems in local control processes. It is equipped with CP overload protection function, which can notify operators when FCP280 is close to its performance limit.

Display Function: Equipped with a Liquid Crystal Display (LCD), it can display letter errors as well as real-time roles and status, facilitating users to monitor the operation status of the module in real-time and detect abnormal situations promptly.

Network Connection: It can be connected to the Foxboro DCS control network via standard optical fiber or copper 100Mbps Ethernet cable, realizing data transmission and system integration with other devices, and facilitating centralized management and control in industrial control systems.

Fieldbus Support: Each fieldbus port on the standard FCP280 baseboard supports 2Mbps or 268Kbps HDLC fieldbus, which can meet the connection needs of various fieldbus devices and enable efficient communication with various sensors and actuators in industrial equipment.

Control Capability: Using multi-functional control algorithms and various FBMs (Fieldbus Modules), it can provide control capabilities for a wide range of process applications, and is suitable for various industrial control scenarios such as chemical industry, oil and gas, and pharmaceutical industry.

Adaptability to Working Environment: It can operate in G3-level harsh environments, has strong anti-interference ability and environmental adaptability, and can work stably in complex industrial environments.

Application Scenarios

Petrochemical Industry: In processes such as oil refining and chemical raw material production, it is necessary to accurately count and control the flow of materials and the number of batches. This module can cooperate with on-site sensors (such as flow meters, level meters, etc.) to record the passing amount of materials or reaction batches in real-time. At the same time, it can realize centralized monitoring and control by connecting to the Foxboro DCS system, ensuring the orderly progress of the production process and avoiding raw material waste or production accidents caused by counting errors.

Power Industry: In links such as boiler water supply and steam transportation in power production, it is necessary to count and statistics the number of cycles of media and the number of valve actions to evaluate the operating status and service life of equipment. The SY-0399095E module can stably collect relevant data, and its overload protection function can avoid interference to the counting process caused by sudden fluctuations in the power system, ensuring the accuracy of data and providing a reliable basis for equipment maintenance and fault early warning.

Pharmaceutical Industry: Pharmaceutical production has extremely high requirements for process accuracy, such as the number of drug fillings and the counting of packaging processes. This module can work in special environments such as clean and explosion-proof environments (in line with industrial environment grade standards). It ensures that the output and quality of each batch of drugs meet the standards through accurate counting. At the same time, its online upgrade function can update the system without interrupting production, reducing the impact of downtime on production.

Metallurgical Industry: In the smelting process of iron and steel, non-ferrous metals, it is necessary to count the conveying amount of raw materials and the number of formed products in real-time. The sturdy housing of the module can withstand harsh environments such as high temperature and dust. Its fieldbus support function can communicate efficiently with various sensors and actuators in metallurgical equipment, realizing precise control of the smelting process and improving production efficiency.

Water Treatment Industry: In processes such as sewage treatment and tap water production, it is necessary to count the number of cycles of water flow and the operation cycle of treatment units. This module can stably collect relevant data and upload it to the control system, helping operators grasp the progress of water treatment and the operating status of equipment to ensure that water quality meets the standards. At the same time, its anti-interference ability can cope with the complex electromagnetic environment at the water treatment site.

In conclusion, the FOXBORO SY-0399095E counter board module, with its reliability and adaptability, plays an important role in industrial control scenarios that require accurate counting, real-time monitoring and stable operation, and is an indispensable part of industrial automation systems.
