Description

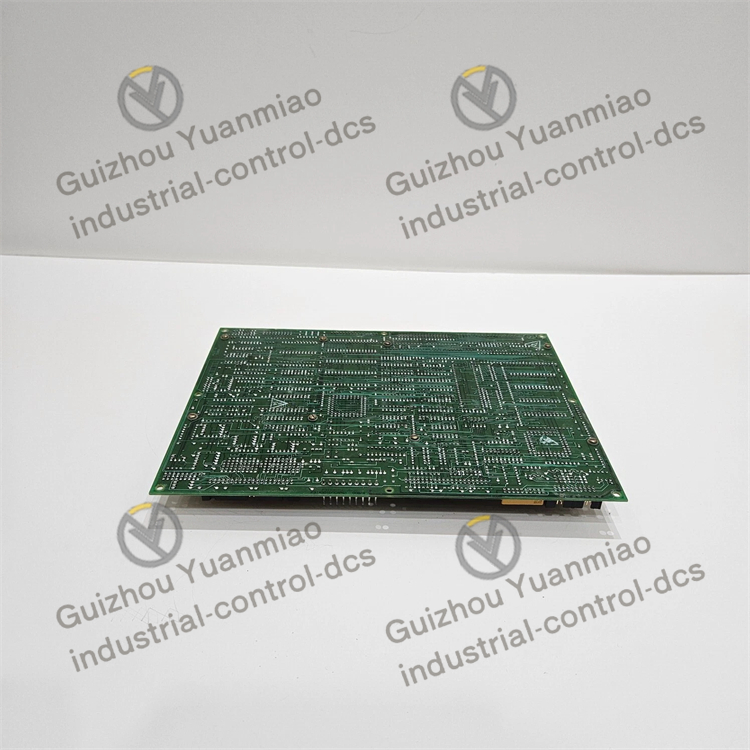

GE  531X301DCCAFG2  Main drive control board

Hardware composition:
Integrated circuits: The surface design features over 80 integrated circuits, including EPROMS and FPGA (Field Programmable Gate Array), which can achieve rich logic functions and data storage.
Analog components: Equipped with multiple analog inverters, analog operational amplifiers, and analog/drivers, they are used to process analog signals, achieving signal conversion, amplification, and driving.
Resistors and capacitors: There are more than 30 resistor network arrays, and traditional metal film resistors are also used. Capacitors are usually made of materials such as polyester or ceramics and are used to stabilize the voltage and current in circuits.

Functional features:
Control processing: Integrated with the Intel 80186 CPU, it has certain data processing and control capabilities, and can precisely control the connected devices or systems.
Processor restart: There is a small button switch on the board. After downloading new software to the EEPROM, you can use this switch to restart the processor, which is convenient for software updates and system debugging.
Log function: It records the time when alarms occur and are cleared at a resolution of 62ms. It can also record turbine operation events such as the meshing of rotating gears or the closing of generator circuit breakers at the same time label resolution. Users can define and modify these events, which is helpful for troubleshooting and system operation analysis.

Electrical specification:
Power input: The power supply of the Mark V panel can come from multiple sources, including two 120/240V AC power supplies and/or one 125V DC power supply. Each power input source (two AC and two DC sources) must pass through a separate external 30A double-pole thermal-magnetic circuit breaker before being connected to the Mark V panel. The power supply board of each core within the panel is powered by a standard 125V DC panel distribution bus.

Application fields: Mainly applied in control systems (DCS, PLC, TSI, SIS), panel controllers, human-machine interfaces and display panels, servo motors, encoders and resolvers and other related fields, it plays a key driving control role in GE’s turbine control and other systems.
