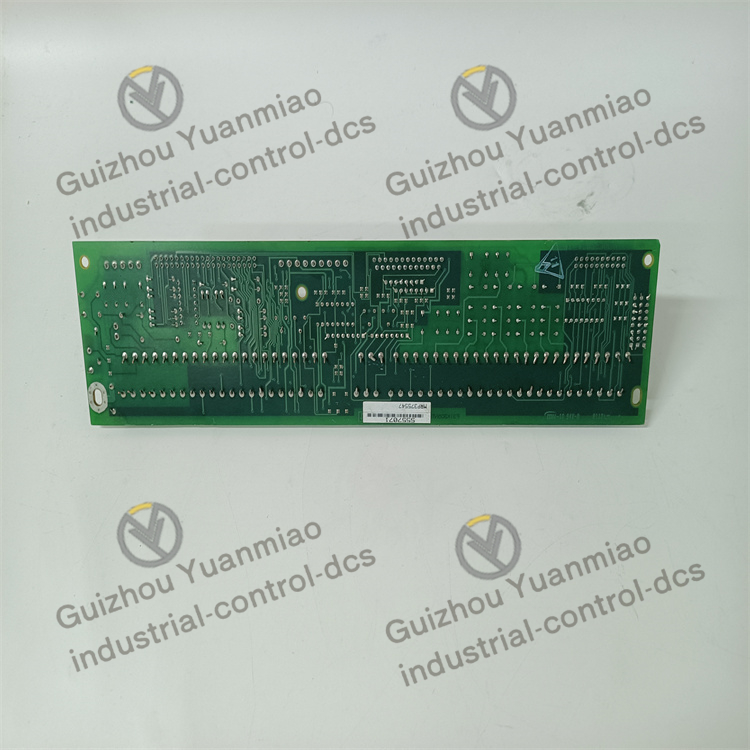

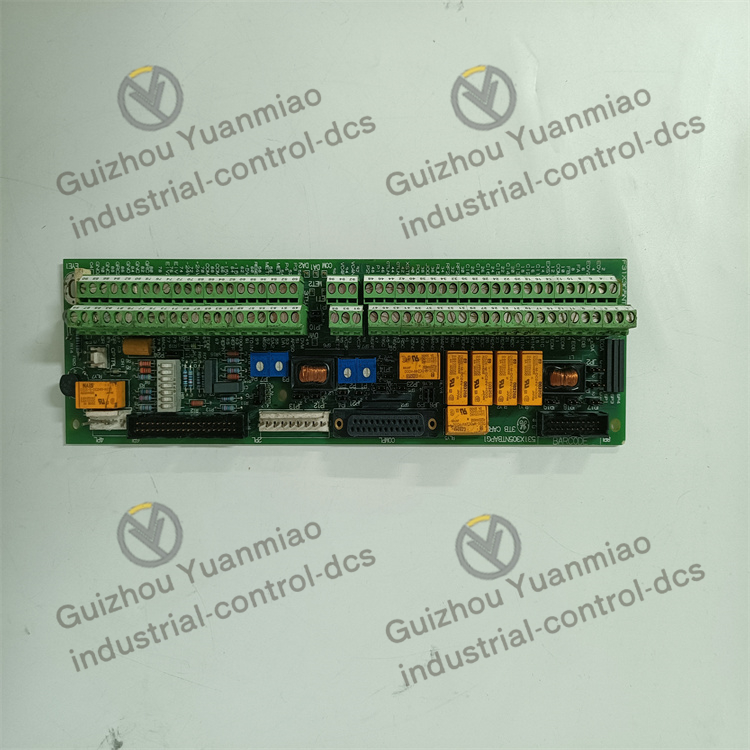

GE  531X305NTBAPG1  exciter cabinet terminal board

Rich interfaces: It provides a variety of input/output interfaces, including digital control input, relay output, low-level analog I/O, encoder interface, as well as RS-232C and RS-422 serial ports, etc., which can meet the connection and control requirements of different devices.
Diverse power supply: After installation, it can provide multiple power outputs, including regulated power supplies with rated values of + 5VDC (300mA current capacity) and 15VDC (300mA current capacity). It also has an unregulated DC power supply with a rated value of 24VDC (500mA current capacity) and an unregulated AC power supply with a rated value of 120VAC (0.5A current capacity), which can power different types of equipment.

Encoder interface: It features A differential A-orthogonal-B encoder interface with marked channels, which can be connected to the driver. Moreover, this circuit is optically isolated on the drive control board. The interface can be set to be suitable for + 5V or 15V encoders through the jumper on the board.
Digital control input: It can transmit various control inputs to the drive control board, including 12 general-purpose control inputs (up to 24VDC) and special-purpose digital inputs (such as reset and control on). The hardware patch cords can bias unconnected inputs to + 24VDC or -24VDC depending on the positive or negative logic adopted.

Other features: It includes A combination of seven A-type and C-type relay outputs, and the contact ratings of all integrated relays are 120VAC. There are also four potentiometers for scaling the low-level analog I/O.
