Description

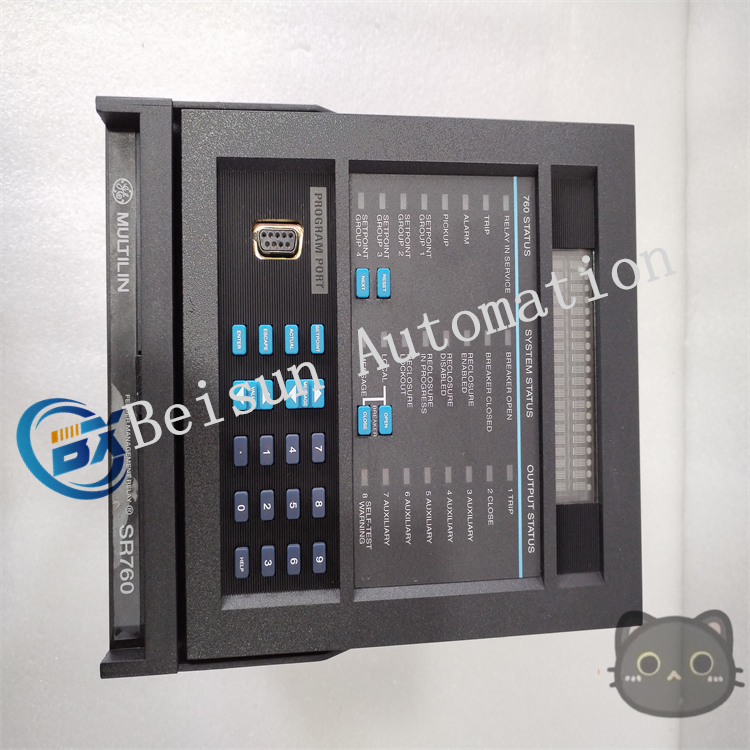

GE 760-P1-S1-HI-A5-G-T Digital Relay Module
Functions and Applications
Primarily used for management, primary protection, and control of distribution feeders, and also provides backup protection for busbars, transformers, and transmission lines. It applies to distribution feeder protection in solidly grounded, high-impedance grounded, or resonant grounding systems, as well as scenarios such as busbar interlocking schemes, high-speed fault detection for arc flash mitigation, load shedding schemes, transmission line backup protection, and distributed generation interconnection protection.
Protection Functions
- Overcurrent Protection: May include two-phase Time Overcurrent (TOC) elements, each phase equipped with a level detector to set pickup current levels for tripping, alarming, or control. It allows selection of multiple curve shapes and multipliers, with instantaneous or linear reset time characteristics and voltage limiting functions. Additionally, it may feature two-phase Instantaneous Overcurrent (IOC) elements, enabling setting of pickup current, action time delay, and the minimum number of phases required for operation.
- Ground Overcurrent Protection: Possibly includes Neutral IOC & TOC and Ground IOC & TOC functions, applicable to ground fault protection in solidly grounded and low-impedance grounded distribution systems. Directional elements can supervise ground overcurrent protection elements to isolate faulty feeders and prevent feedback to utility power faults.
- Voltage Protection: Should have overvoltage/undervoltage protection, tripping or alarming when voltage exceeds the specified set value for a certain period. It may also include negative sequence voltage elements (for detecting system imbalance) and neutral displacement voltage elements (for detecting ground faults).
Communication Capabilities
Typically equipped with three standard serial communication ports: one RS232 port on the front panel, two RS485/RS422 ports at the rear, and an optional rear Ethernet port. It supports ModBus® RTU, DNP3.0 Level 2, and ModBus RTU TCP/IP protocols. The communication system enables simultaneous communication through all ports, allowing integration into LAN or WAN.
Other Features
Supported by industry-leading software toolkits, it has precise built-in metering, enables I/O monitoring, and features IRIG-B time synchronization, event reporting, waveform capture, data loggers, etc. These enhance auxiliary equipment uptime and reduce troubleshooting and maintenance costs. The drawer-type structure facilitates replacement, and the built-in simulation function simplifies testing. A conformal coating may be optional to adapt to chemically corrosive and humid environments.
Application Industries
- Power Industry: Used in substations, power plants, etc., to provide primary protection and control for distribution feeders in solidly grounded, high-impedance grounded, or resonant grounding systems. It also serves as backup protection for transmission lines, feeders, and transformers, and applies to distributed generation interconnection protection, ensuring stable power system operation and equipment safety.
- Industrial Manufacturing: With numerous electrical devices and distribution lines in industrial processes, the module protects motors, transformers, etc., from damage caused by overcurrent and ground faults. It ensures production continuity, reducing downtime and maintenance costs due to electrical failures—applied in steel plants, cement plants, machinery factories, etc.
- Petrochemical Industry: Requiring high safety and reliability, the petrochemical production environment depends on stable electrical systems. The module protects distribution systems and equipment in petrochemical enterprises. Its optional corrosion-resistant conformal coating adapts to complex environmental conditions, effectively preventing safety accidents caused by electrical failures.
- Transportation Industry: Transportation hubs (airports, ports, railways, etc.) need reliable power supply systems. The module protects distribution feeders in these venues, ensuring normal operation of lighting, signal systems, escalators, etc.—for example, in power supply systems for port cranes and conveyor belts.
- Water Treatment Industry: Both waterworks and wastewater treatment plants have numerous motors, pumps, and other electrical devices in relatively humid environments. The 760-P1-S1-HI-A5-G-T module protects distribution systems in water treatment facilities with overcurrent and ground fault protection. Its optional conformal coating adapts to humid conditions, ensuring smooth water treatment processes.
