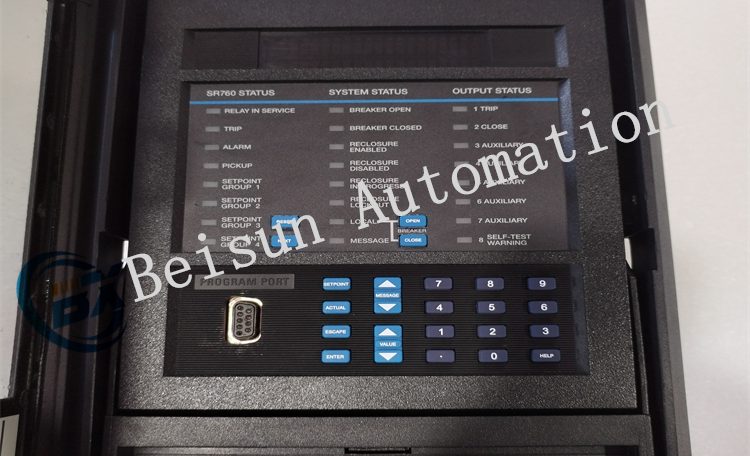

GE  760-P1-S1-LO-A5-G-T  Digital Feeder Protection Relay

Communication Interface Parameters

• May be equipped with a front-panel RS232 port for local configuration, debugging, and troubleshooting, supporting ModBus RTU protocol.
• May have dual RS485/RS422 ports at the rear, supporting multi-device networking, connection to SCADA systems, etc., and supporting ModBus RTU and DNP3.0 Level 2 protocols.
• May have an optional Ethernet port supporting ModBus TCP/IP and DNP3.0 network protocols, with data transmission rates of 10/100Mbps auto-negotiation.

Communication Protocol Support

Data Transmission-related

• Serial port baud rate may support adjustment from 300 to 19200bps; Ethernet port at 10/100Mbps auto-negotiation.
• RS485 communication distance may reach up to 1200 meters (standard); Ethernet up to 100 meters (UTP) or farther (fiber).
• The Ethernet port may support ≥4 concurrent connections to meet the needs of multi-system simultaneous access.

Protection Function-related

• May have overcurrent protection function, triggering time-overcurrent or instantaneous protection by calculating the root mean square (RMS) value of current and comparing it with set thresholds.
• Supports ground fault protection, monitoring ground faults through zero-sequence current or neutral voltage.
• May also have voltage protection and frequency protection functions, monitoring voltage amplitude, negative-sequence voltage, zero-sequence voltage, and system frequency to detect overvoltage, undervoltage, overfrequency, underfrequency, etc.

Other Parameters

• May support multi-port concurrent communication, enabling independent communication through RS232, RS485, and Ethernet ports simultaneously.
• Has a Sequence of Events (SOE) recording function with a timestamp accuracy of ≤1ms.
• The operating temperature may be around -40°C to 85°C to adapt to different environmental temperature conditions.

Main Applicable Industries and Scenarios

1. Power Industry

• Substation Automation
  • Protects medium and low-voltage distribution feeders, quickly detects overcurrent, short circuits, and ground faults, and isolates fault sections.
  • Serves as backup protection for busbars, transformers, and transmission lines to improve power supply reliability.
• Distributed Energy Grid Connection
  • Monitors the interconnection interface between distributed power sources such as photovoltaics and wind power and the grid, supporting islanding detection and rapid disconnection.
  • Cooperates with microgrid control to achieve coordinated protection of distributed energy.

2. Industrial Manufacturing

• Large Factory Power Distribution Systems
  • Protects key equipment such as motors and transformers from overload and short-circuit damage.
  • Ensures power safety in continuous production processes in industries such as steel, chemical, and mining.
• Industrial Automation Systems
  • Integrates with PLC and DCS systems to achieve power monitoring and equipment interlock control.
  • Supports Industrial Internet of Things (IIoT) data collection to optimize energy management.

3. Infrastructure

• Transportation Hubs
  • Protects the power distribution systems of airports, ports, and railways to ensure the reliable operation of equipment such as lighting, signals, and elevators.
  • For example: overcurrent protection for port cranes and railway traction power supply systems.
• Data Centers
  • Protects UPS, transformers, and feeders to prevent data loss caused by power failures.
  • Supports redundant power switching and load management.

4. Oil and Gas

• Oil and Gas Extraction and Refining
  • Provides explosion-proof protection relays in hazardous environments (such as offshore platforms and refineries) to monitor the power supply lines of equipment such as pumps and compressors.
  • Adapts to harsh working conditions such as high temperature, humidity, and corrosion (conformal coating can be optionally configured).

5. Building and Municipal Administration

• Commercial Buildings
  • Protects the power distribution circuits of high-rise buildings to prevent the risk of electrical fires.
  • Integrates with Building Management Systems (BMS) to achieve remote power monitoring.
• Municipal Facilities
  • Protects pumps and motors in water treatment plants and sewage treatment plants to ensure stable water supply.
  • Protects feeders for streetlights and traffic signals to reduce the impact of power outages.

Typical Application Scenarios

• Arc Flash Mitigation: Uses high-speed fault detection to quickly cut off power and reduce arc flash hazards.
• Load Shedding: Cuts off non-critical loads by priority during grid failures to ensure power supply to important equipment.
• Power Quality Monitoring: Identifies voltage sags, harmonics, and other issues through waveform capture and data analysis.
