Description

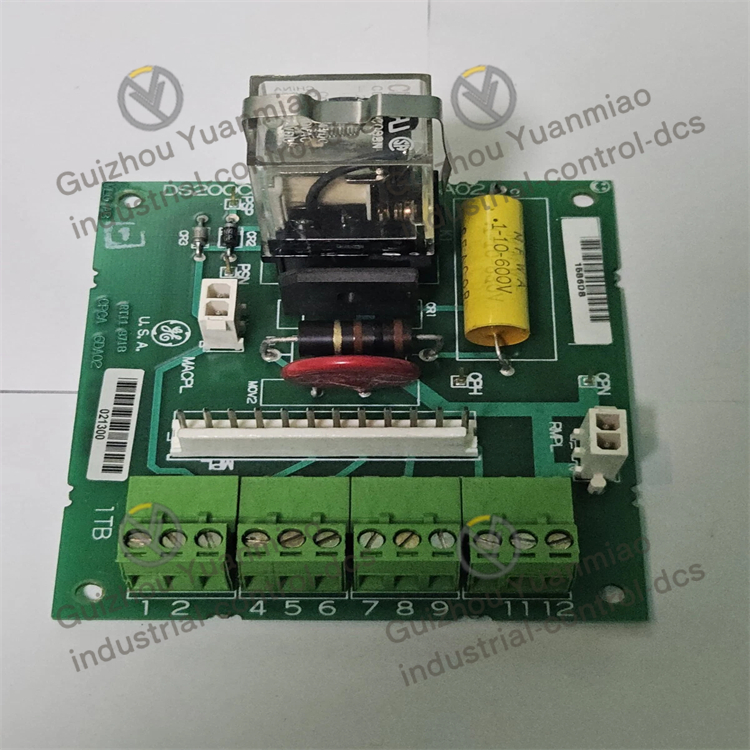

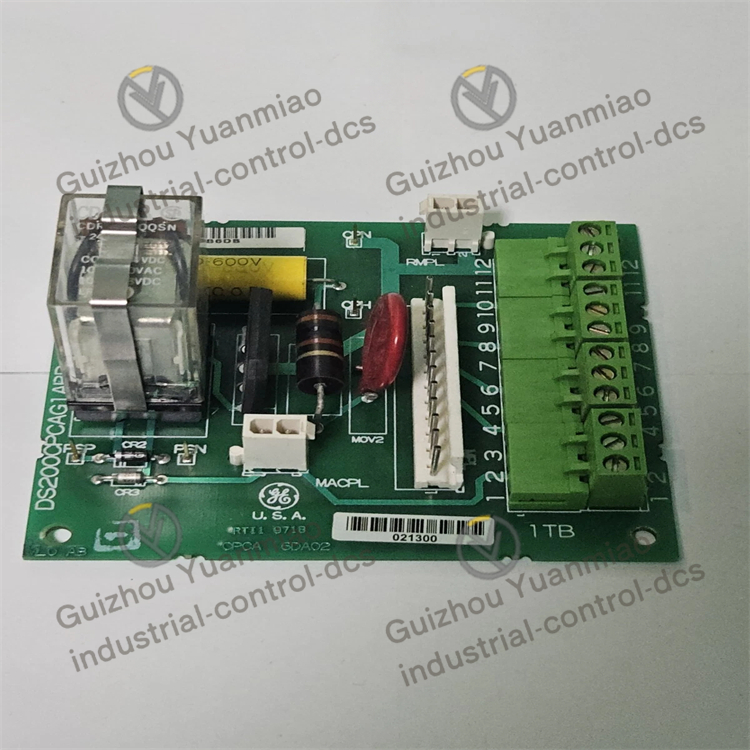

GE  DS200CPCAG1ABB  contactor pilot card

Functional characteristics
Connection function: It is equipped with one 12-pin connector and two 2-pin connectors, as well as four terminal blocks, allowing for the connection of up to 12 signal lines, which enables convenient signal connection with other devices.
Power supply function: Equipped with a 24VDC, 15A socket power relay to provide stable power for related equipment.
Installation guidance: Provide guidance and support for the installation of GE contactors. Precise dimensional design ensures a perfect fit with GE contactors.

Hardware specification
Circuit board coating: The use of ordinary coating can enhance the wear resistance and corrosion resistance of the circuit board.
Performance parameters
Input power supply: 24VDC.
Operating temperature: -40°C to 70°C.
Relay parameters: The internal relay coil voltage is 115VDC, which can convert the input 115VAC voltage to 105VDC voltage to close the contactor assembly at full voltage.

Precautions
The relay has moving parts inside. When installing, be careful to avoid the relay hitting the metal structure or other components inside the drive cabinet and getting damaged.
The relay is relatively high and protrudes from the surface of the board. When sliding the main board into the drive cabinet, make sure you can clearly see the interior of the main board and the cabinet. Insert it slowly and align it with the screws on the frame. Do not tighten the screws too much to avoid breaking the circuit board.
