Description

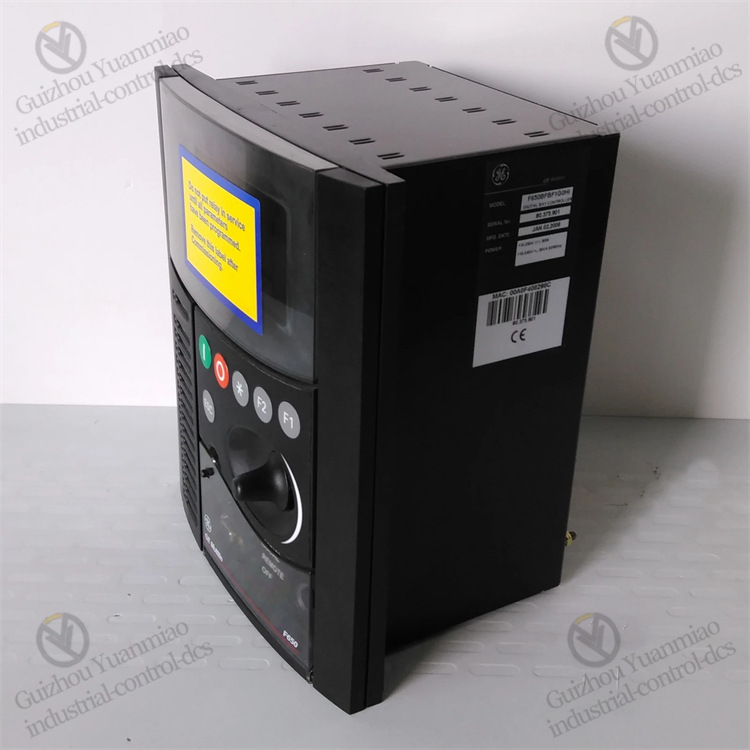

GE F650BFBF1G0HI Digital Bay Controller Module

• Powerful Protection Functions: Equipped with overcurrent protection, earth fault protection, phase-to-phase fault protection, undervoltage/overvoltage protection, and frequency protection, it can effectively ensure the safety of electrical equipment and lines.
• Diversified Control Functions: Supports automatic reclosing, load shedding, synchronism check, circuit breaker control, disconnector control, and tap changer control, enabling flexible control over the operation of power systems.
• Flexible Communication Capability: Supports multiple communication protocols such as IEC 61850, Modbus RTU/TCP, and DNP 3.0. It can communicate with other devices through 10/100Base TX Ethernet interfaces or redundant 100Base FX Ethernet interfaces, facilitating integration into different power systems.
• Rich Measurement Functions: Can measure parameters such as voltage, current, power factor, and frequency, providing data support for system operation monitoring and analysis.
• Reliable I/O Configuration: Features 16 digital inputs and 8 digital outputs, which can be flexibly configured and are suitable for application scenarios such as circuit breakers and control interlocks.
• Fault Recording Function: Has the ability to record faults, capable of logging data 10 seconds before and 100 seconds after a fault, facilitating fault analysis and troubleshooting.

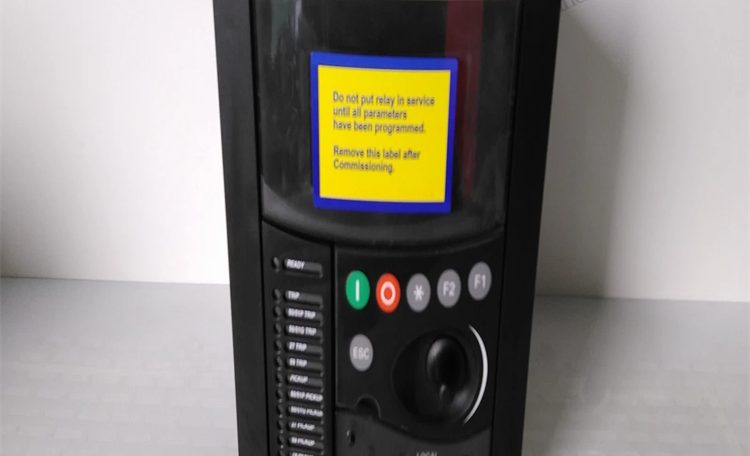

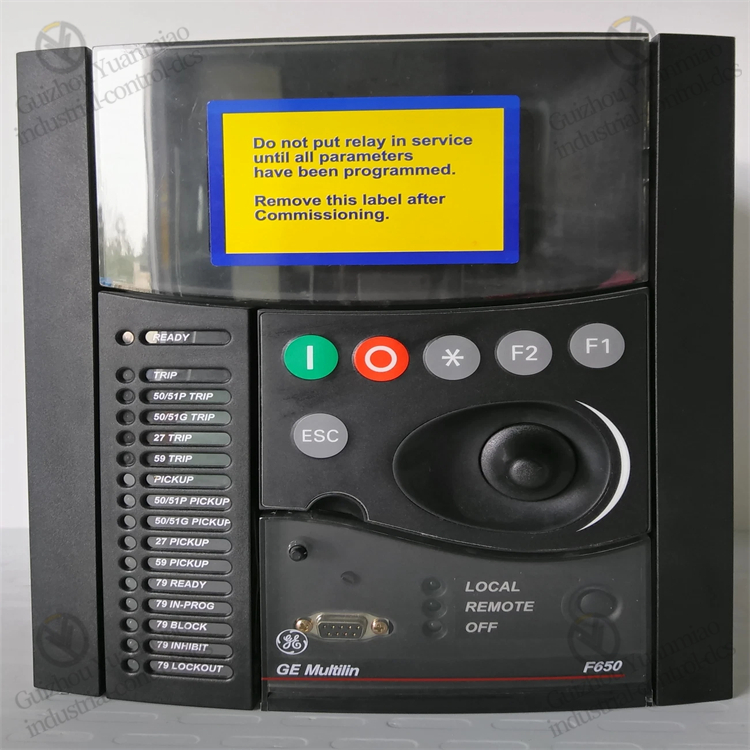

• Display Interface: May be equipped with a graphic LCD display that supports single-line diagram display for convenient monitoring and control. It is also provided with programmable buttons and navigation keys for easy selection of setting menus and submenus.
• Power Requirements: Typically supports 100-240V AC or DC power input, depending on the product configuration.
• Protective Design: Some models may have conformal coating protection, allowing use in harsh environments with chemical corrosion, etc.

• Power Systems: Can be used for feeder protection, control, and automation in power systems. It can provide high-speed protection and control for various feeder arrangements such as ring buses and double circuit breakers, realizing monitoring and protection of power equipment to ensure the stable operation of power systems. It can also seamlessly integrate with Supervisory Control And Data Acquisition (SCADA) systems, facilitating remote monitoring and control, timely detection and handling of faults in power systems, and improving power supply reliability.
• Manufacturing Industry: Can be used for process control and monitoring of production lines. Through precise control of various equipment on the production line, it ensures that the production process proceeds according to the predetermined procedure, improving production efficiency and product quality. For example, in automobile manufacturing production lines, it can control the operation of equipment at each workstation and coordinate the connection between different processes.
• Energy Industry: Suitable for places such as power plants and substations to control and monitor power generation equipment and substation equipment. For instance, in wind power plants, it can monitor the operating status of wind turbines, adjust the working mode of generators according to parameters such as wind speed, and optimize energy utilization efficiency. It can also be used in motor control centers to precisely control the start, stop, and speed regulation of motors, while providing protection functions such as overload and short circuit protection.
• Chemical Industry: In chemical production processes, it can realize precise control of various chemical equipment and process flows, ensuring the safety of chemical production and product consistency. For example, it can control parameters such as temperature, pressure, and liquid level of reaction kettles, precisely control the conveying flow and proportion of materials, ensure chemical reactions proceed according to specified processes, and prevent accidents.
• Gas Turbine Field: Can be used to control and monitor the air pipeline system of gas turbines to ensure their normal operation and safety. By monitoring parameters such as air flow and pressure, it adjusts the air intake system of gas turbines to ensure their efficient and stable operation.
