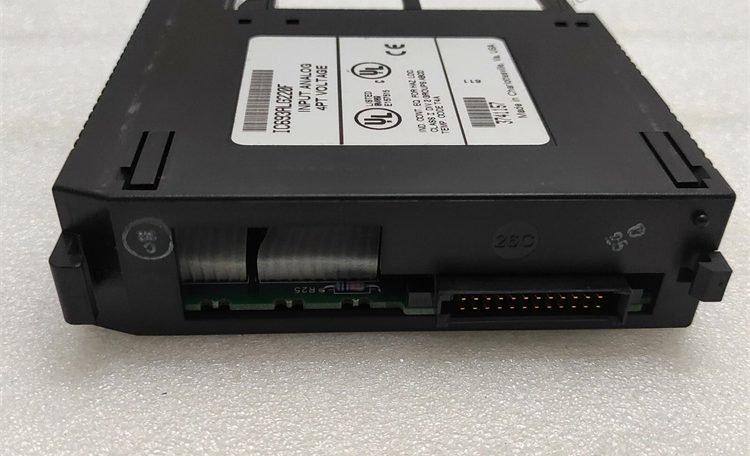

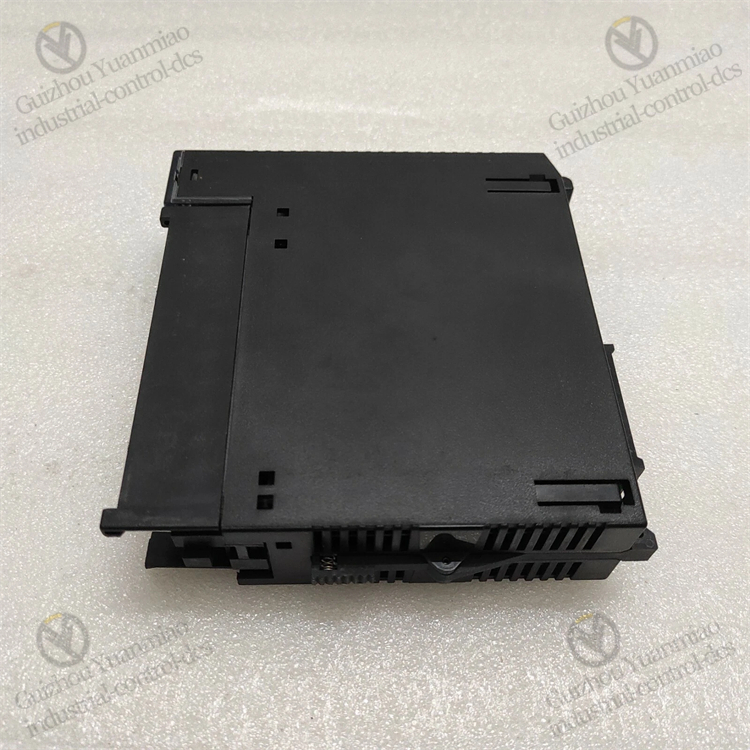

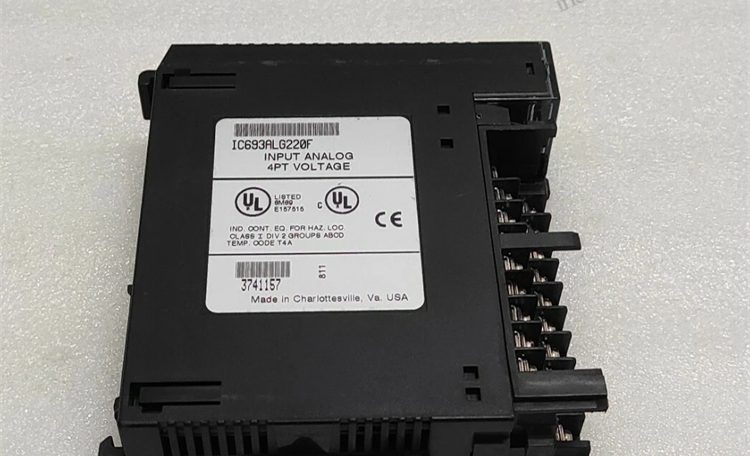

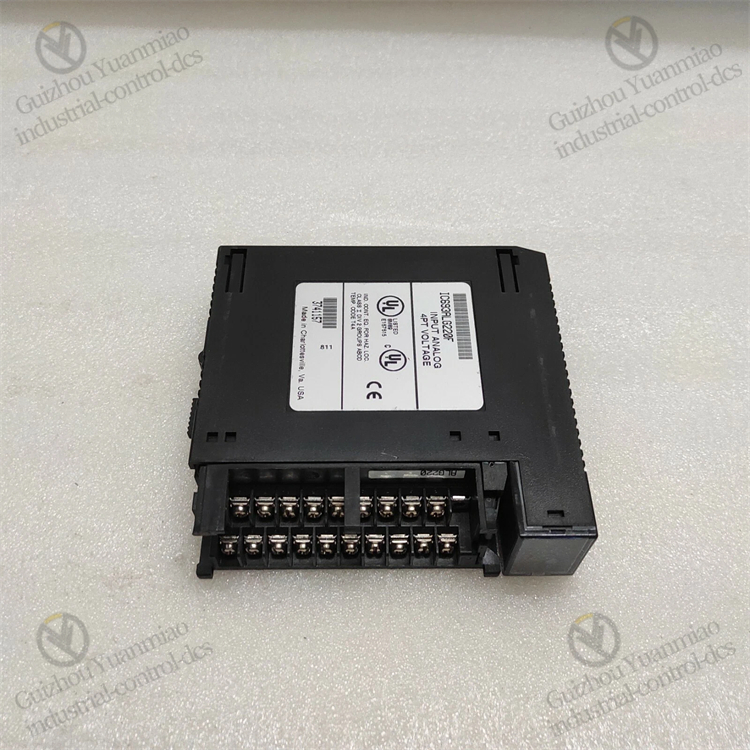

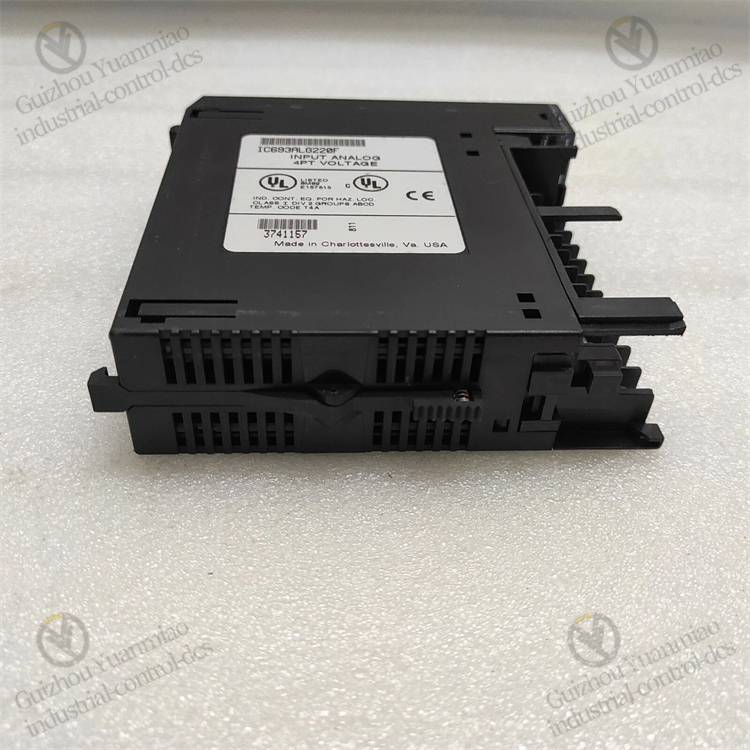

GE  IC693ALG220F  90-30 Series Analog Input Module

Basic Parameters:

• Input Channels: Equipped with 4 voltage input channels.
• Input Signal Range: -10Vdc to +10Vdc; it can also support -40mA to +40mA current input by installing a 250-ohm shunt resistor.
• Conversion Resolution: 12-bit, with a digital resolution of 5mV/20µA (1LSB = 5mV).
• Update Rate: 4ms per channel, meaning the module can update data for all channels every 4ms.
• Input Filter Response: 17Hz.
• Accuracy: Typical accuracy is ±10mV/40µA, and maximum accuracy is ±30mV/160µA.
• Power Consumption: The backplane +5V bus consumes 27mA current, and the isolated +24V backplane bus consumes 98mA current.
• Isolation: There is 1500V AC optical isolation between the field side and the logic side.
• Installation Position: Can be installed in any available I/O slot of the 5-slot or 10-slot 90-30 series backplane, occupying a single slot.

Functional Features:

• Signal Conversion: Built-in analog-to-digital converter (ADC) can accurately convert analog voltage signals from -10V to +10V into digital signals, providing accurate input data for PLC to facilitate logical operations and control.
• Support for Multiple Inputs: Not only supports voltage input but also current input through simple configuration, meeting the signal input requirements of different types of sensors.
• Isolation Protection: 1500V AC optical isolation can effectively isolate external electrical interference, enhance the stability and reliability of the module in complex industrial environments, and reduce the impact of external noise on signals.
• Status Indication: The module may be equipped with LED indicators, which allow users to intuitively understand the working status of the module, such as the indicator light being on during normal operation.

Working Principle:

Application Fields:

• Chemical and Pharmaceutical Field: It can be used in scenarios such as reactor temperature monitoring, pressure control, and liquid level regulation. For example, a pharmaceutical factory uses this module to collect the temperature of fermentation tanks, utilizes its channel isolation design to avoid signal crosstalk, meets the accuracy requirements with 12-bit resolution, reduces the temperature fluctuation from ±2℃ to ±0.5℃, and improves the product qualification rate.
• Energy and Utilities Field: It can be applied to substation voltage/current monitoring, water pump pressure control, wind turbine vibration analysis, etc. Its high sampling rate (500Hz) can capture transient signals and support fault early warning. For example, a coal mine uses this module to collect vibration signals of crushers, combines with AI algorithms to predict equipment life, and reduces annual maintenance costs.
• Manufacturing Field: It can be used for welding current monitoring, coating thickness detection, robot joint temperature control, etc. In equipment such as machine tool manufacturing, textile machinery, and packaging machinery, this module can also accurately collect analog signals to ensure stable operation of equipment and production quality.
• Sewage Treatment Field: Channels can be configured to connect liquid level sensors, etc., for monitoring parameters such as the liquid level of sewage pools. By accurately collecting liquid level analog signals, it provides data support for liquid level control in the sewage treatment process and ensures the normal operation of the sewage treatment process.
• Rail Transit Field: It can be used in scenarios such as rail transit axle temperature detection. By connecting temperature sensors, it can monitor the axle temperature in real time, convert the temperature analog signal into a digital signal for system processing, so as to detect abnormal axle temperature in time and ensure the safe operation of trains.
• Food and Beverage Field: It can be used to monitor parameters such as temperature, pressure, and flow during the production process, such as liquid flow control during beverage filling and temperature control during food baking, to ensure stable product quality and meet production process requirements.
