Description

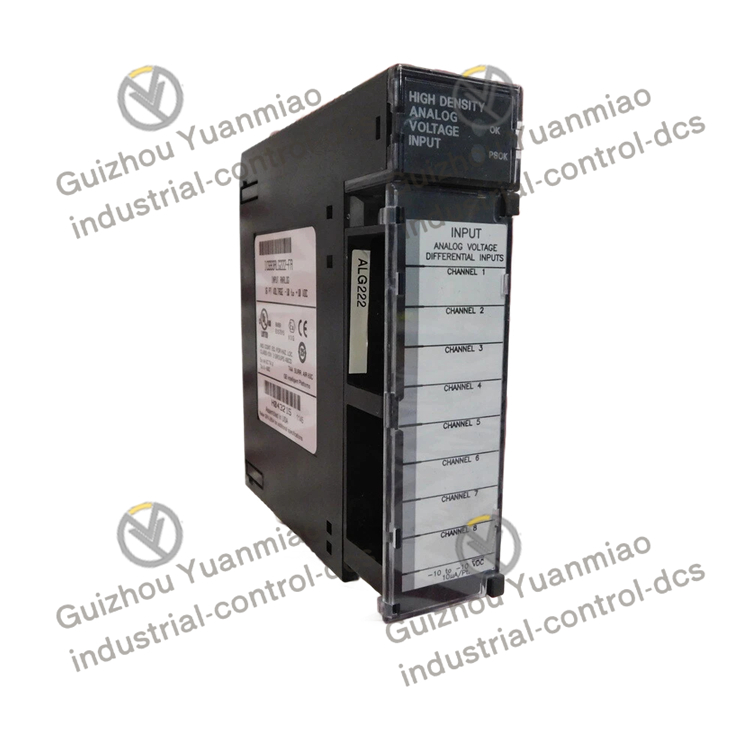

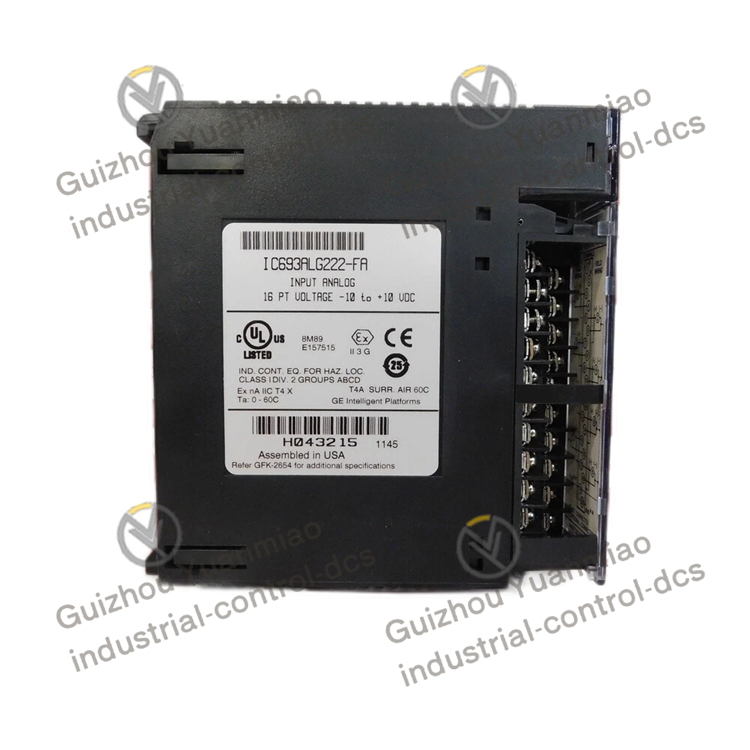

GE  IC693ALG222  16-channel analog voltage input module

Functional characteristics
Multi-channel input: It offers 16 single-ended input channels or 8 differential input channels, capable of simultaneously collecting multiple analog voltage signals. It is suitable for industrial automation scenarios that require monitoring multiple analog quantities.
Flexible input range: Each channel can select an input range of 0-10V (unipole) or -10V to +10V (bipolar) through configuration software, which can adapt to the output voltage signals of different types of sensors or transmitters.
High resolution: The resolution is 12 bits. When the input range is 0-10V, the resolution is 2.5mV (1LSB = 2.5mV). When the input range is from -10V to +10V, the resolution is 5mV (1LSB = 5mV), which can precisely measure and convert analog voltage signals.

Fast conversion speed: The conversion time is 25 microseconds, and the update rate of each channel is 6 milliseconds in single-ended configuration and 3 milliseconds in differential configuration. It can quickly collect and process analog signals and promptly reflect the changes of on-site signals.
High accuracy: At 25℃, the absolute accuracy is ±0.25% of the full scale. Within the specified working temperature range, the absolute accuracy is ±0.5% of the full scale, and the linearity is ±1LSB, ensuring the accuracy of the measurement.
Isolation design: It features excellent isolation characteristics, which can prevent interference between channels and enhance the stability and reliability of the system.
Easy to configure: The parameters of the module can be conveniently set and monitored through the configuration software, and the operation is simple and convenient.

Hardware specification
Operating temperature: 0℃ – 55℃.
Relative humidity: 5% – 95% (no condensation).
Power consumption: 112 milliamperes of current is drawn from the + 5V bus on the PLC backplane, and 41 milliamperes of current is drawn from the + 24V power supply isolated on the backplane.

Installation and scope of application
Installation method: It adopts DIN rail installation, which is convenient and fast. It can be installed in any I/O slot of the 5 or 10-slot substrate in the 90-30 series PLC system.
Scope of application: Widely used in industrial automation systems, such as process control and quality monitoring in manufacturing, process monitoring in the petrochemical industry, monitoring of power generation equipment in the energy field, and water quality monitoring in the water treatment industry, etc. It can collect various process data such as temperature, pressure, and flow rate, and can also be used in data acquisition systems and testing systems.
