Description

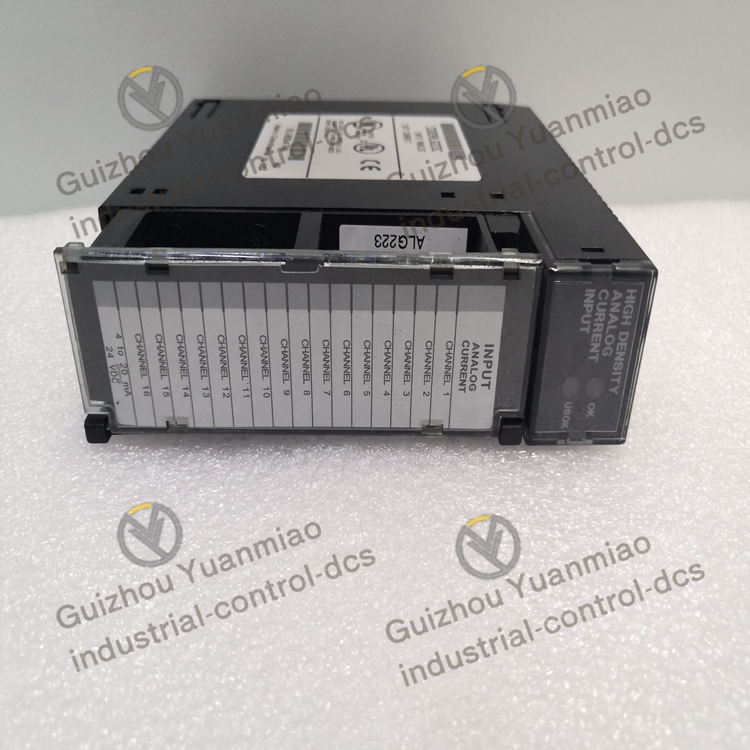

GE  IC693ALG223  Analog current input module

Application field
Industrial automation control
Production line monitoring: Collect current signals from conveyor belt speed sensors and robotic arm position sensors to achieve real-time monitoring and closed-loop control of equipment operation status.
Robot system: Receives current signals from the robot’s joint torque sensor and force feedback sensor to ensure the accuracy and safety of the robot’s movements.
Motion control: In conjunction with the servo driver, it monitors the motor current data, optimizes motor speed regulation and energy consumption management.

Process industries (chemical engineering, petroleum, power)
Chemical production: Monitor the temperature of the reaction vessel (converted into current signals through thermocouple/thermal resistance transmitters), pipeline pressure (output 4-20mA by pressure transmitters), and liquid flow (signals from electromagnetic flowmeters) to achieve real-time regulation of process parameters.
Oil and gas: Collect current signals from wellhead pressure sensors and tank liquid level sensors to remotely monitor the production status of oil and gas fields and issue early warnings for leakage or abnormal working conditions.
Power system: Monitor the current load of generator sets and the temperature rise of substation equipment (through temperature transmitters), and assist in power dispatching and equipment operation and maintenance.

Data acquisition and testing system
Laboratory testing: Collect the current signals of the sensor array (such as strain gauge signals in material mechanics testing) in the automated testing platform to achieve high-speed data collection and analysis.
In the automotive industry, parameters such as battery current and motor torque current are monitored during vehicle testing to assist in the performance verification of new vehicles.
Aerospace: Collect sensor current signals (such as pressure and strain) of aircraft prototypes, and support flight data recording and simulation analysis.

Summary
The core value of IC693ALG223 lies in providing high-precision and highly reliable analog current signal acquisition capabilities for industrial systems, especially suitable for multi-channel, strong interference, and high real-time scenarios. Its deep integration feature with the GE 90-30 series PLC further reduces the development and maintenance costs of the automation system, and it is an important underlying hardware component in the fields of Industrial Internet of Things (IIoT) and intelligent manufacturing.
