Description

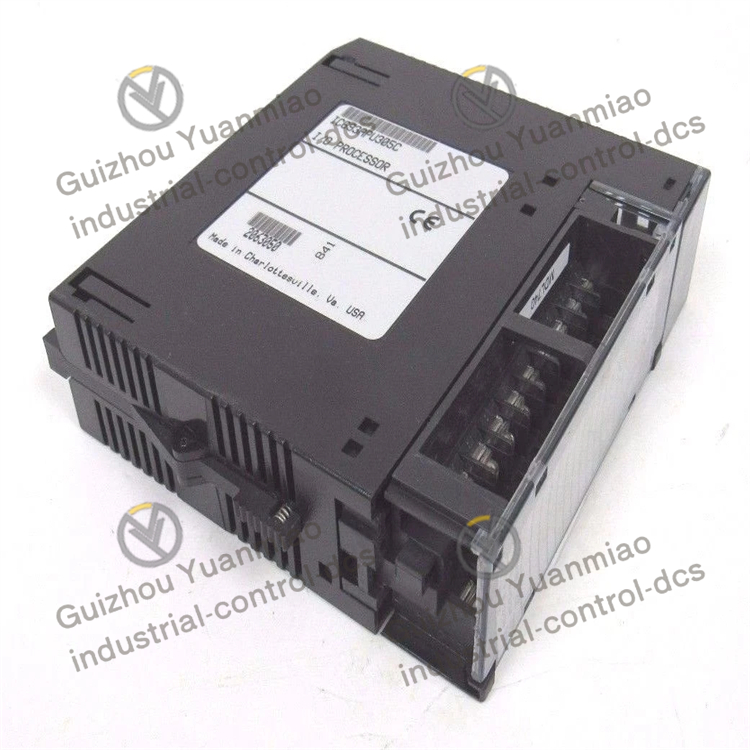

GE  IC693APU305  I/O processor module

Input and output specifications
Input points: 12.
Input voltage: 5V DC (TTL) or 10-30V DC (non-TTL).
Output points: 8, among which the current rating of 4 output channels is 1A, and the current rating of 4 configurable output channels is 0.5A.

Functional characteristics
Processing capacity: The dedicated processor provides an I/O update of 500μs.
Communication method: In each CPU scanning cycle, the I/O processor communicates with the CPU through 32 discrete inputs (% I), 32 discrete outputs (% Q), 15 words of analog input (% AI), and 6 words of analog output (% AQ).

Configuration method: It can be configured using the 90-30 series handheld programmer, Logic Master 90-30 or Versapro software. There are no jumpers or dip switches on the module.
Status indication: There are 6 green leds on the top of the module, which are used to display the operating status of the module, the status of hardware output, and the status of configuration parameters.

Diagnostic function: The module performs internal diagnosis and features 32 range comparators (output returns in % I and % AI data), as well as 4 pass data registers, 2 of which are used to indicate the input pulse length or input interval (in ms).
Power supply requirement: Powered by a 5V DC power supply provided by the slot of the 90-30 series PLC substrate.
