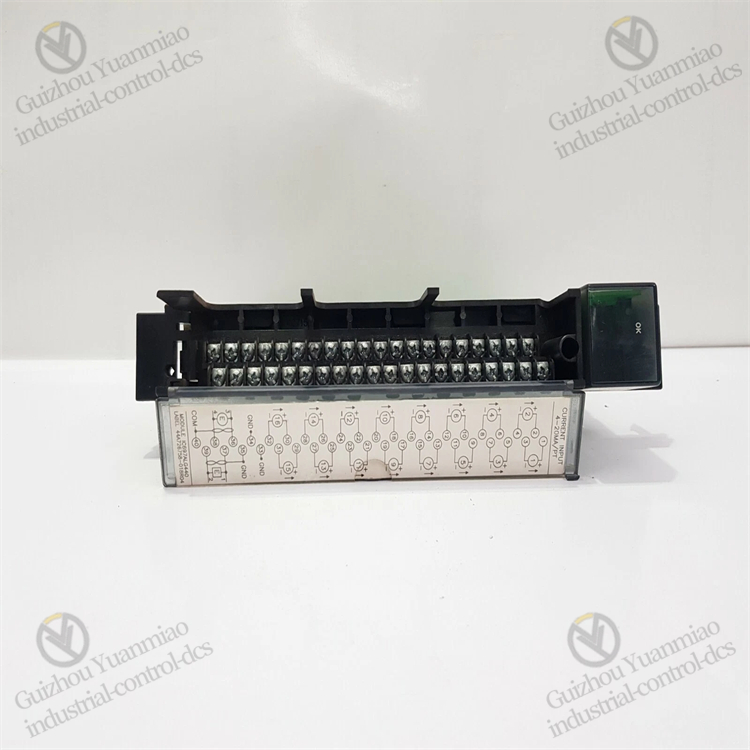

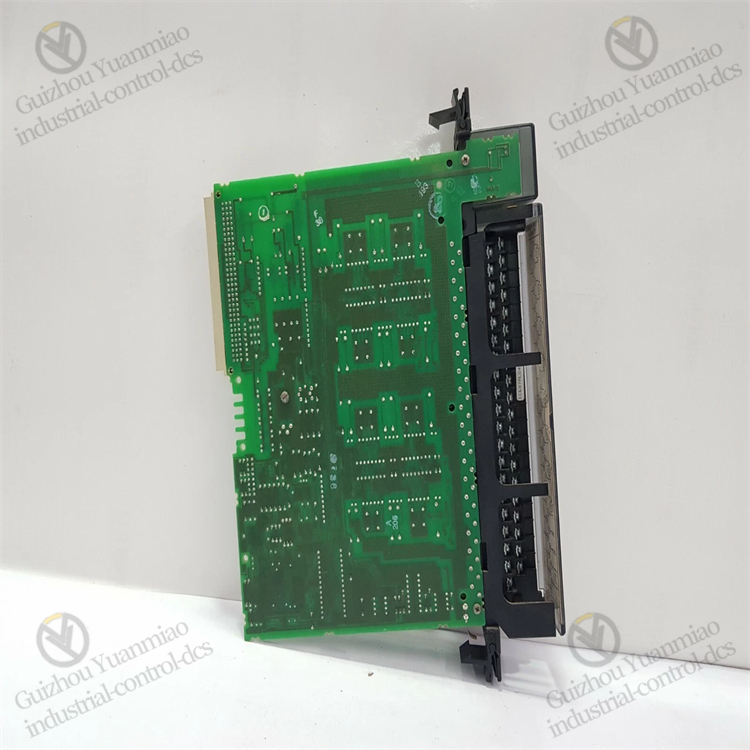

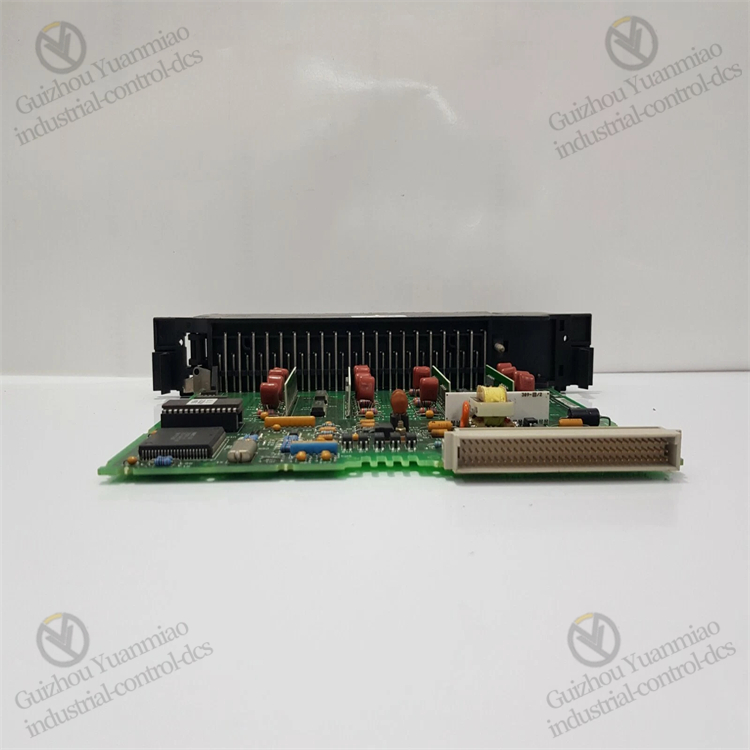

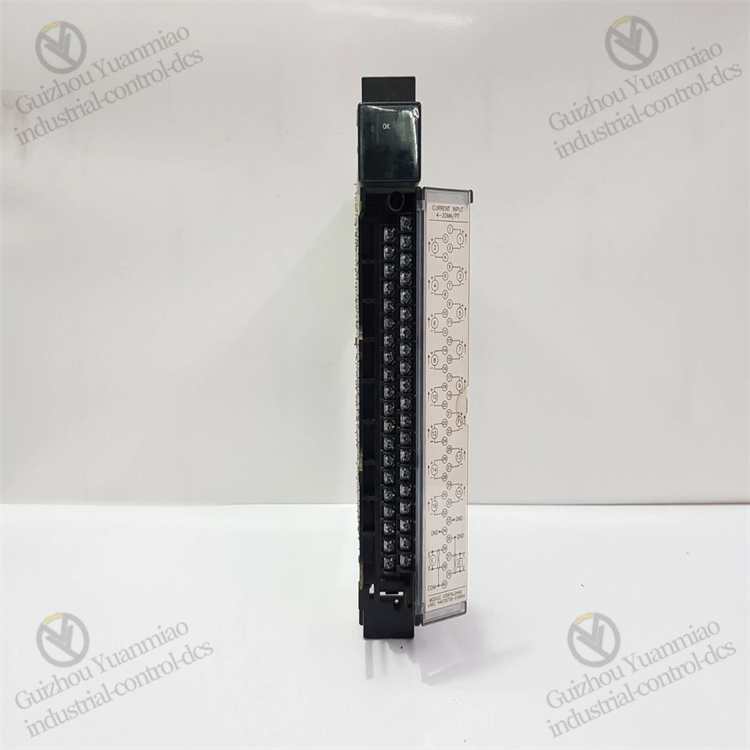

GE  IC697ALG440  Analog Input Expansion Module

Basic Parameters:

• Input Channels: Equipped with 16 independently configurable differential input channels, which can be used for current or voltage input.
• Input Signal Range: The voltage input range is -10V to +10V, and the current input range is 4mA to 20mA.
• Power Requirement: At +5V, the power requirement is 0.4A (i.e., 2 watts).
• Dimensions: Approximately 12×32×32mm.

Technical Characteristics:

• Configurability: Each input channel can be configured independently without jumpers or DIP switches, and configuration can be completed through Windows or MS-DOS software.
• Overvoltage Protection: It has an overvoltage protection function, which can resist transient and steady-state overvoltage conditions, protecting the module and connected equipment.
• Memory Allocation: It can utilize a maximum of 8k words of %AI memory, with each input channel using one word of 16-bit memory.

Functional Features:

• Signal Conversion: It can convert input analog signals (voltage or current) into digital form, allowing the CPU or other controllers to access analog input signals through the VME backplane.
• Independent Scaling: Each input channel can be scaled independently, which can be flexibly adjusted according to actual application needs to improve measurement accuracy.
• Mechanical Keying: The module adopts a mechanical keying design to ensure that the module can be replaced correctly and avoid faults caused by incorrect installation.

Main Application Fields:

• Metallurgical Industry: In steel plants, it can be used to monitor parameters such as the temperature and pressure of blast furnaces, as well as collect signals of rolling force and speed during the rolling process, providing accurate data for production process control and ensuring steel quality and production efficiency.
• Power Industry: It is suitable for power plants, where it can perform real-time monitoring of generator voltage, current, power factor, etc., and can also be used for collecting various electrical parameters in substations, helping to achieve stable operation and automatic control of the power system.
• Chemical Industry: It can collect signals such as temperature, pressure, and liquid level of reactors in chemical production processes, as well as analog signals such as fluid flow and composition in pipelines, ensuring that the chemical production process is carried out in accordance with set process parameters and guaranteeing production safety and product quality.
• Rail Transit Industry: It can be used for condition monitoring of rail transit vehicles, such as collecting motor current, bearing temperature and other signals, and can also be used in station environmental monitoring systems to monitor and control parameters such as temperature, humidity, and air quality.
• Municipal Engineering and Environmental Protection Industry: In sewage treatment plants, it can be used to monitor sewage pool liquid level, water pump motor current, water quality parameters, etc.; in municipal water supply systems, it can monitor water pressure, flow, etc., helping to realize the rational allocation of water resources and automatic control of the treatment process.
• Automobile Manufacturing Industry: In automobile production lines, it can be used for current monitoring during robot welding to ensure stable welding quality, and can also be used for paint flow and pressure control in coating workshops, as well as detection of installation positions of various components during vehicle assembly.
• Electronic Manufacturing Industry: It can be applied to parameter monitoring in the production process of electronic equipment, such as temperature and current control during circuit board welding, and accurate collection of various process parameters in semiconductor manufacturing processes, ensuring the production accuracy and quality of electronic products.
