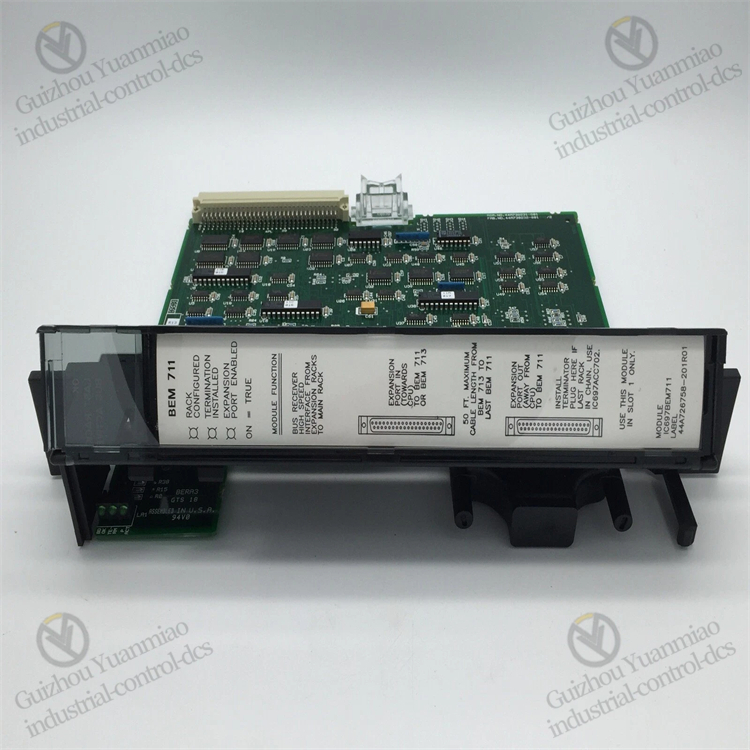

GE IC697BEM711 Bus Expansion Module
The IC697BEM711 is a Bus Expansion Module in the GE Fanuc 90-70 series PLCs. Its main function is to expand the bus communication capability of the system, enabling high-speed data transmission between multiple racks or modules and supporting distributed expansion of the PLC system. The following is a detailed analysis of its working principle:
Core Function Positioning
In the 90-70 series PLC system, the main controller (such as a CPU module) communicates with other modules (such as analog input/output modules, digital modules, etc.) via the VME bus. When the system needs to expand with more modules or be distributed in different physical locations, the IC697BEM711, as a bus expansion interface, can extend the main bus signals to expansion racks, realizing synchronous data interaction between multiple racks and solving the problems of limited module quantity in a single rack or scattered spatial layout.
Dismantling of Working Principle
Bus Signal Relaying and Amplification
The core bus of the 90-70 series adopts the VME standard (a high-performance industrial bus). The main CPU sends control commands to various modules and reads status data via the bus.
When the system needs to expand to multiple racks, bus signals may attenuate due to increased transmission distance. The IC697BEM711 has a built-in signal relay circuit that amplifies and shapes bus signals, ensuring stable transmission between expansion racks (supporting a maximum rack spacing of approximately 10 meters).
When the system needs to expand to multiple racks, bus signals may attenuate due to increased transmission distance. The IC697BEM711 has a built-in signal relay circuit that amplifies and shapes bus signals, ensuring stable transmission between expansion racks (supporting a maximum rack spacing of approximately 10 meters).
Multi-Rack Communication Coordination
The module distinguishes between the main rack and expansion racks through rack address settings (usually configured via DIP switches or software) to avoid address conflicts.
The BEM module in the main rack establishes a point-to-point communication link with BEM modules in expansion racks to achieve bidirectional data transmission:
The BEM module in the main rack establishes a point-to-point communication link with BEM modules in expansion racks to achieve bidirectional data transmission:
- From the main CPU to expansion modules: Transmits control commands, configuration parameters, etc.;
- From expansion modules to the main CPU: Feeds back sensor data, module status (such as fault information), etc.
Synchronization and Timing Control
To ensure the action consistency of multi-rack modules (such as synchronization of analog acquisition, timing matching of digital output), the IC697BEM711 supports bus clock synchronization. It calibrates the operation timing of all expansion racks through the clock signal of the main rack, avoiding delays or misalignment in data transmission.
Fault Monitoring and Diagnosis
The module has a built-in self-diagnostic circuit that can real-time monitor the bus communication status (such as signal loss, transmission errors).
If a fault is detected (such as bus disconnection, unresponsive expansion rack), it sends an alarm signal to the main CPU via indicator lights (such as a flashing COM light) or the bus, facilitating quick problem location in the system.
If a fault is detected (such as bus disconnection, unresponsive expansion rack), it sends an alarm signal to the main CPU via indicator lights (such as a flashing COM light) or the bus, facilitating quick problem location in the system.
Key Technical Features
- High-Speed Transmission: Supports the maximum transmission rate of the VME bus (approximately 40MB/s), meeting the low-latency requirements of real-time control scenarios.
- Hot-Swap Compatibility: Some models support hot swapping, facilitating module replacement during system maintenance without interrupting overall operation.
- Anti-Interference Design: Adopts differential signal transmission and electromagnetic shielding, adapting to strong electromagnetic interference environments in industrial sites (such as near motors and frequency converters).
Typical Application Scenarios
- Large Production Lines: When equipment is distributed in multiple areas (such as different sections of a workshop), racks are expanded through BEM modules to achieve centralized control and distributed acquisition.
- Complex Control Systems: Such as multi-unit linkage of metallurgical equipment (rolling mills, coiling machines, etc.), which requires bus expansion to realize synchronous coordination of each unit.
- Redundant System Design: In scenarios with high reliability requirements (such as power plants, chemical industry), a redundant bus is built through dual BEM modules to avoid system paralysis caused by single-point faults.
In summary, the IC697BEM711 is a core component for realizing modular and distributed expansion of the 90-70 series PLCs. Through stable bus relaying and synchronization mechanisms, it ensures efficient collaborative operation of multi-rack systems.
