Description

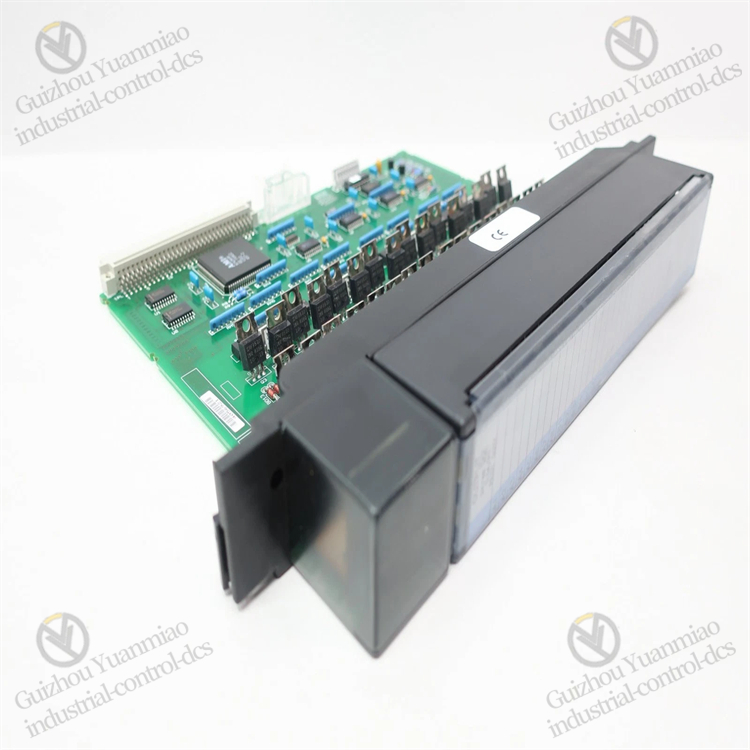

GE IC697MDL750 90-70 Series Multifunctional Digital Output Module

• High-Capacity Output: Equipped with 32 output points divided into 4 isolated groups (8 points per group), enabling simultaneous control of multiple devices to meet large-scale industrial automation requirements.
• Wide Voltage Range: Rated at 24 or 48VDC with an output voltage range of 20-60VDC, adaptable to various voltage requirements of load devices, enhancing versatility and flexibility.
• High Output Current Capability: Each output point supports a maximum current of 0.5A, with each group capable of 2A. Features high surge current tolerance (20x rated current for 20ms), suitable for powering motors, solenoid valves, indicators, etc.
• Strong Configurability: Input and output references can be customized via PC (Windows/MS-DOS) through SNP port or Ethernet TCP/IP, allowing flexible adjustment of operational parameters.

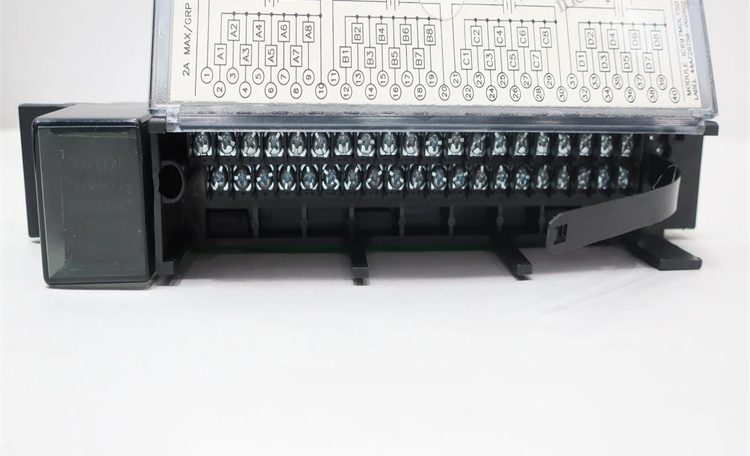

• Clear Status Indication: LED indicators on the module top visually display internal circuit status and output point activation, facilitating real-time monitoring and troubleshooting.
• Mechanical Key Protection: Includes a mechanical key for slot customization during installation, preventing incorrect module insertion and improving system safety.

• Machine Control: Precise motion control for machine tools, robots (e.g., welding/assembly in automotive manufacturing).
• Process Control: Regulation of actuators (valves, pumps) for precise control of temperature, pressure, flow, ensuring production stability and quality consistency.
• Packaging Industry: Automation of packaging equipment (fillers, labelers, sealers) to improve efficiency and accuracy.
• Automated Production Lines: Coordination of equipment in electronics, food & beverage industries for automated material handling, processing, assembly, and inspection.

• Voltage: Rated 24/48VDC, Output Range 20-60VDC
• Current: 0.5A per output point, 2A per group; 20x surge capability (20ms); 0.25A from 5V bus
• Isolation: 1500V between outputs and backplane, 500V between input groups
• Dimensions: Approx. 21.3×22×13 cm
• Weight: Approx. 2.92 kg

1. Signal Reception & Processing: Installed in 90-70 series backplane slots, supporting local or distributed I/O. The PLC CPU sends digital signals (high/low logic) via the backplane bus to indicate output states.

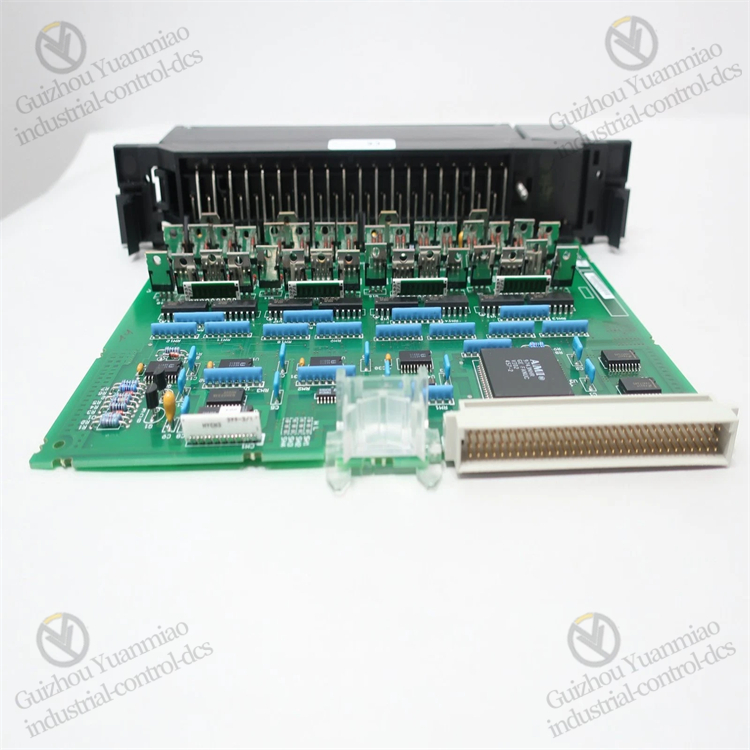

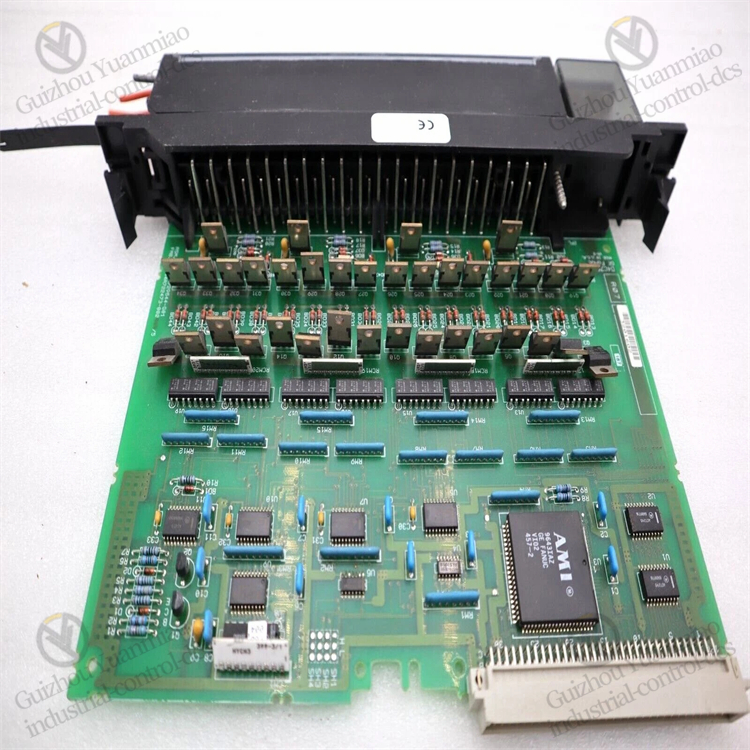

2. Output Drive: Utilizes high-power transistors/MOSFETs. A logic “1” signal activates the optocoupler, saturating the output device to connect the load to power. A logic “0” deactivates the circuit.
3. Isolation Protection: 1500V isolation safeguards against EMI and internal faults, ensuring system stability and reliability.
4. Status Indication: LED indicators reflect output states for immediate visual monitoring.
5. Load Driving Capacity: Delivers sufficient current for diverse industrial loads, supporting up to 0.5A per point and 2A per group.
6. Configurable Customization: Allows users to define input/output parameters and set output states (e.g., fail-safe modes) via PC interface, adapting to specific industrial scenarios.
