Description

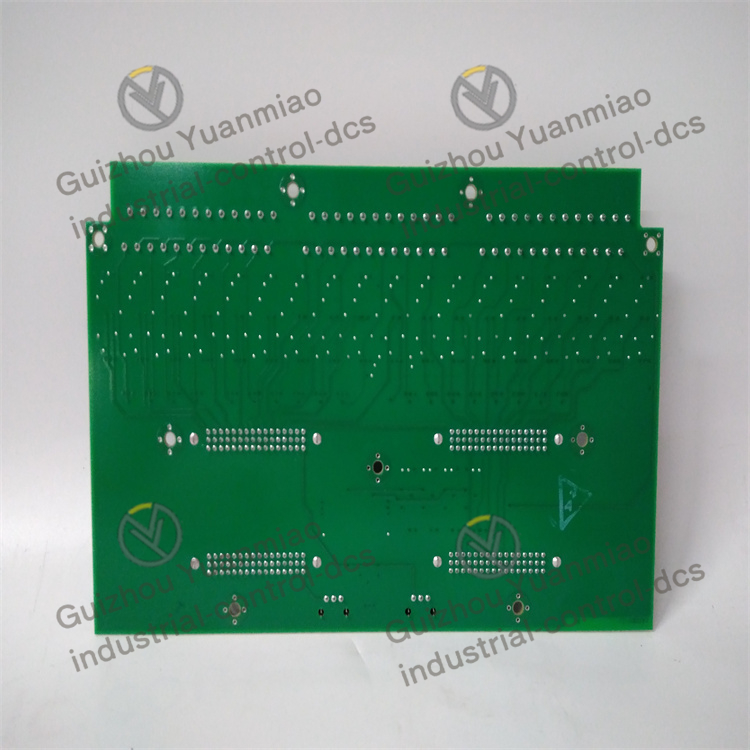

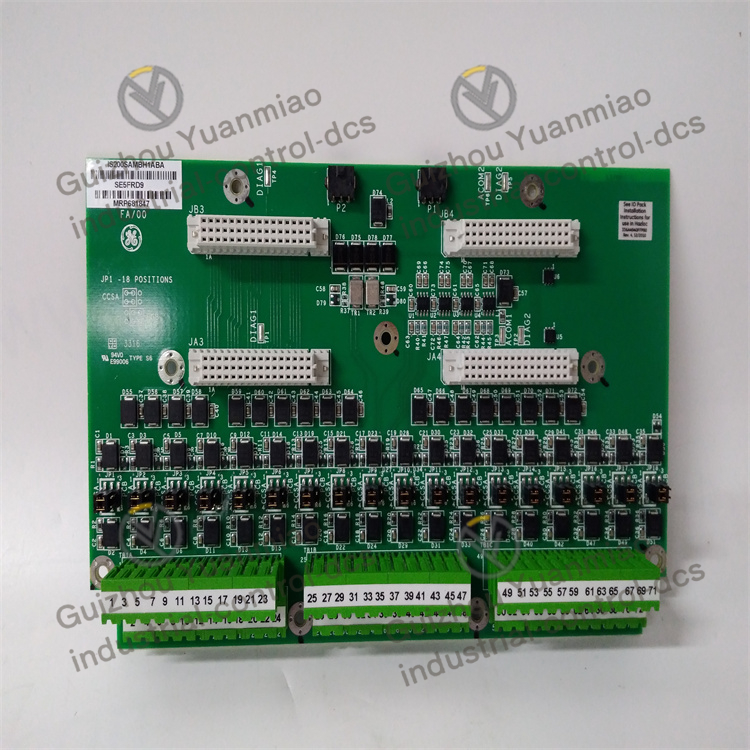

GE  IS200SAMBH1ABA  PACSystems™RX3i control system printed circuit board

Functional features: Equipped with an NXP®Cortex™-A9 dual-core processor with a clock speed of 1GHz, it features strong data processing capabilities and can serve as the foundation for various control modules within the system. It can process and analyze input signals and output corresponding control signals based on preset programs and logic to achieve precise control of industrial equipment or production processes. It supports multiple input types, such as digital input and analog input. Digital input is suitable for switch signals, while analog input is suitable for measuring changing continuous signals. It has multiple input channels and can be connected to multiple sensors, switches or other devices. It can simultaneously collect various types of signals, providing rich information sources for the control system. It usually communicates with other devices or PLCS through communication interfaces such as Ethernet and Profibus, and can be conveniently integrated with other automated equipment to achieve networked control and management of the system.

Power supply requirements: Specific power supply voltage and current are required to ensure normal operation. The specific power supply specifications will be clearly stated in the product manual. Generally, a power management circuit is designed to ensure stable operation under different power supply conditions, and it also has overvoltage and overcurrent protection functions to prevent power supply failures from damaging the circuit board.

Working environment: Designed for a specific working temperature range to adapt to different industrial environmental conditions, it can generally operate stably within a wide temperature range, typically from -20 ℃ to + 60℃ or even wider. It can also adapt to a certain humidity environment and has good anti-interference ability, capable of normal operation in industrial environments with strong electromagnetic interference.

Application fields: It is applicable to multiple industries, such as the control of automated production lines in manufacturing, the monitoring of power generation equipment in the energy industry, and the control of production processes in the chemical industry, etc. It can be used to control equipment such as motors, valves and pumps, as well as monitor and regulate process parameters such as temperature, pressure and flow rate.
