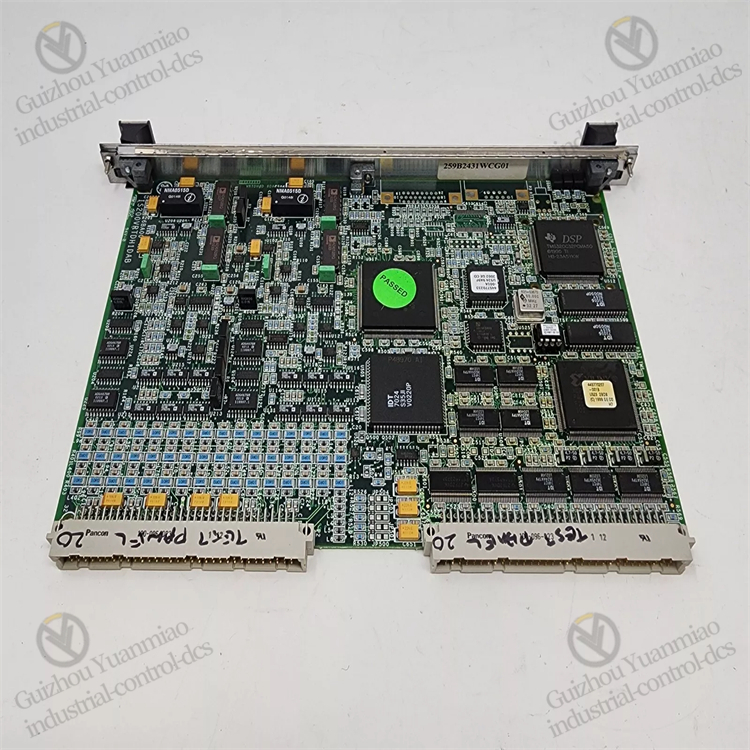

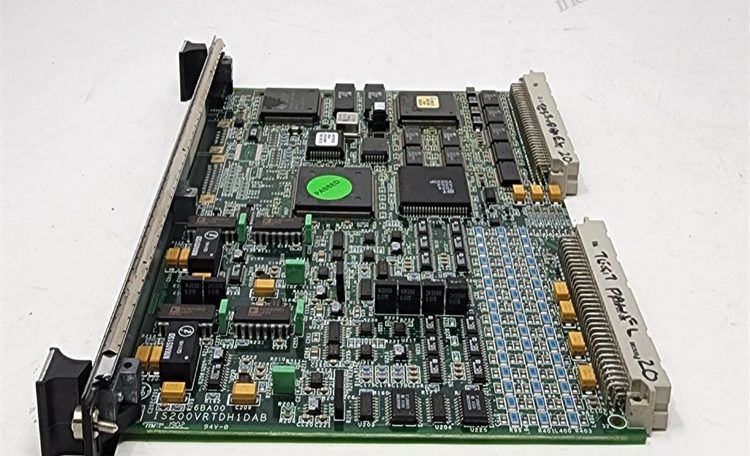

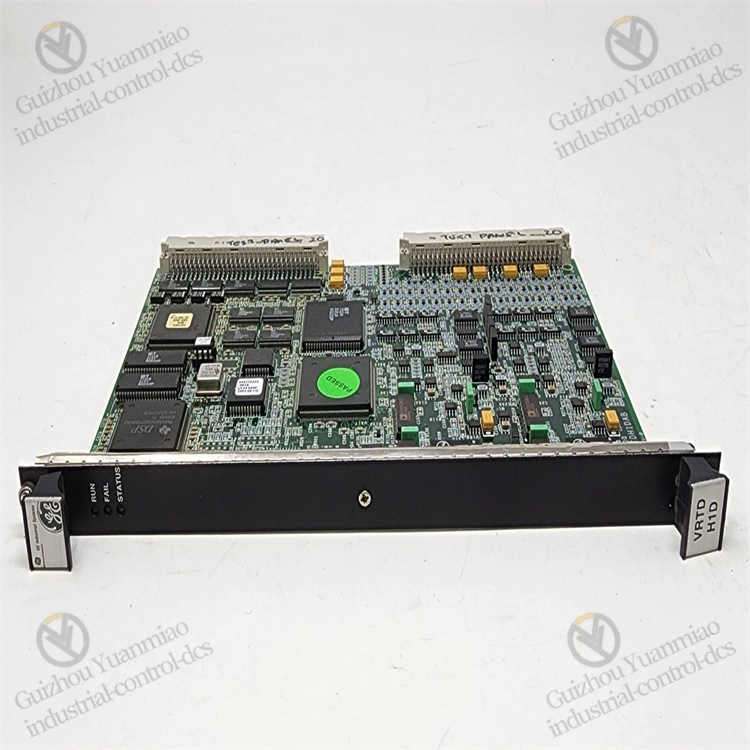

GE IS200VRTDH1D VME Bus Resistance Temperature Detector (RTD) Input Module
The IS200VRTDH1D is a high-performance VME bus Resistance Temperature Detector (RTD) input module launched by GE, which belongs to the Mark VI series. It is mainly used for temperature monitoring and control in industrial automation systems. The relevant introduction is as follows:
Basic Parameters:
- Number of Input Channels: 8 channels.
- Sensor Type: Supports RTD (such as Pt100, Pt500, etc.).
- Measurement Range: -200°C~800°C.
- Measurement Accuracy: ±0.1°C.
- Resolution: 0.01°C.
- Power Supply Voltage: 5V DC.
- Power Consumption: 2W.
- Operating Temperature Range: -40°C~85°C.
- Dimensions: 230mm×160mm×30mm.
- Weight: 200g.
Working Principle:
It connects to RTD sensors to collect resistance signals generated by temperature changes. Using an internal high-precision A/D converter, it converts the analog resistance signals into digital temperature values, which are then transmitted to a computer or other control systems for temperature data collection, analysis, and processing, thereby realizing the monitoring and control of industrial process temperatures.
It connects to RTD sensors to collect resistance signals generated by temperature changes. Using an internal high-precision A/D converter, it converts the analog resistance signals into digital temperature values, which are then transmitted to a computer or other control systems for temperature data collection, analysis, and processing, thereby realizing the monitoring and control of industrial process temperatures.
Functional Features:
- High-Precision Measurement: Adopts a high-precision A/D converter, which can accurately measure temperature with a measurement accuracy of up to ±0.1°C and a resolution of 0.01°C, ensuring the accuracy of temperature data.
- Multi-Channel Design: Supports 8 RTD sensor inputs, enabling simultaneous multi-point temperature measurement to meet the temperature monitoring needs of large-scale equipment or complex systems.
- Strong Compatibility: Supports various RTD types, such as Pt100, Pt500, etc. It can be configured with different measurement ranges according to actual application scenarios, with high flexibility.
- High Reliability: Adopts an industrial-grade design, has strong anti-interference ability, can work stably in a wide temperature environment of -40°C~85°C, and is suitable for harsh industrial environments.
- Good Usability: Provides user-friendly configuration software, facilitating users to set parameters and configure functions, reducing the difficulty of use.
Application Fields:
- Power Industry: Used for temperature monitoring of generators, transformers and other equipment, timely detecting potential faults such as equipment overheating, and ensuring the safe and stable operation of power equipment.
- Chemical Industry: Can monitor the temperature of reaction kettles, ensuring that chemical reactions proceed under appropriate temperature conditions, and preventing safety accidents caused by abnormal temperatures.
- Oil and Gas Industry: Suitable for temperature measurement of pipelines and storage tanks, helping to optimize the transportation process, preventing problems such as solidification and gasification of media due to improper temperatures, and ensuring the safe operation of pipelines.
- Metallurgical Industry: Commonly used for furnace temperature measurement, precisely controlling the temperature during the smelting process, improving the quality of metal products and reducing energy consumption.
- Food and Beverage Industry: Can be used for temperature control of ovens, dryers and other equipment, ensuring the uniformity and stability of temperature during food processing, and guaranteeing product quality.
