Description

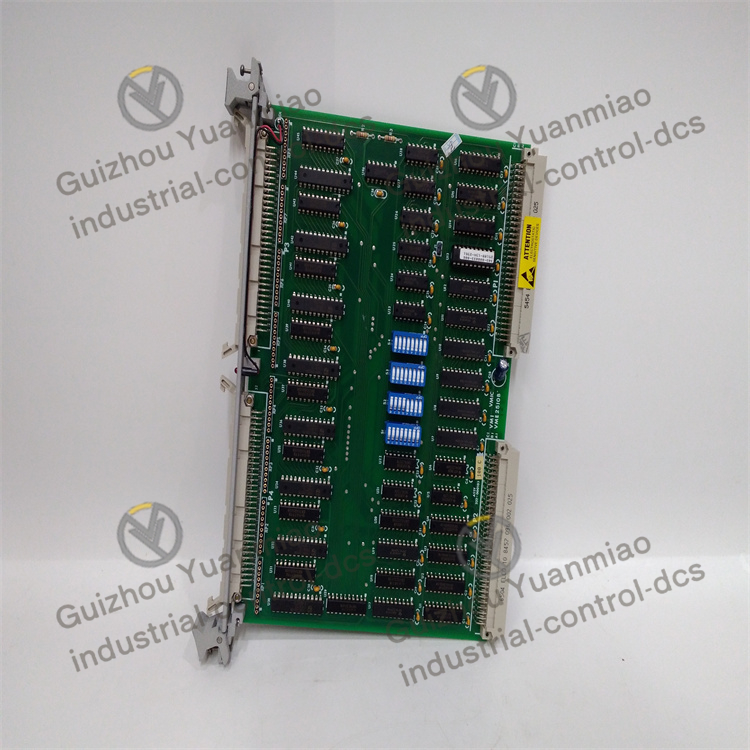

GE  VMIVME-2510B  Digital input/output board

Main characteristics
Flexible port programming: The direction of each 8-bit port can be programmed separately, facilitating users to flexibly configure input and output modes according to actual needs.
Current capacity: It has a filling current capacity of 64mA (pulling current capacity of 15mA), which can provide sufficient driving capacity for external devices.
Address decoding: Separate board address decoding for control and data registers, in combination with two sets of board address switches, can provide efficient memory address mapping for CSR and I/O addresses, facilitating address allocation and management in the system.

Data transmission mode: Supports 8-bit, 16-bit, and 32-bit data transmission, which can adapt to different data processing requirements.
Built-in testing function: Specific hardware is designed to support offline and online fault detection and isolation. It has built-in testing logic and can indicate whether there is a fault through the fault LED on the front panel, making it convenient for users to quickly locate and eliminate faults.

Interface and Compatibility

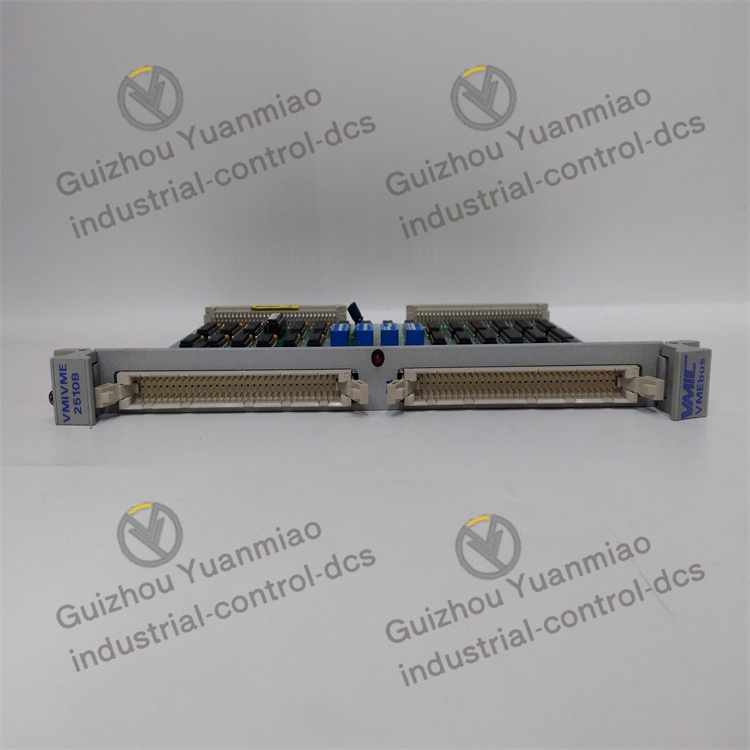

Connector type: Dual 64-pin connectors are adopted, in accordance with DIN41612 standard, featuring high reliability and stability.
Compatibility: Compliant with the VMEbus specification, it can be seamlessly connected with other VMEBUS-compatible devices and is suitable for a variety of industrial automation systems and computer networks.

Electrical and environmental parameters
Working voltage: 24VDC.
Ambient temperature: 0°C to 60°C.
Environmental humidity: 5% to 95%, non-condensing.

This module is widely used in the field of industrial automation, such as PLC programmable controller modules and DCS system cards in industries like steel mills, power plants, cement, chemical engineering, and papermaking, providing reliable digital input and output functions for industrial control systems.
