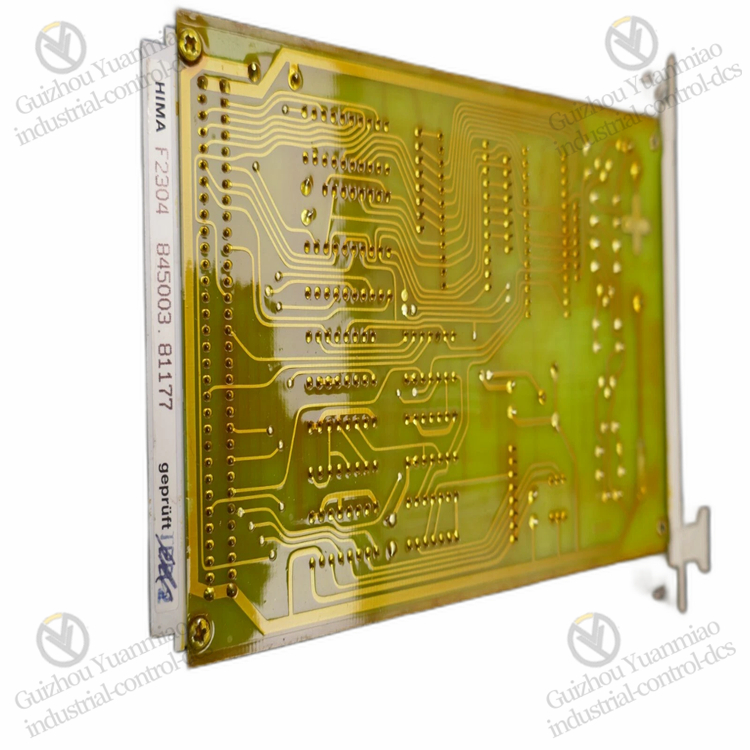

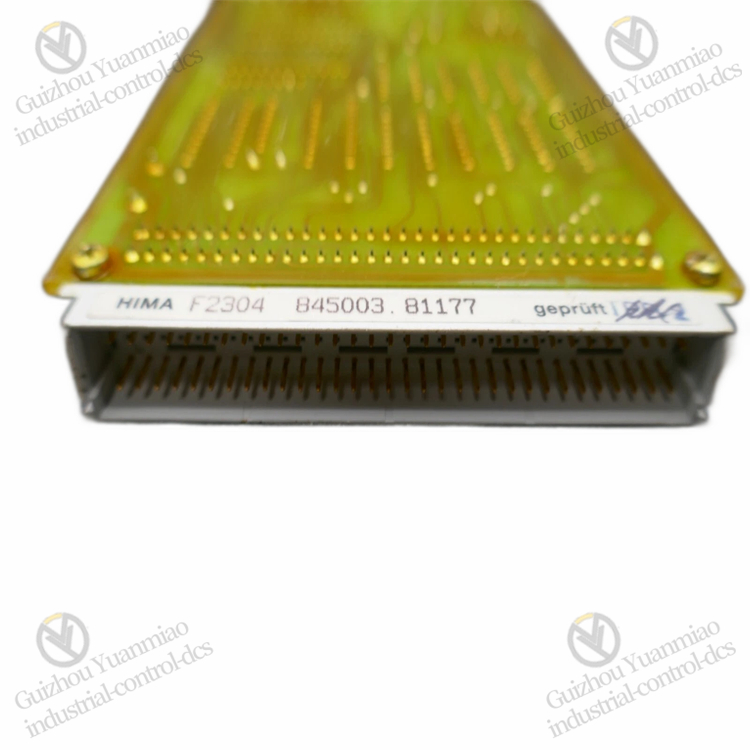

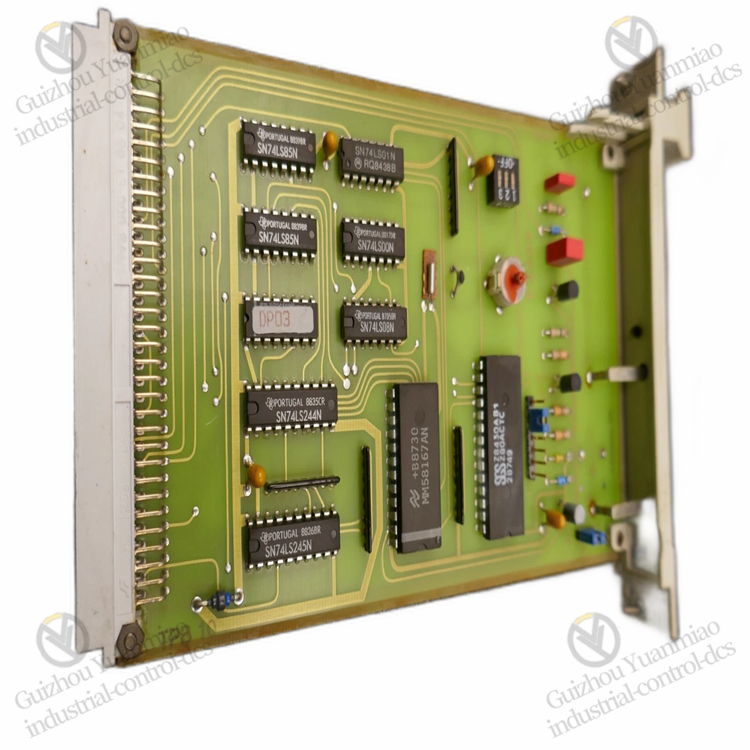

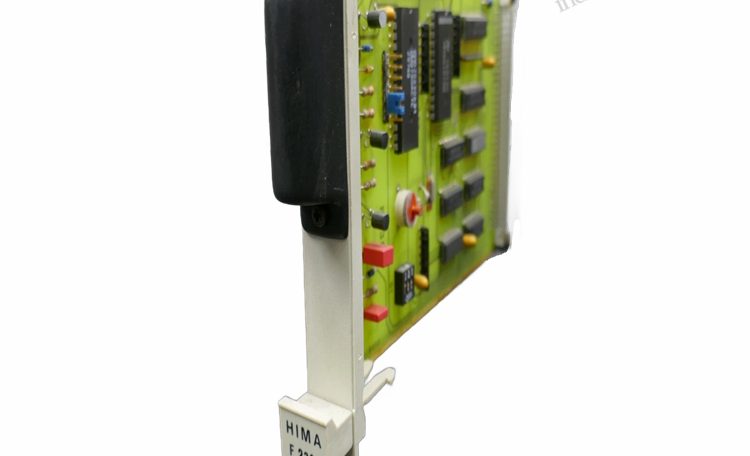

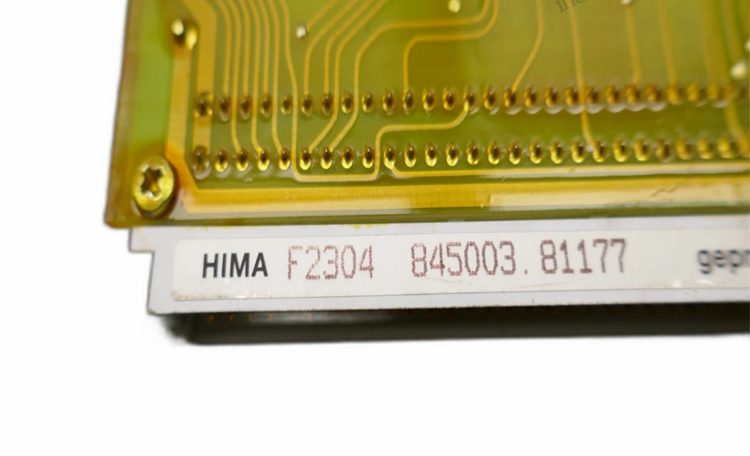

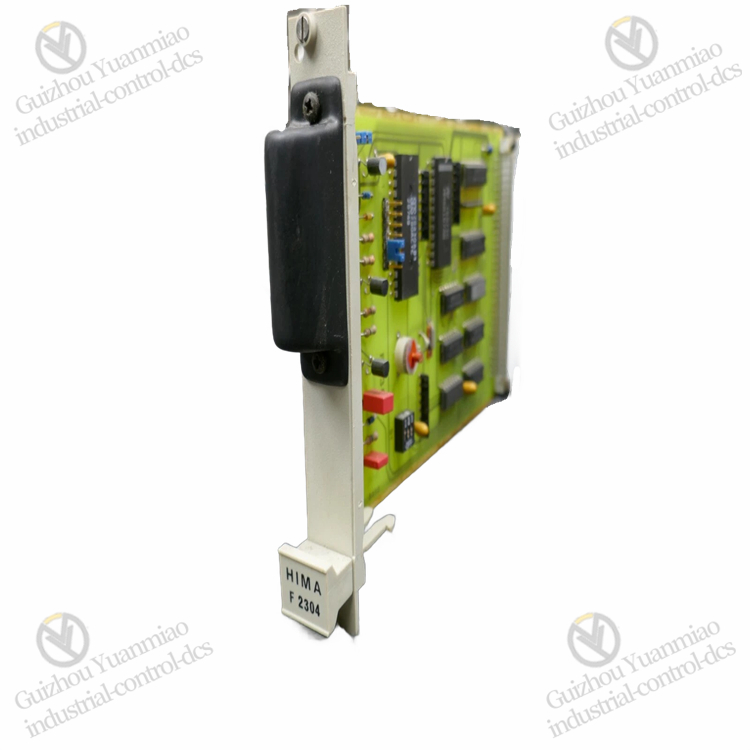

HIMA F2304 is a digital output module for safety-related industrial control systems. It is mainly used to realize the safe control of actuators, valves, relays and other equipment in industrial environments with high safety requirements, and is compatible with HIMA Himax, Himatrix and other safety controller systems. The following is a detailed description of its core features, working principle and application fields:

It includes 8 safety-related digital output channels, supporting 24V DC output. Each channel can independently control external executive devices (such as solenoid valves, contactors, alarm devices, etc.).
The output channels are equipped with short-circuit protection and overload protection functions, which can prevent module damage caused by external equipment faults (such as short circuits) and improve system reliability.

It complies with a number of international safety standards, including SIL 3 (IEC 61508/61511), EN 954-1 Category 4, and EN ISO 13849-1 PL e, and is suitable for control scenarios with extremely high safety level requirements.
It adopts safety-related hardware design to ensure the accuracy and reliability of output signals and avoid safety risks caused by misoperation or failure.

It communicates with the main controller (such as Himax, Himatrix) through a redundant system bus, and data transmission has real-time and security to ensure the reliable transmission of control commands.
It needs to rely on the main controller to operate, has no independent control capability, and mainly serves as an extension of the safety output interface, cooperating with the safety logic of the main controller to perform output operations.

It is equipped with LED indicators to display the module’s power status, the operating status of each output channel (such as normal output, fault) and communication status, facilitating quick diagnosis and maintenance.
It supports real-time monitoring of the status of output channels through the main controller, and can timely detect abnormalities such as disconnection and short circuit.

It adopts a compact design with small size, suitable for installation in industrial control cabinets, saving space.
The protection level is usually IP20 (suitable for indoor control cabinet environments), and it has anti-electromagnetic interference (EMC) capability, adapting to the complex electromagnetic environment of industrial sites.
It has a wide operating temperature range (usually -25℃ ~ +60℃) and can operate stably in harsh industrial environments.

It is powered by a 24V DC power supply and has a power reverse connection protection function to prevent module damage caused by wrong wiring.

As a safety digital output unit, the core function of the HIMA F2304 module is to receive the safety control commands issued by the main controller (such as Himax), convert the commands into digital output signals to drive the action of external executive devices, and feed back the output status to the main controller in real time:
The main controller transmits the commands corresponding to the safety control logic (such as “emergency stop” and “valve closing”) to the F2304 module through the redundant system bus;
After the module performs safety verification on the commands, it outputs 24V DC signals to external actuators (such as solenoid valves, relays) through 8 digital output channels to control the action of the equipment;
The module monitors the status of each output channel in real time (such as whether there is a short circuit, whether the output is normal) and feeds back to the main controller through LED indicators and the bus;
In case of abnormalities (such as output short circuit), the module will immediately trigger protection mechanisms (such as cutting off the output of the channel) and report the fault to the main controller to ensure system safety.

Due to its high safety and reliable output control capability, the F2304 module is mainly used in high-risk industries with strict requirements for “actuator safety control”:

It is used to control emergency shut-off valves, explosion-proof valves and other equipment of reaction kettles. When the system detects that the pressure and temperature exceed the limit, it quickly closes the valves through the output signal of F2304 to prevent material leakage or reaction out of control.
It controls the emergency stop devices on the production line, and immediately cuts off the power supply of the equipment in case of abnormalities to ensure the safety of personnel and equipment.

In oil and gas extraction platforms and oil/gas pipeline stations, it controls key equipment such as emergency shutdown valves (ESD valves) and vent valves. When abnormal pressure, leakage and other risks are detected, it quickly executes shutdown operations to avoid accidents such as explosions and fires.
It controls the start and stop of pumps, compressors and other equipment to ensure the safe and controllable oil and gas transportation process.

It is applied in the safety systems of power plants and substations to control the emergency cooling devices and isolation valves of generators and transformers. When overheating of equipment and abnormal voltage are detected, it triggers protection actions through module output signals to prevent equipment damage or large-area power outages.
It controls safety interlock devices, such as cabinet door interlocks and equipment isolation switches, to ensure the safety of operation and maintenance personnel.

In the signal systems or power workshops of subways and high-speed railways, it controls emergency braking devices, equipment isolation valves, etc. When track abnormalities and equipment failures are detected, it quickly outputs control signals to ensure the safe operation of trains.
It controls ventilation and fire-fighting equipment in machine rooms, and starts emergency control logic in case of fire or abnormalities.

In steel plants and steelworks, it controls emergency stop devices and cooling water valves of blast furnaces and rolling mills. When the furnace temperature and pressure exceed the standard, it cuts off fuel supply or turns on emergency cooling through module output signals to prevent equipment explosion or production accidents.

HIMA F2304 digital output module, with its high safety level (SIL 3), reliable output control and fault monitoring capabilities, has become a key component for implementing safety interlocks and emergency control in industrial safety control systems. Its core value lies in converting the safety logic of the main controller into reliable physical output, ensuring that protective actions are triggered quickly and accurately when risks occur. It is widely used in high-risk industries such as chemical industry, oil and gas, and electric power, providing guarantee for the safe and stable operation of production systems.
