Description

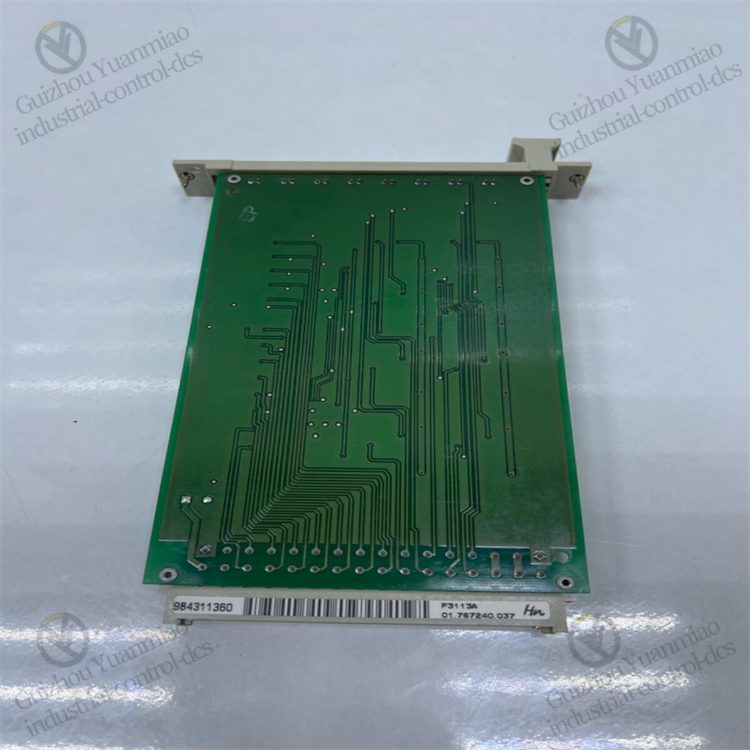

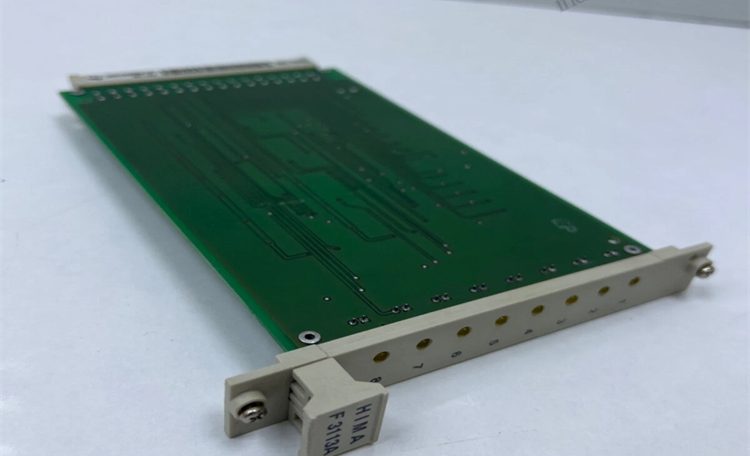

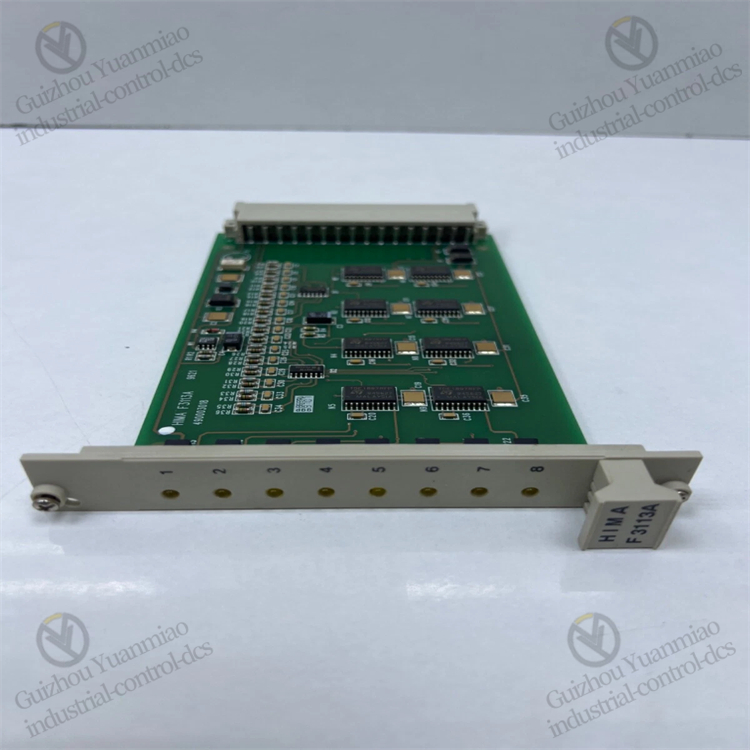

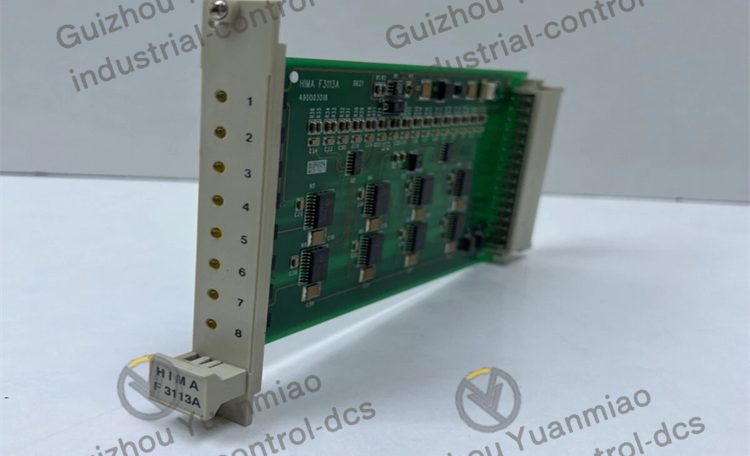

HIMA F3113A Digital Input Module
Core Features
Input Configuration
It contains 16 safety-related digital input channels, supporting 24V DC input signals, and can collect the switch status of external devices (such as limit switches, emergency stop buttons, proximity switches, relay contacts, etc.).
The input channels are designed with electrical isolation (usually isolation between channels and between channels and the system bus), preventing external signal interference or ground faults from affecting the safety of the module and the entire control system.
It supports independent channel diagnosis function, which can detect faults such as disconnection and short circuit (including short circuit to positive/negative poles), improving the reliability of signal collection.
It contains 16 safety-related digital input channels, supporting 24V DC input signals, and can collect the switch status of external devices (such as limit switches, emergency stop buttons, proximity switches, relay contacts, etc.).
The input channels are designed with electrical isolation (usually isolation between channels and between channels and the system bus), preventing external signal interference or ground faults from affecting the safety of the module and the entire control system.
It supports independent channel diagnosis function, which can detect faults such as disconnection and short circuit (including short circuit to positive/negative poles), improving the reliability of signal collection.
Safety Performance
It complies with a number of international safety standards, including SIL 3 (IEC 61508/61511), EN 954-1 Category 4, and EN ISO 13849-1 PL e, and is suitable for control scenarios with extremely high safety level requirements (such as emergency shutdown and safety interlock).
It adopts redundant design and fail-safe logic to ensure the accuracy of input signal collection and avoid signal misjudgment (such as missed or false alarms) caused by module faults.
It complies with a number of international safety standards, including SIL 3 (IEC 61508/61511), EN 954-1 Category 4, and EN ISO 13849-1 PL e, and is suitable for control scenarios with extremely high safety level requirements (such as emergency shutdown and safety interlock).
It adopts redundant design and fail-safe logic to ensure the accuracy of input signal collection and avoid signal misjudgment (such as missed or false alarms) caused by module faults.
Communication and Integration
It communicates with main controllers such as Himatrix through the system bus, and data transmission has real-time and redundant characteristics, ensuring that input signals are transmitted to the main controller quickly and reliably.
As a safety input expansion module, it needs to rely on the main controller for operation and has no independent processing capability. Its main function is to convert external digital signals into digital data recognizable by the safety system for the main controller to perform safety logic operations.
It communicates with main controllers such as Himatrix through the system bus, and data transmission has real-time and redundant characteristics, ensuring that input signals are transmitted to the main controller quickly and reliably.
As a safety input expansion module, it needs to rely on the main controller for operation and has no independent processing capability. Its main function is to convert external digital signals into digital data recognizable by the safety system for the main controller to perform safety logic operations.
Status Monitoring and Indication
It is equipped with LED indicators to display the module’s power status, communication status, and signal status of each input channel (such as normal input, fault), facilitating on-site quick troubleshooting.
It supports real-time monitoring of input channel diagnosis information (such as disconnection, short circuit) through the main controller, enabling timely detection of external equipment or wiring faults.
It is equipped with LED indicators to display the module’s power status, communication status, and signal status of each input channel (such as normal input, fault), facilitating on-site quick troubleshooting.
It supports real-time monitoring of input channel diagnosis information (such as disconnection, short circuit) through the main controller, enabling timely detection of external equipment or wiring faults.
Structure and Environmental Adaptability
It adopts a modular design with a compact size, suitable for installation on the DIN rail of industrial control cabinets, saving space.
The protection level is usually IP20 (suitable for indoor control cabinet environments), and it has strong anti-electromagnetic interference (EMC) capability, adapting to the complex electromagnetic environment of industrial sites.
It has a wide operating temperature range (generally -25℃ ~ +60℃) and can operate stably in harsh industrial environments such as high and low temperatures and vibrations.
It adopts a modular design with a compact size, suitable for installation on the DIN rail of industrial control cabinets, saving space.
The protection level is usually IP20 (suitable for indoor control cabinet environments), and it has strong anti-electromagnetic interference (EMC) capability, adapting to the complex electromagnetic environment of industrial sites.
It has a wide operating temperature range (generally -25℃ ~ +60℃) and can operate stably in harsh industrial environments such as high and low temperatures and vibrations.
Power Supply Requirements
It is powered by a 24V DC power supply and has a power reverse connection protection function to prevent module damage caused by wrong wiring.
It is powered by a 24V DC power supply and has a power reverse connection protection function to prevent module damage caused by wrong wiring.
Working Principle
As a safety digital input unit, the core function of the HIMA F3113A module is to collect digital signals (such as switch on/off) from external devices, and after safety verification and isolation processing, transmit the signal status to the main controller (such as Himatrix) for its safety logic judgment:
Digital signals (24V DC on/off) from external devices (such as emergency stop buttons, limit switches) are connected to the 16 input channels of the module;
The module performs electrical isolation, filtering, and fault diagnosis (such as detecting short circuits or disconnections) on the input signals to ensure the accuracy and safety of the signals;
The processed signal status is transmitted to the main controller in real-time through the system bus;
The main controller executes corresponding control decisions based on the received input signals combined with preset safety logic (such as emergency shutdown logic);
The module feeds back its own power supply, communication, and status of each channel in real-time through LED indicators, facilitating maintenance personnel to quickly locate faults.
As a safety digital input unit, the core function of the HIMA F3113A module is to collect digital signals (such as switch on/off) from external devices, and after safety verification and isolation processing, transmit the signal status to the main controller (such as Himatrix) for its safety logic judgment:
Digital signals (24V DC on/off) from external devices (such as emergency stop buttons, limit switches) are connected to the 16 input channels of the module;
The module performs electrical isolation, filtering, and fault diagnosis (such as detecting short circuits or disconnections) on the input signals to ensure the accuracy and safety of the signals;
The processed signal status is transmitted to the main controller in real-time through the system bus;
The main controller executes corresponding control decisions based on the received input signals combined with preset safety logic (such as emergency shutdown logic);
The module feeds back its own power supply, communication, and status of each channel in real-time through LED indicators, facilitating maintenance personnel to quickly locate faults.
Application Fields
Due to its high safety and reliable signal collection capability, the F3113A module is widely used in high-risk industries with extremely high requirements for input signal reliability:
Chemical and pharmaceutical industry: Collecting signals from pressure switches, temperature switches, emergency stop buttons of reaction kettles, etc., to provide input for the safety interlock system, ensuring that emergency protection actions (such as closing valves) are triggered under abnormal conditions.
Oil and gas industry: Used for safety monitoring of oil and gas pipelines and storage tank areas, collecting switch signals from leak detectors, pressure transmitters, status of emergency shutdown buttons, etc., to provide key input signals for ESD (Emergency Shutdown System).
Power industry: In power plants and substations, collecting status switch signals of generators and transformers (such as over-temperature alarms, cabinet door interlock status) as input to the safety control system to ensure the safety of equipment and personnel.
Rail transit industry: Collecting safety switch signals of train tracks, emergency buttons in machine rooms, equipment operation status signals, etc., to provide safe input for signal systems or power monitoring systems, ensuring the safe operation of trains.
Metallurgy and heavy manufacturing industry: In steel plants and steelworks, collecting limit switch signals and safety door status signals of blast furnaces and rolling mills, participating in the safety interlock control of equipment to prevent accidents caused by misoperation or equipment failures.
Due to its high safety and reliable signal collection capability, the F3113A module is widely used in high-risk industries with extremely high requirements for input signal reliability:
Chemical and pharmaceutical industry: Collecting signals from pressure switches, temperature switches, emergency stop buttons of reaction kettles, etc., to provide input for the safety interlock system, ensuring that emergency protection actions (such as closing valves) are triggered under abnormal conditions.
Oil and gas industry: Used for safety monitoring of oil and gas pipelines and storage tank areas, collecting switch signals from leak detectors, pressure transmitters, status of emergency shutdown buttons, etc., to provide key input signals for ESD (Emergency Shutdown System).
Power industry: In power plants and substations, collecting status switch signals of generators and transformers (such as over-temperature alarms, cabinet door interlock status) as input to the safety control system to ensure the safety of equipment and personnel.
Rail transit industry: Collecting safety switch signals of train tracks, emergency buttons in machine rooms, equipment operation status signals, etc., to provide safe input for signal systems or power monitoring systems, ensuring the safe operation of trains.
Metallurgy and heavy manufacturing industry: In steel plants and steelworks, collecting limit switch signals and safety door status signals of blast furnaces and rolling mills, participating in the safety interlock control of equipment to prevent accidents caused by misoperation or equipment failures.
Summary
HIMA F3113A is a 16-channel digital input module with a high safety level (SIL 3). Its core value lies in providing reliable external digital signal collection functions for safety control systems. Through isolation design, fault diagnosis, and safe communication, it ensures the accuracy and safety of input signals. As a key expansion module for safety controllers such as Himatrix, it is indispensable in safety interlock systems of high-risk industries such as chemical industry, oil and gas, and electric power, providing basic guarantee for the safe and stable operation of industrial production.
HIMA F3113A is a 16-channel digital input module with a high safety level (SIL 3). Its core value lies in providing reliable external digital signal collection functions for safety control systems. Through isolation design, fault diagnosis, and safe communication, it ensures the accuracy and safety of input signals. As a key expansion module for safety controllers such as Himatrix, it is indispensable in safety interlock systems of high-risk industries such as chemical industry, oil and gas, and electric power, providing basic guarantee for the safe and stable operation of industrial production.
